Boyo VTM3601 3.5 inch LCD Back Up Monitor with suction cup mount

Boyo VTM3601 3.5 inch LCD Back Up Monitor with suction cup mount

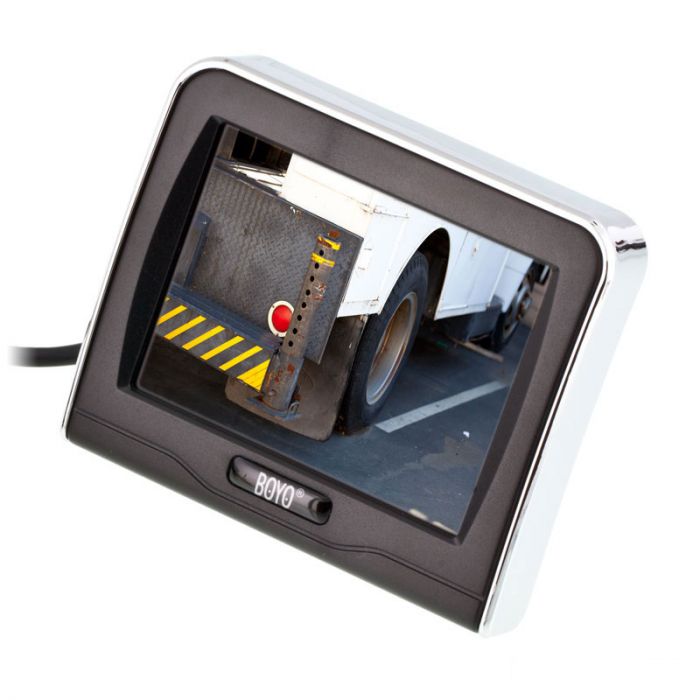

Boyo VTM3601 3.5 inch Backup monitor with suction cup mount - Front right

More Views

Item sku:VTM3601
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTM3601 Product Highlights

  • 3.5 inch TFT LCD monitor with multiple mounting options
  • Dual Video Inputs
  • Reverse Triggered Input
  • Suction Cup Included
  • Pedestal mount with adhesive base for easy top dash mounting
  • Grid lines function allowing you to add parking grid lines to cameras that do not have it

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit includes: 3.5 inch back up monitor, Wiring harness, Suction cup mount, Suction cup adapter, and Instruction manual

The Boyo VTM3601 back up monitor is just like a portable navigation, it sits on the top of the dash and has two video inputs for front and back cameras. The monitor can be wired to automatically turn on as the vehicle is placed in reverse and switches to the reverse camera. The VTM3601 can also be mounted to the windshield in any vehicle with the included suction cup mount and makes adding a reverse camera to a vehicle very easy.



Boyo VTM3601 3.5 inch LCD Back Up Monitor with suction cup mount features:
  • 3.5 inch TFT LCD monitor with multiple mounting options
  • Monitor can be dash mounted with the integrated stand or the stand can be removed and the suction cup mount installed
  • Reverse trigger input for automatic turn on as vehicle is placed in reverse
  • 2 Video inputs for front camera and rear camera
  • Pedestal mount with adhesive base for easy top dash mounting
  • Includes suction cup mount that can be used as a cell phone mount if not used for the monitor
  • Grid lines function allowing you to add parking grid lines to cameras that do not have it
  • Image flip function - allows you to reverse the image on cameras that are not reverse image
  • Display Pixel: 320 x 240
  • Display Format: 4:3 Aspect ratio
  • Video System: NTSC
  • Input Voltage: 9Vdc - 16Vdc
  • Input Signal: Composite video signal
  • Operating Temperature: -4 F to 158 F
  • Dimensions: 3-3/4" (W) x 3-1/4" (H) x 3/4" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTM3601
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 320 x 240
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
NTSC/PAL NTSC only
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Housing material Plastic
Slide track on back No
Mounting thread for stand mount No
Stand Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Yes, reverse image flip
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 volt
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control No
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code 736211913180

Write Your Own Review

You're reviewing: Boyo VTM3601 3.5 inch LCD Back Up Monitor with suction cup mount

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Ian Larson on Thursday, July 16, 2015

Question:

Does the screen's reverse image function persist across resets, or does it need to be set each time the screen powers on?

Answers:

  • Posted by Mike Yang on Thursday, July 16, 2015
    The Boyo VTM3601 3.5 inch LCD Back Up Monitor with suction cup mount does not need to be set each time it is powered on. The screen's reverse image function will persist.
