RV Back Up System - Boyo VTM7000 7 inch TFT LCD Monitor with Stand plus Boyo VTB201 Night Vision Camera

RV Back Up System - Boyo VTM7000 7 inch TFT LCD Monitor with Stand plus Boyo VTB201 Night Vision Camera

RV Back Up System - Boyo VTM7000 7 inch TFT LCD Monitor with Stand plus Boyo VTB201 Night Vision Camera

More Views

Item sku:47511
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTM7000-VTB201 Product Highlights

  • 7" LCD Commercial Grade Monitor
  • Built in Speaker
  • Heavy Duty Camera
  • 60 Ft Cable Included

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

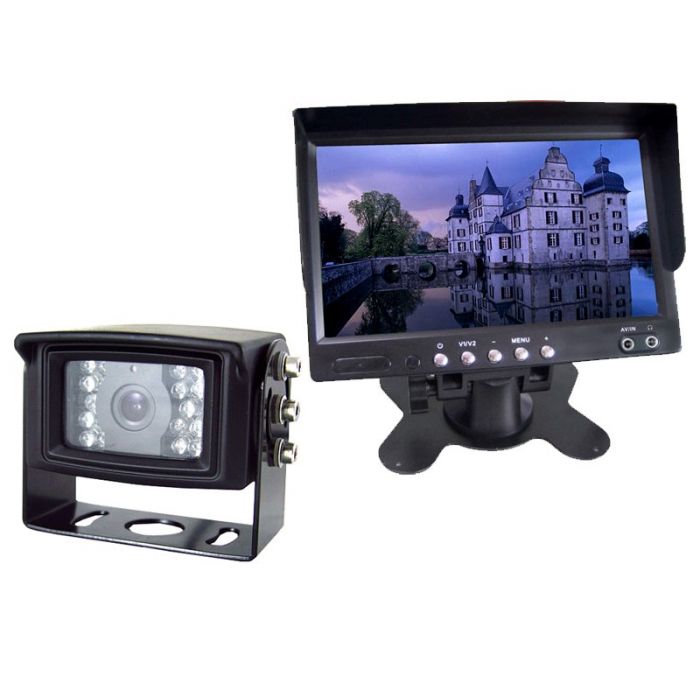

RV & Commercial Back Up System Combo Package
- Boyo (Vision Tech) VTM7000 Universal 7 inch TFT LCD Monitor with Stand & Sunshade
- Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera


Unit includes: Connectors

Boyo (Vision Tech) VTM7000 7 inch TFT LCD Monitor with Stand and Sunshade features:
  • 7" Security TFT Monitor with Stand
  • Easy to Install
  • Remote Controller
  • OSD Menu
  • 2 Video/Audio Inputs
  • Automatic reverse trigger
  • Brightness Control
  • Low power consumption
  • Built In Speaker

  • Model: VTM7000
  • Device: Card Slot
  • Screen size: 7" color TFT
  • Operation Temperature: -4 degrees F ~ 149 degrees F ( -20 degrees C ~ + 65 degrees C )
  • Humidity: 90% (Max)
  • Power Supply: DC 12V
  • Resolution: 1440(W) x 234(H)
  • Video System: PAL/NTSC
  • Input: Dual Video/Audio Input
  • Way of Control: Push button / Remote controller

  • Product Manual


Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual

Boyo VTB201 Compact Night Vision Bracket Mount Type Camera
  • Weatherproof and water resistant
  • Image device: 1/3" SHARP CCD
  • Mirror/ Normal image switch
  • 360 deg. adjustable mounting angle
  • Integrated microphone
  • Minimum illumination: 0 Lux (Infrared lamps on)
  • Nightvision distance: approx 8m (6 infrared lights)
  • Wider viewing angle up tp 120 degrees
  • Day/ Night sensor for automatic adjustment
  • Image device: 1/3" SHARP SENSOR CCD
  • TV System: NTSC
  • Effective pixels: 512 x 492 pixels
  • Sensing area: 4.9mm x 3.7mm
  • Sync. system: Internal
  • Resolution: 420 TV lines
  • Minimum illumination: 0 Lux
  • Microphone: Yes
  • Video output: 1.0vp-p, 75 Ohm
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60 - 12ยต
  • Current consumption: Max. 250mA
  • BLC: Auto
  • Power supply: DC12V
  • Operating Temp: -4 degrees F - 142 degrees F ( -20 degrees C - + 70 degrees C )
  • Storage Temp: -20 degrees F - 152 degrees F ( -40 degrees C - + 80 degrees C )
  • Humidity: Within 95% RH
  • Lens: f=2.8mm / F=2.0
  • Lens Angle: 120 degrees

  • Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTM7000-VTB201
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display No
LCD Screen Brightness No
LCD back light type No
Auto Dimming No
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs 2 Audio Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type No
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image No
Camera Sensor type No
Camera diameter No
Viewing Angle No
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection No
Battery Powered No
Case included No
Connector Type No
Wireless Transmission No
Color Grey
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
