DISCONTINUED ITEM - NOT AVAILABLE - ASK FOR SUBSTITUTE PRODUCT
Unit includes: Remote Control

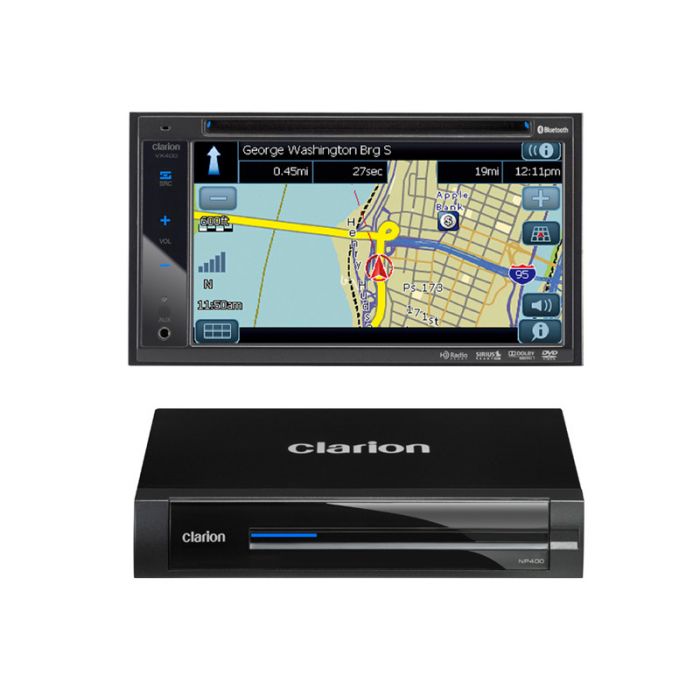

Clarion VXNAVI Double DIN In Dash VX400 6.5 inch DVD Multimedia LCD Monitor with Built In Bluetooth and NP400 Add On GPS Navigation
Double Din 6.5" Touch Panel Control
NP400 Navigation Control with Touch Panel
OEM Steering Wheel Remote Ready
Compatible with Sirius Satellite Radio
Compatible with iPod / iPhone via USB
HD Radio Ready
NP400 Direct Connection
36 FM / 12 AM
Front / Rear AUX Input
Built-in Bluetooth Hands-free Calling
With Bluetooth built-in, you can wirelessly connect your Bluetooth capable mobile phone to listen to calls through your car’s audio system. HFP/OPP/A2DP/AVRCP protocols are supported.
Superior iPod and iPhone Connectivity
USB connection* enables complete control of your iPod including video playback.
Also “Works with iPhone” certified to bring its communication and entertainment capabilities into your car.
Please visit the Clarion website for iPod models that are compatible with the VZ400.
Playback of iPod Video requires the optional cable CCA723/748.
HD Radio Ready with iTunes Tagging
Connecting the THD400 lets you enjoy listening to digitally broadcast radio programs with all their superior quality and helpful information. This includes iTunes Tagging capability, so if you hear a song on the radio that you like, you can tag it for later downloading from the iTunes Store. Save time finding and accumulating the tunes you want.
Sirius Direct Connect Ready
Connect to any Sirius Direct Connect Satellite Radio receiver without any need for an interface box — and enjoy over 130 channels of music, news, talk shows, sports and traffic information with digital quality sound throughout the U.S.A. and Canada.
2 AV AUX Inputs / CCD Input
VX400 is equipped with two RCA jacks for AV AUX input. In addition to being able to hook-up an external video source for viewing in your car, the inputs also accept video signals from Clarion’s rear vision CCD camera which lets you see the area behind your car for safer driving and parking.
Touch Panel Controlled GUI
The GUI (Graphical User Interface) shows large icons that are highly visible and easily recognizable at a glance. And thanks to the touch panel screen, accessing each function is as intuitive as touching its icon. This very straightforward system lets the driver keep his attention on the road, and enables front seat passengers to use any desired function without the need to “learn” anything. What’s more, since the vast majority of functions are controllable from the touch panel, there are only 3 physical buttons on the unit for the most basic and commonly-used functions.
Navigation Touch Panel Operation
The NP400 hide-away navigation system can be connected to the VX400 directly and controlled through its touch panel. So with this multimedia station, you can upgrade to a car navigation system at any time. Count on voice guidance messages and high-resolution map displays to get you safely to your destination.
6ch/2V RCA Output with Subwoofer Control
With 3 sets of RCA outputs, you are free to add external power amplifiers to create a more powerful, sophisticated audio system. Also, independent volume control is enabled for the subwoofer so you can adjust the level of bass output to your liking at any time, regardless of the output level of the other channels.
Low-Pass Filter for Subwoofer
Switching on the Low-Pass Filter (LPF) will send only the low frequency range through specified outputs to ensure superb performance with a connected subwoofer. A must if you have or plan to add a subwoofer to your system.
VX400 Screen Size: 6.5” wide type
Resolution: 1200 x 234 (RGB)
VZ400 Screen Size: 7” wide type
Resolution: 1440x234 (RGB)
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 8 dBuV
50dB Quieting Sensitivity: 14 dBuV
Alternate Channel Selectivity: 70 dB
Stereo Separation: 25 dB (1 kHz)
Frequency Response: 30 Hz to 15kHz
Frequency Range: 530 kHz to 1710 kHz
Usable Sensitivity: 28 dBuV
DVD Player System
Digital Versatile Disc System with CDDA capable
Usable discs: DVD video disc, Compact disc
Frequency Response: 20 Hz to 20 kHz
Sound/Noise Ratio: 95 dbA (1W Ref)
Dynamic Range: 95 dB (1 kHz)
Video system: NTSC
Audio input voltage: 300 uVrus (low)
Audio input voltage: 600 uVrus (med)
Audio input voltage: 950 uVrus (high)
Video input voltage: 1.0Vp-p @75
Audio output impedance: 10k
Video output voltage: 1.0Vp-p @75
Power source voltage: 14.4 V DC (10.8 to 15.6 V allowable)
The Clarion NP400 Hide-Away Navigation system is an add-on navigation system for the Clarion VZ400 and VX400 in-dash multimedia headunits. The NP400 connects to the Clarion VZ400 or VX400 using a single proprietary cabled (included).
Compatible with VZ400/VX400
Touch Screen Operation (VZ400/VX400)
12 Million Built-in POIs
Map Coverage: (US 50 States and Canada)
Audible Voice Commands in 3 Different Languages (English / French / Spanish)
4GB Flash Memory (Map Data Pre-loaded)
USB port for updates
SiRF GPS lll Module with 20-channel GPS Receiver
Automatic Route Recalculation
Turn by Turn Voice Prompts and Text To Speech for Street Announcements
3 Display Mode: 3D/2D Split Mode
Add-on/Hide-away navigation module
10 feet Connection cable (with a proprietary multi-pin connector on each end)
Magnetic GPS antenna (with attached 16' cable terminated by an SMB connector)
4 Large machine screws
4 Small machine screws
Touch Panel Operation
Smart touch panel controls enable you to access information at the touch of a fingertip. Layouts are designed to enable instantaneous display of desired information, while detailed information can easily be called up with a light touch.
12 Million POIs Preloaded
Search for somewhere to grab a bite or fill your tank? Let NP400 guide you to your desired destination by accessing its 12 million Points Of Interest (POI) database. National Parks, Gas Stations, and Restaurants with a simple touch and select away. Just select the POI guide, pick your destination and watch NP400 do its magic and display your route in precise detail.
Map Coverage of Entire U.S. and Canada
Coverage where you want to go, and beyond. The internal memory contains map data for all 50 of the United States including Alaska and Hawaii, as well as Canada.
SiRF GPS 20-channel Receiver Module
At the heart of the car navigation system is a SiRF GPS module with 20-channel GPS receiver to assure fast acquisition and accurate tracking of your vehicle’s current location.
Flash Memory for ruggedness and speed
All navigation data is stored in the internal flash memory. No disc drives or pickups are involved, so access to data is instantaneous. Maps are therefore rendered faster and scrolling is smoother. The absence of mechanical moving parts also provides higher resistance to shocks and vibrations for increased ruggedness.
3D Display Mode
Comprehensive digital elevation model data is used to draw height and depth features for a realistic landscape at all levels of zoom. While driving, hills and mountains are rendered in 3D to better represent your real world driving environment.
RCA Pre-amp Audio outputs
LCD Screen Size
5 inch - 6 inch
LCD Screen Brightness
Native Screen Resolution
1200 x 234
Front camera input
Back up camera input
Audio Video inputs
2 Audio Video Inputs
Front mounted auxiliary input
RCA audio/video input
Audio Video Outputs
1 Audio/Video output
Built-in DVD Player
Dual Zone Control
iPod Audio Connection
Yes, via USB
iPod Video Connection
Yes, via USB
SD Card input
Built in Bluetooth
Built in Bluetooth
NFC (Near Field Communication)
Radio Data Service - RDS
Text to Speech
Points of Interest
Steering Wheel Control Input
Yes, Built in control
Wireless Remote Control
