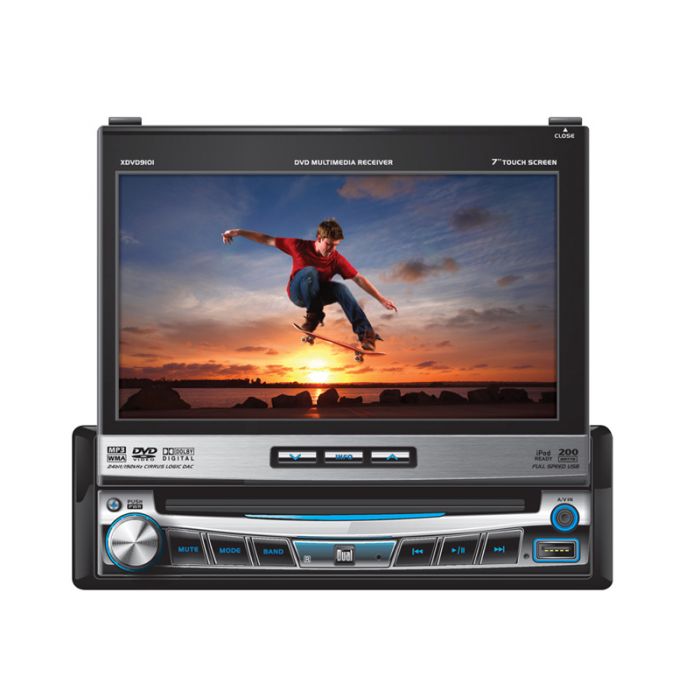

DISCONTINUED - Dual XDVD9101 7 Inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPod Control

DISCONTINUED - Dual XDVD9101 7 Inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPod Control

DISCONTINUED - Dual XDVD9101 7 Inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPod Control

More Views

Dual
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Dual XDVD9101 Product Highlights

DISCONTINUED - Dual XDVD9101 7 Inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPod Control
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Remote control

DISCONTINUED - Dual XDVD9101 7 Inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPod Control
  • iPod
  • Front panel direct connection (USB/3.5mm)
  • Displays artist and song title information
  • High speed browse/search by music information
  • Charges iPod when connected
  • iPod cable included

  • General Features
  • 1.0 DIN chassis
  • Import ISO/DIN mountable
  • Electronic motorized face
  • Internal cooling fan
  • 7" TFT LCD touch screen monitor
  • 16:9 Widescreen format
  • Integrated iPod control
  • Front panel USB input
  • Front panel 3.5mm A/V input
  • 1 Audio/video input (RCA)
  • 1 Composite video output (RCA)
  • 1 Rear camera input (RCA)
  • F/R/S preamp outputs
  • Electronic volume, bass, treble, balance, fader
  • Rotary encoder control
  • Black/white secondary LCD
  • Infrared remote control
  • Mute
  • Loudness

  • Multimedia
  • DVD-R/RW/DVD+R/RW compatible
  • Direct chapter/title/time access
  • ESP buffer
  • On screen display
  • Subtitle/angle
  • Slow/step/zoom
  • CD-R/CD-RW compatible
  • MP3/WMA encoded CD/DVD playbackv
  • Direct track access
  • Last position memory
  • Random/repeat/play/pause
  • High-speed track search
  • On screen display
  • ESP buffer
  • Subtitle
  • Angle
  • Zoom

  • Receiver
  • US/European frequency spacing
  • 36 Station presets (24FM/12AM)
  • Auto station store
  • Auto stereo/mono

  • DVD Player Specifications
  • Frequency response: 10Hz-20kHz
  • Channel separation @ 1kHz: >65dB
  • D/A converter: 24 Bit

  • FM Tuner Specifications
  • Tuning range: 87.5MHz-107.9MHz
  • Usable sensitivity: 8.5dBf
  • 50dB quieting sensitivity: 10dBf
  • Stereo separation @ 1kHz: 40dB
  • Frequency response: 30Hz-13kHz

  • AM Tuner Specifications
  • Tuning range: 530kHz-1710kHz
  • Usable sensitivity: 22uV
  • Frequency response: 30Hz-2.2kHz

  • Monitor Specifications
  • Panel size: 7” (177.8 mm) diagonal measurement
  • View angle (up/down/left/right): 30/60/60/60
  • Resolution: 480 W x 234 H
  • Brightness (cd/m2): 350
  • Contrast ratio: 350:1
  • Elements: 336,960

  • General Specifications
  • Operating voltage: 11-16 VDC, negative ground
  • Speaker output impedance: 4~8 ohms
  • Line output voltage: 2 Volts
  • Line output impedance: 200 ohms
  • Chassis dimensions: 7" x 7" x 2" (178 x 178 x 51 mm)

  • XDVD9101 Instruction Manual
  • Video

Technical Specifications

Manufacturer Dual
Part Number XDVD9101
Chassis Size Single DIN
Faceplate features No
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage No
LCD Screen Size 7 inch - 8 inch
Illumination color N/A
LCD Screen Brightness 350 Nit
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 480 x 234
Front camera input N/A
Back up camera input N/A
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input RCA audio/video input
Audio Video Outputs No
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock No
Dual Zone Control No
iPod Audio Connection No
iPod Video Connection No
SD Card input Yes, SD Card
USB input Yes
HDMI input N/A
HDMI output N/A
Pandora Streaming N/A
Smartphone Compatible N/A
Smartphone Technology N/A
NTSC/PAL NTSC and PAL
Audio Formats N/A
Video Formats N/A
MP3 Playback Yes
Built in Bluetooth No
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS No
Satellite Radio No
Navigation No
GPS Maps N/A
Text to Speech N/A
Traffic Tuner N/A
Points of Interest N/A
Integration Module N/A
Steering Wheel Control Input No
Wireless Remote Control Yes
TV Tuner No
VGA input N/A
Operation Voltage N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 827204102244
