Sony XM-GS400 700 Watt Class D 4-Channel Amplifier

Sony XM-GS400 700 Watt Class D 4-Channel Amplifier

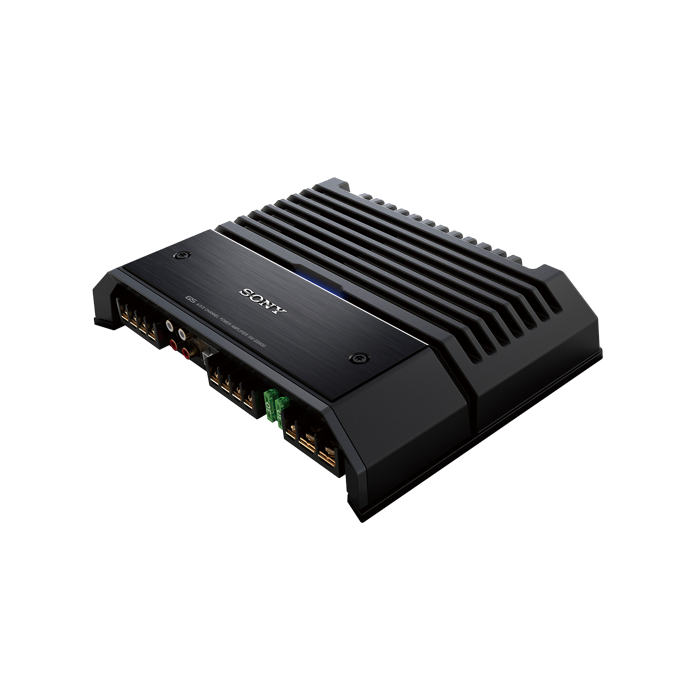

Sony XM-GS400 4-Channel Car Amplifier - Main

More Views

Item sku:XM-GS400
Sony

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Sony XM-GS400 Product Highlights

  • 700 Watts Max Power
  • 4-Channel Amplifier
  • Super compact design
  • Pulse Width Modulated MOSFET Power supply
  • Class D Design Offers Efficiency and High-Quality Sound
  • Speaker level inputs with auto turn on

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: 4-Channel power amplifier, Mounting hardware, and Instruction manual

Sony XM-GS400 700 Watt Class D 4-Channel Amplifier
    Features:
  • 700 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Compact Design for Versatile Installation Options without compromising sound quality
  • Class-D design for excellent sound quality and excellent efficiency
  • CEA-2006 Compliant amplifier for true power output
  • 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
  • Removable top cover to reveal all controls
  • Variable Low Pass filters allow you to adjust the playback frequencies from 50Hz to 300Hz at 12dB per octave
  • Variable High Pass filters allow you to adjust the playback frequencies from 50Hz to 300Hz at 12dB per octave
  • Speaker level inputs allow you to connect this amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
  • Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
  • Bridge mode allows to run this as a three channel or two channel amplifier
  • 4 channel RCA inputs accepts up to 6 volt input signals
  • 4 channel speaker level inputs accepts up to 12 volt input signals
  • Dual Bass boost controls: 0-10dB at 40Hz (Channels 1-2) and (Channels 3-4)
  • Dual variable subsonic filters: 0-12dB at 6Hz - 70 Hz (Channels 1-2) and (Channels 3-4)
  • Gold plated terminals for all connections
  • Frequency Response: 10Hz to 100KHz (Channels 1 - 4)
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >93dB
  • Dimensions: 10-3/4" (W) x 2-1/8" (H) x 8" (D)

RMS Power Rating:
  • 4 ohms: 70 watts x 4 channels
  • 2 ohms: 80 watts x 4 channels
  • 4 ohms: 160 watts x 2 channel (Dual Bridged)


Maximum Dynamic Power Rating:
  • 4 ohms: 150 watts x 4 channels
  • 2 ohms: 200 watts x 4 channels
  • 4 ohms: 350 watts x 2 channel (Dual Bridged)


Technical Specifications

Manufacturer Sony
Part Number XM-GS400
Amplifier Topology Class Class D
Number of Channels 4 Channel
Total Peak Power Output 700 watts
Total RMS Power Output 400 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Guage N/A
UPC Code 027242823303
