Metra XSVI-5521-NAV Car Stereo Interface harness for 2007 - and Up Ford with Factory Subwoofer

Metra XSVI-5521-NAV Car Stereo Interface harness for 2007 - and Up Ford with Factory Subwoofer

Metra XSVI-5521-NAV Car Stereo Interface harness - Main

More Views

Metra
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Metra XSVI-5521-NAV Product Highlights

  • Audio interface harness and control box for 2007 and Up Ford vehicles
  • Complete car stereo integration harness for Non-Amplified audio systems
  • Can be used when removing the Sony / THX audio systems
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • High level speaker inputs for connections to factory speakers
  • Low level subwoofer connections
  • Includes a prewired ASWC-1 connector
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

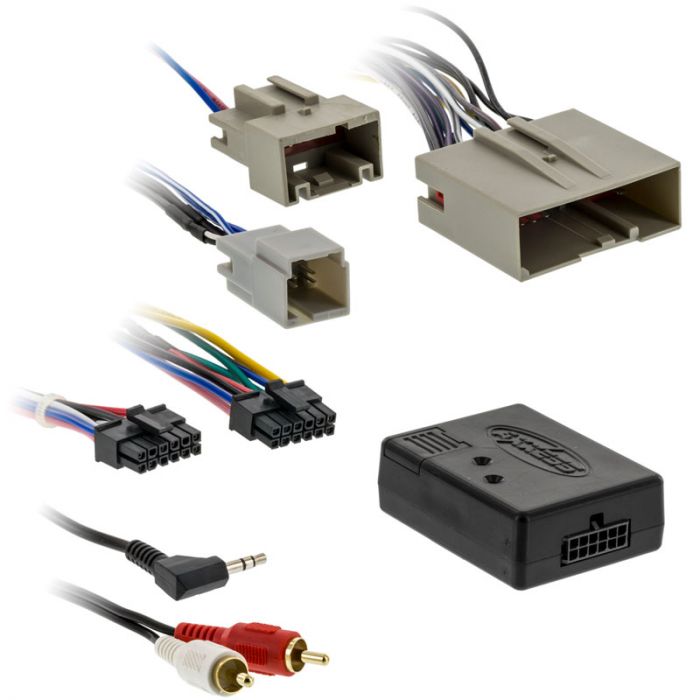

Unit includes: AX-ADXSVI Interface Box, Wiring Harness, and Instruction manual

Metra XSVI-5521-NAV Car Stereo Interface harness and control box for 2007 - and Up Ford with Subwoofer
    Features
  • Complete car stereo integration harness for Non-Amplified audio systems
  • Can be used when removing the Sony / THX audio systems
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • High level speaker inputs for connections to factory speakers
  • Low level subwoofer connections
  • Includes a prewired ASWC-1 connector
  • 12 volt 10 amp car accessory
  • Allows the user to connect a USB device (via some additional connector)


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Blue - Power antenna turn on (+)
  • Light Green - Parking brake wire(-)
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Green with Purple Stripe - Reverse wire (+)
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • White RCA – Left Subwoofer signal
  • Red RCA – Right Subwoofer signal


Compatible With:

Ford
  • 2007 - 2010 Ford Edge
  • 2008 - 2012 Ford Escape
  • 2007 - Up Ford Expedition
  • 2008 - 2012 Ford Flex
  • 2008 - 2011 Ford Focus
  • 2010 - 2012 Ford Fusion
  • 2009 - 2012 Ford F-150
  • 2013 Ford F150 STX/FX2 base/XLT base
  • 2014 Ford F150 STX/XLT base
  • 2008 - 2012 Ford F-250, F-350, F-450 F-550
  • 2013 - and Up Ford F-250, F-350, F-450 F-550 (XL / XLT)
  • 2009 - Up Ford Mustang
  • 2010 - 2012 Ford Taurus


Lincoln
  • 2007 - 2010 Lincoln MKX
  • 2007 - 2009 Lincoln MKZ
  • 2007 - up Lincoln Navigator (when replacing an amplified system)


Mazda
  • 2008 - 2011 Mazda Tribute


Mercury
  • 2008 - 2011 Mercury Mariner
  • 2010 - 2011 Milan

Technical Specifications

Manufacturer Metra
Part Number XSVI-5521-NAV
Integration Module No
Steering Wheel Control Input No
RCA Pre-amp Audio inputs No
Speaker level inputs No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 086429238811
