DISCONTINUED - Hifonics ZRX616.4 Zeus Series 600 Watts Class AB 4-Channel Amplifier

DISCONTINUED - Hifonics ZRX616.4 Zeus Series 600 Watts Class AB 4-Channel Amplifier

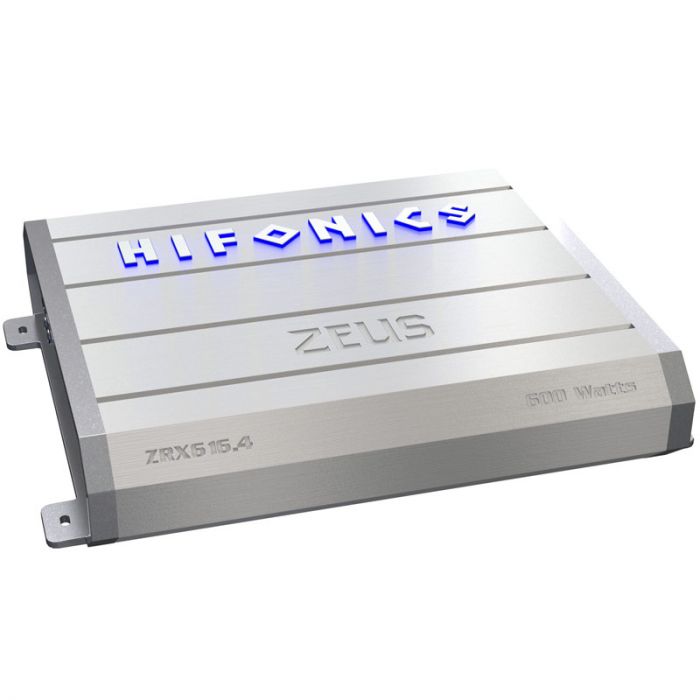

Hifonics ZRX616.4 Zeus Series 4-Channel Amplifier - Main

More Views

Hifonics
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Hifonics ZRX616.4 Product Highlights

  • ZRX616.4 Zues ZRX Series 4-Channel Class-AB Amplifier with 600 Watts of power!
  • SPC (Simpatico coil) and Pulse Width Modulated MOSFET power supply
  • LED indicators: blue for power and red for protect
  • Bass boosts from 0 to +10dB at 45 Hz
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Requires 8 gauge power and ground wiring for installation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • 4 ohms: 75 watts x 4 channel
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Unit includes: Class AB 4-Channel Car Amplifier, Bass control knob, Extension cable, Mounting hardware, and Instruction manual

Hifonics ZRX616.4 Zeus Series 600 Watts Class AB 4-Channel Amplifier
    Features:
  • Zues ZRX Series 4-Channel Class-AB Amplifier with tons of power!
  • Designed with SPC (Simpatico coil) and Pulse Width Modulated (PWM) MOSFET power supply for high current levels
  • Military grade PCB construction
  • LED indicators: blue for power and red for protection
  • Includes wired HFR-3 remote bass level control
  • Equipped with soft start turn-on that helps reduce the load and makes start-up easier
  • Maximum Power output is 600 watts
  • 4-Channel channel operation
  • 4 / 3 / 2 Channel modes for ultimate flexibility
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Low Level RCA Inputs and Outputs
  • High Level speaker inputs, no need for line output converters
  • Requires 8 gauge power and ground wiring for installation
  • Input sensitivity is 200 mV to 6V (variable level)
  • Variable low-pass filter: 30-250 Hz, 24 dB/ octave
  • Variable high-pass filter: 60-1200 Hz, 24 dB/ octave
  • Bass EQ boosts from 0 to +12dB at 45 Hz
  • Frequency response: 10 Hz - 45 KHz
  • Signal to Noise ratio: >90dB
  • Total Harmonic Distortion: <0.05%
  • Damping factor is greater than 200 and frequency response is 15-250 Hz
  • 600 Watts Class AB Mono Block Zeus Series Amplifier for Vehicles
  • Dimensions: 12-5/8" (L) x 2-7/16" (H) x 10" (W)

Maximum Power Rating:
  • 4 ohms: 75 watts x 4 channel
  • 4 ohms: 300 watts x 2 channel bridged
  • 2 ohms: 150 watts x 4 channel


Technical Specifications

Manufacturer Hifonics
Part Number ZRX616.4
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Total Peak Power Output 600 watts
Total RMS Power Output Up to 250 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code 806576223870
