DISCONTINUED - Audiovox ACA400 Color Surface Mount reverse image back up camera

DISCONTINUED - Audiovox ACA400 Color Surface Mount reverse image back up camera

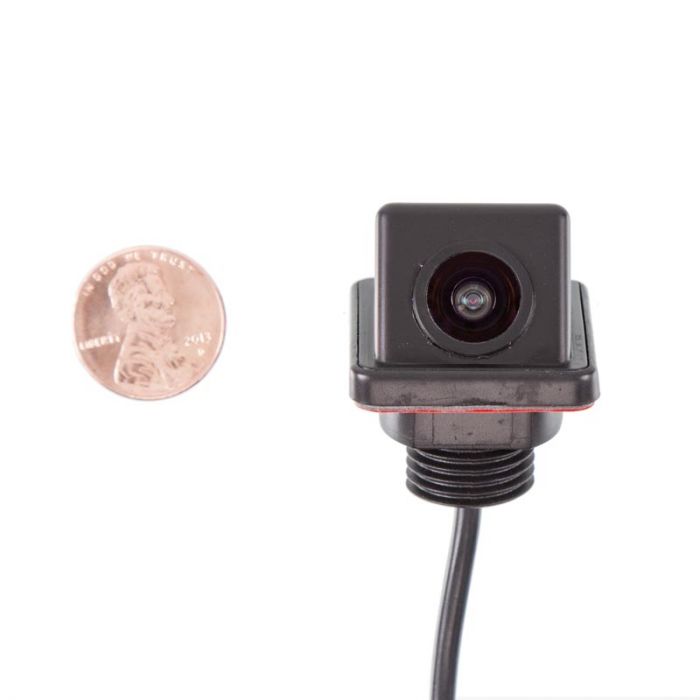

Audiovox ACA400 Reverse camera - Size comparision

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Audiovox ACA400 Product Highlights

  • CMOS Lens
  • Selectable reverse image for rear view or front view - Cut wire changes mode
  • Parking grid lines
  • High Resolution Color Camera
  • Reverse Camera
  • Low Sensitive
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Back up camera, Mounting tab, 20 foot RCA cable, DC power cable

Audiovox ACA400 Color surface mount reverse image back up camera Details:
  • OEM-Style back up camera
  • Camera is designed to be mounted on the lip near the license plate
  • Has cut-able lead for turning parking distance lines on & off
  • 12 volt lead to switch camera from rear view use to front view use - reverse / non reverse image
  • Includes two-way tape gasket and retaining nut
  • 1/4" CMOS high resolution color camera
  • Compact ABS plastic body
  • Waterproof housing
  • 150° wide-angle lens
  • Minimum illumination: 0.3 lux
  • Resolution: 672 x 520
  • Waterproof: IP67 rated
  • Operating temp: 30°C to +70°C
  • Max current: 80mA
  • Hole saw included

Technical Specifications

Manufacturer Audiovox
Part Number ACA400
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 150 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire Yes
Auto on/off Yes
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 044476084409

Write Your Own Review

You're reviewing: DISCONTINUED - Audiovox ACA400 Color Surface Mount reverse image back up camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Chris Morgan, Monday, November 3, 2014


Can the Audiovox ACA400 Color Surface Mount reverse image back up camera be used with the Safesight TOP-043LA 4.3 inch LCD Monitor? Thanks, Chris


  • Posted by Store Owner on Monday, November 3, 2014
    A: The ACA400 camera can be used with this monitor or any other monitor that accepts RCA inputs.
