Name: DISCONTINUED - Pioneer AVIC-8201NEX Double DIN 7 inch In Dash Car Stereo Receiver with Navigation, DVD, Apple CarPlay, Android Auto, HDMI and SiriusXM
Brand: Pioneer
SKU: AVIC-8201NEX
Price: 855.99 USD
Availability: OutOfStock

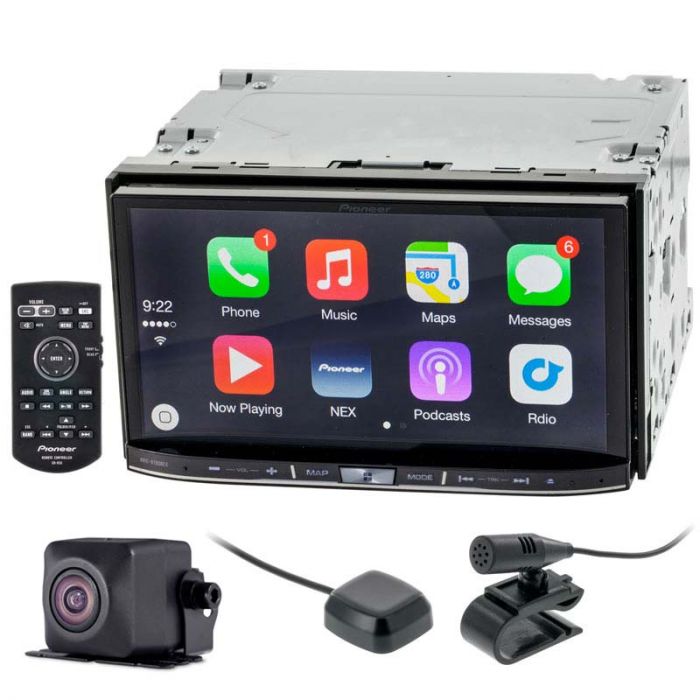

Unit includes: Double DIN radio, ND-BC8 Back up camera, Remote control, Wiring harness, Mounting hardware, Back strap, GPS sensor, 3.5mm extension cable, CD instruction manual, Magnetic pad, and Instruction manual

Pioneer AVIC-8201NEX Double DIN 7" In Dash Car Stereo Receiver

Features:

7 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
Includes ND-BC8 Back up camera
Motorized flip-down face with 5 angle settings
Capacitive touchscreen for smartphone touchscreen type control with gesture support
Built in GPS navigation with 7.9 Million POIs and Text-to-Speech Voice Guidance
Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
LCD screen Resolution: 800 x 480 Pixels
LED Back-lighting
5 Color LCD Display illumination colors, 112 color button illumination
Selectable backgrounds
Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
12 hours or 24 hours clock display
Displays CD text and MP3 ID3 Tag including title, artist & album
Easily accessible with wireless remote and graphic touch screen
App Radio mode for iPhone and Android
iPod interface control with optional CD-IU52 USB to Ligthning cable
Wireless Pandora Control for iPhone
Siri Eyes Free Compatible
Dual-zone control, play a movie in the backseat for the children while the driver listens to the radio!
iDatalink Maestro Compatible

Media playback features:

Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, and Digital media files via USB and Bluetooth
Region 1 DVD player
Electronic shock protection with built in buffer
MP3/WMA/AAC/WAV Audio Playback on CD/DVD/USB/SD
MP3 ID3 tag information, display artist and song information
Jpeg image playback on USB/SD
MPEG1/MPEG2/AVI/DivX Video Playback on CD/DVD
MPEG4 Video Playback on CD/DVD/USB/SD
WMV Video Playback on CD/DVD/USB/SD
FLAC Audio Playback on USB/SD for high definition audio downloads
24-bit Digital to analog decoder for excellent digital audio quality
MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
Link Search for iPod
iTunes Tagging
Pandora native radio app compatible with cable or Bluetooth

Audio features:

MIXTRAX for DJ inspired effects and transitions
96 kHz/24-bit D/A Converter for high quality digital to analog conversion
Auto EQ with Time alignment for optimum sound quality that is tuned to your vehicle, requires CD-MC20 microphone
13-band parametric equalizer with preset and custom options
High-Pass filter with variable slopes and crossover frequencies
Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
Easy EQ with selectable presets: Super Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
Built in time-alignment with listening position selector
Advanced Sound Retriever to restore compressed audio files
Auto level control corrects automatically the audio level difference between music files and sources

Tuner features:

Includes AM & FM HD Radio tuner with 24 preset stations memory
RDS (Radio data service) Tuner
HD Radio Artist Experience
HD Radio Multicasting
SiriusXM radio ready with SXV300 Sirius XM tuner

Bluetooth features:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
SSP: Secure Simple Pairing
SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
External microphone with 10 foot cord for optimal placement
Bluetooth 2.0+ certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
Sound retriever air to restore compressed audio

Inputs and outputs:

3 - 4V preamp outputs (Front, Rear and Subwoofer)
1 - Rear Input for Rear Camera
1 - Rear Input for Front Camera
1 - Rear video output to connect to an external monitors
2 - Rear Audio video input for connection to external source
1 - Rear HDMI input
2 - Rear USB connection accepts up to a 32Gb
2 - Front SD card input accepts up to a 32Gb
1 - Steering wheel control input requires ASWC steering wheel interface
1 - iDataLink Maestro Rr input

Android Auto features:

Built in Navigation via Google Maps
Navigation provides real-time traffic
Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
Place and receive hands-free calls using Google Assistant
Place and receive hands-free text messages using Google Assistant
Compatible with third party apps for a complete hands free assistant
Requires phone to be connected via USB

Apple Car Play features:

Built in Navigation via Apple Maps
Navigation provides real-time traffic
Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
Place and receive hands-free calls using Siri Assistant
Place and receive hands-free text messages using Siri Assistant
Compatible with third party apps for a complete hands free assistant
Requires phone to be connected via USB

Navigation features:

Built in HERE® Navigation with 8Gb storage
Navigation has mapping information with US, Alaska, Hawaii, Canada, and Puerto Rico
Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
8 million points of interest and offers real time traffic
3D mapping with 3D landmarks and 3D city maps
Speed Limit and Warnings
3D Hybrid Sensor (Gyro & G-Force)
Natural Voice Guidance
Enhanced Junction View & Realistic Road Signs

Dimensions:

Double DIN chassis
Dimensions: 7"W x 7-1/8"D x 3-15/16"H

More Information
Manufacturer	Pioneer
Part Number	AVIC-8201NEX
Chassis Size	Double DIN
Faceplate features	None
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	4 volts
LCD Screen Size	7 inch - 8 inch
Illumination color	Full Color
LCD Screen Brightness	400 Nit
Swivel Screen	Yes
Touchscreen	Yes - Capacitive touchscreen
Widescreen Display	16:9 Widescreen Display
Native Screen Resolution	800 x 480
Front camera input	Yes
Back up camera input	Yes
Audio Video inputs	1 Audio Video Input
Front mounted auxiliary input	None
Audio Video Outputs	1 Audio/Video output
Built-in DVD Player	Yes
Disc Playback	DVD
Anti-Shock	Yes
Dual Zone Control	Yes
SD Card input	Yes, microSD Card
USB input	Dual USB
HDMI input	Yes
HDMI output	No
Smartphone Compatible	Yes
Smartphone Technology	Apple CarPlay and Android Auto
Modulation	NTSC and PAL
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
Video Formats	Divx, H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	Yes
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
Navigation	Built in
GPS Maps	USA and Canada
Text to Speech	Yes
Traffic Tuner	Built in Traffic Tuner
Points of Interest	7 - 8 Million
Integration Module	iDataLink Maestro RR
Steering Wheel Control	Yes, requires external module
Wireless Remote Control	Yes
Operation Voltage	12-15 Volt DC
CEA2006 Compliant	No
Warranty	1 Year
Return period	30 days
Exchange period	30 days
