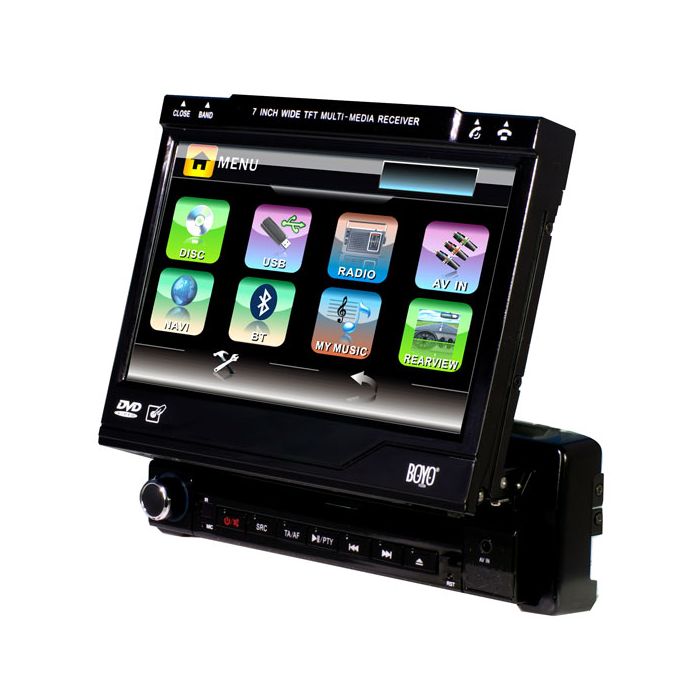

DISCONTINUED - Boyo (Vision Tech) AVN701S Single DIN 7 Inch In Dash Motorized Touchscreen DVD Multimedia LCD Widescreen Monitor w Bluetooth, GPS Navigation, USB, SD

$599.99
Out of stock
SKU
32611

Key Features

DISCONTINUED - Boyo (Vision Tech) AVN701S Single DIN 7 Inch In Dash Motorized Touchscreen DVD Multimedia LCD Widescreen Monitor w Bluetooth, GPS Navigation, USB, SD
Unit includes: Remote control

DISCONTINUED - Boyo (Vision Tech) AVN701S Single DIN 7 Inch In Dash Motorized Touchscreen DVD Multimedia LCD Widescreen Monitor with Bluetooth, GPS Navigation, USB and SD Slots
  • 7" TFT LCD Widescreen Display
  • Single DIN housing
  • Bluetooth
  • GPS Navigation
  • Touchscreen panel
  • DVD Multimedia Player with Radio
  • DVD/CD/MP3 Compatible
  • AM/FM MPX PLL tuning radio
  • RBDS Version
  • My music ready and cable with USB 2.0 and SD card slot
  • 4 x 40 watts power output
  • 2CH RCA lineout
  • Remote control
  • Motorized flip down mechanism
  • Brake line control
  • 1 AV input - 1 AV output
  • Aux IN
  • Ipod Operation Interface

  • Power supply: DC 12V
  • Maximum output power: 4 x 40 watts
  • Current Drain: 15Am
  • Ground system: Negative ground
  • Bluetooth: 2.0, class II
  • Navigation-GPS receiver system: Sirf III GPS
  • GPS reception system: 12 channel multi-channel reception system
  • Display Screen size: 7", 16:9
  • FM Frequency range: 87.5-107.9MHz
  • FM Sensitivity (S/N=30dB): 10dBu
  • FM Image rejection: > 45dB
  • FM Stereo seperation: > 25dB
  • AM Frequency range: 530-1710KHz
  • AM Sensitivity (S/N=20dB): 36 dBu
  • AM Image rejection: > 45dB
  • DVD Resolution: 720(RGB) x 480 DOT
  • DVD Player signal system: Compositive video 1.0Vp-p 75ohm
  • Operating Temp: 14 degrees F to 122 degrees F ( -10 degrees C to + 50 degrees C )
  • Humidity: Within 85% RH

  • Instruction Manual

More Information
Manufacturer Boyo
Part Number AVN701S
Chassis Size Single DIN
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
LCD Screen Size 7 inch - 8 inch
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 480 x 234
Audio Video inputs 1 Audio Video Input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
SD Card input Yes, SD Card
USB input Yes
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
Radio Data Service - RDS Yes
Navigation Built in
Wireless Remote Control Yes
Warranty 1 Year
Return period 30 days
Exchange period 30 days
