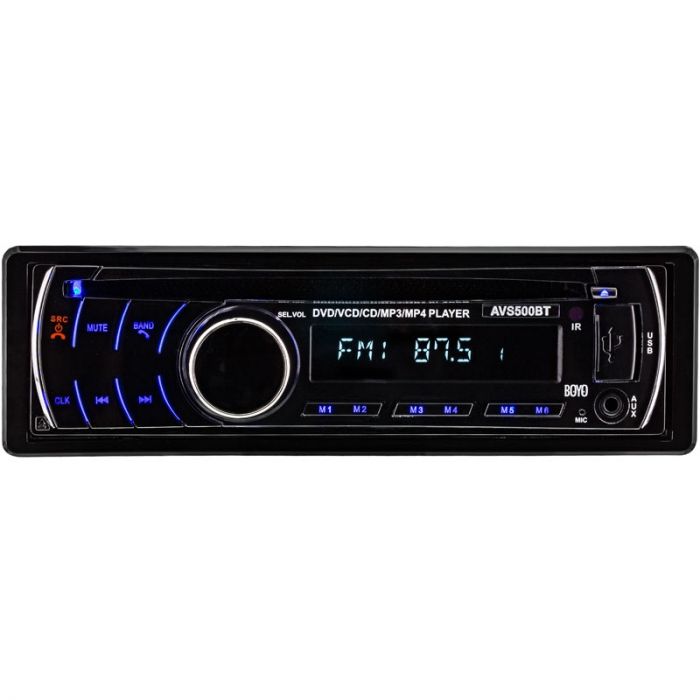

DISCONTINUED - Boyo AVS500BT In Dash DVD Player with AM/FM Radio, 50 watts x 4 amplifier, USB and SD Card slot
$77.99
Out of stock
SKU
AVS500BT
Expert Knowledge
Talk to a specialist
- Single DIN In-Dash Car Stereo DVD receiver
- AM/FM radio tuner
- Blue button illumination
- 2 video outputs
- 4 channel preamp outputs
- USB and SD card slot
- Bluetooth for convenient hands-free phone calls and supports A2DP & AVRCP
Unit includes: In dash DVD player, Mounting cage, Radio back strap, Wiring harness, Pull Keys, and Instruction manual
Boyo AVS500BT In Dash DVD Player with AM/FM Radio, 50 watts x 4 amplifier, USB and SD Card slot
Boyo AVS500BT In Dash DVD Player with AM/FM Radio, 50 watts x 4 amplifier, USB and SD Card slot
-
Features:
- Single DIN In-Dash Car Stereo DVD receiver
- Large 32 Segment LCD Display with Blue LED Back-light
- Blue button illumination
- AM/FM radio tuner
- Front 3.5mm auxiliary input
- Front full size USB connector
- Front full size SD connector
- Speaker Power Output: 4 channels x 50 watts peak and 4 channels x 17 watts RMS
- MP3, MP4, AVI, WAV, DivX, 5.X, JPG, & WMA playback from CD's, USB, and SD card
- Easily accessible with wireless remote control
- Jpeg picture viewer
- Audio features:
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, DivX, WMA, and AVI
- Region free DVD player
- Electronic shock protection with built in buffer
- Includes PLL synthesized AM & FM tuner with 18 FM & 12 AM preset stations memory
- Selectable USA and European radio frequencies sets
- Rotary Knob Controls: Volume, Fader, Bass, Treble, Balance, DBass
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 2 - Sets of 2V preamp outputs (Front and Rear)
- 2 - Rear video outputs to connect to an external monitors
- 1 - Front full size USB connection accepts up to a 32Gb
- 1 - Front SD memory card reader accepts up to a 32Gb memory card
- 1 - Front 3.5mm Audio video input
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/2"D x 2"H
| Manufacturer | Boyo |
|---|---|
| Part Number | AVS500BT |
| Chassis Size | Single DIN |
| Illumination color | Blue |
| Faceplate features | Detachable face plate |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| Audio Video inputs | 1 Audio Video Input |
| Audio Video Outputs | 1 Audio/Video output |
| USB input | Yes |
| SD Card input | No |
| Audio Formats | Mpeg-3, WAV |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 2 volts |
| Steering Wheel Control | No |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | 852052006659 |
| Return period | 30 days |
| Exchange period | 30 days |
Write Your Own Review
Customer Questions
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
