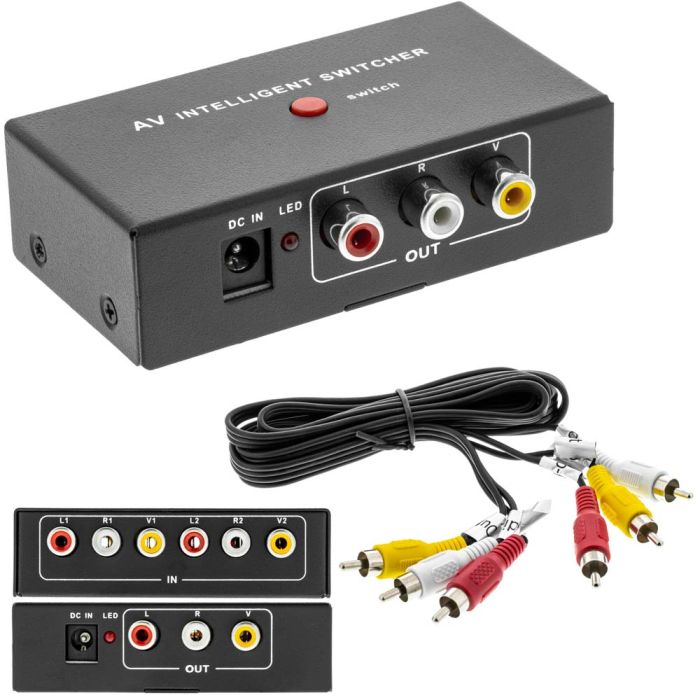

The Beuler AVSW Smart Audio/Video Switcher allows two composite video and stereo audio sources to share a single RCA Audio/Video output. Input 1 receives priority whenever its video signal is present, and the switcher automatically changes to Input 2 when the primary signal is removed. A built-in push button also provides manual source selection when required. The AVSW operates on 12-volt power and switches the left audio, right audio, and video signals together, making it suitable for cameras, DVD players, DVRs, media players, monitors, and other automotive entertainment equipment. The compact metal housing includes two stereo audio/video inputs, one stereo audio/video output, an RCA cable, and installation instructions.

Features:

• Intelligent 2-Way Audio / Video switcher for switching between two video source on a single screen via an auto switcher
• Cannot be used to display two sources at the same time
• Audio / Video 1 has input priority (A)
• Audio / Video 2 has input priority (B)
• Auto default to video 1 when signal is present and will switch to video 2 when signal from video 1 is not present
• Module requires 12 volt power
• Can be used for backup/front camera or video source switching

Inputs and Outputs

• 2 - Audio / Video inputs (Stereo audio)
• 1 - Positive trigger input
• 1 - Negative trigger input

How the unit functions

• If a video signal is present on Video 1 (Top priority) this will display as long as a signal is present even when a signal is present on Video 2 (Bottom priority)
• If a video signal is present on Video 2 (Bottom priority) this will display as long as a signal is present when no signal is present on Video 1 (Top priority)
• Switcher must have power, video will not display when power is not present to the switcher
