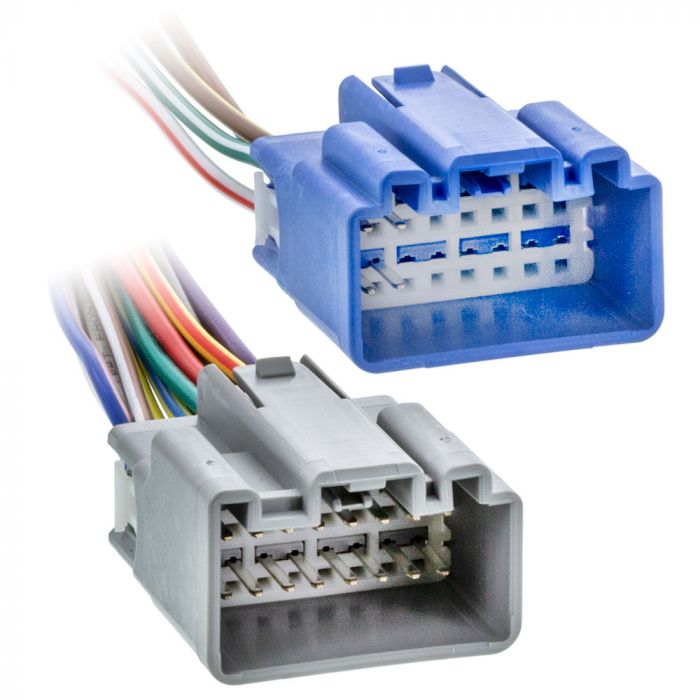

Axxess AX-AB-FD1 Amplifier Bypass Harness for 2011 - 2017 Ford vehicles
$20.99
In stock
SKU
AX-AB-FD1
Expert Knowledge
Talk to a specialist
- Fits 2011 - 2017 Ford vehicles vehicles
- T-harness is a basic and simple plug-n-play harness for easy installation of aftermarket amplifiers while bypassing the factory amp
- Provides connections to all factory speaker wires with an aftermarket amplifier
Unit Includes: Plug-and-Play Amp Bypass Harness
Axxess AX-AB-FD1 Amplifier Bypass Harness for 2011 - 2017 Ford vehicles
Axxess AX-AB-FD1 Amplifier Bypass Harness for 2011 - 2017 Ford vehicles
-
Features:
- Fits 2014 - and Up Chevrolet and GMC vehicles
- T-harness is a basic and simple plug-n-play harness for easy installation of aftermarket amplifiers while bypassing the factory amp
- Provides connections to all factory speaker wires with an aftermarket amplifier
- Plug and play installation, requires no cutting of the factory speaker wires and amplifier connections
- Instruction Manual - Axxess AX-AB-FD1 Amplifier Bypass Harness Instruction manual
-
Tools Required:
- Panel Removal tool
- Wire Crimper
- Crimp connectors
- Digital volt meters
- Phillips Screwdriver
- Socket wrench
- Vehicle Applications:
- Ford
- 2011 - 2017 Edge
- 2013 - 2016 Escape
- 2015 - 2017 Expedition
- 2011 - 2017 Explorer
- 2013 - 2017 F-150
- 2013 - 2017 F-250
- 2013 - 2017 F-350
- 2013 - 2017 Flex
- 2012 - 2017 Focus
- 2012 - 2017 Focus
- 2013 - 2016 Fusion
- 2013 - 2017 Taurus
- Wire connections
- 16-Pin Harness
- Green with White Stripe - Subwoofer (+)
- White with Red Stripe - Subwoofer (-)
- Brown with Yellow Stripe - Subwoofer (+)
- Brown with Blue Stripe - Subwoofer (-)
- 16-Pin Harness
- Gray - Right Front Mid-range (+)
- Gray with Black Stripe - Right Front Mid-range (-)
- White - Left Front Mid-range (+)
- White with Black Stripe - Left Front Mid-range (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- Yellow with Red Stripe - Right Front Tweeter (+)
- Yellow with Orange Stripe - Right Front Tweeter (-)
- Yellow with Green Stripe - Left Front Tweeter (+)
- Yellow with Black Stripe - Left Front Tweeter (-)
- Brown with White Stripe - Center Channel (+)
- Blue with Pink Stripe - Center Channel (-)
- Red - Rear Center Channel (+)
- Red with Black Stripe - Rear Center Channel (-)
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-AB-FD1 |
| Integration Module | Amplifier Bypass Harness |
| Wiring harness function | Bypass OEM Amplifier |
| Steering Wheel Control | No |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| UPC Code | 086429369645 |
| Return period | 30 days |
| Exchange period | 30 days |
