Unit Includes: Double Din Headunit, License plate backup camera, Bluetooth Microphone, Wiring harness, Mounting Brackets, Mounting hardware, and Instruction manual

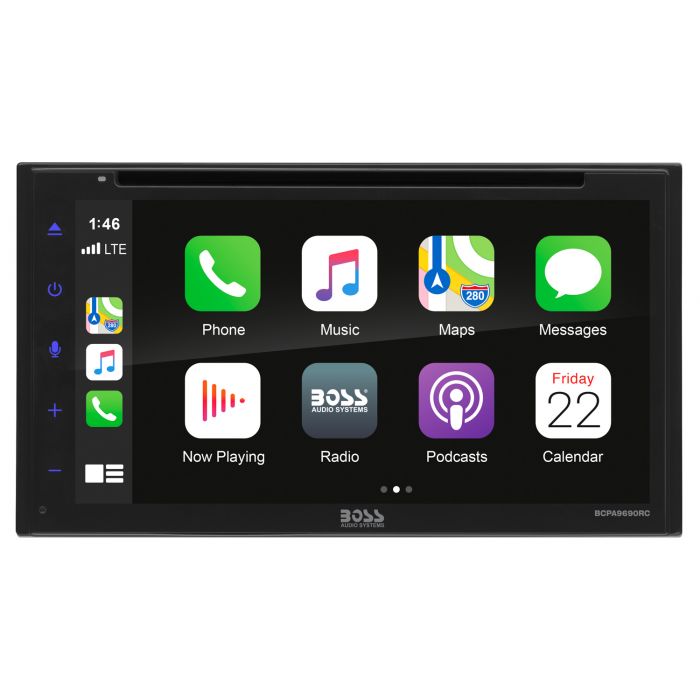

Boss Audio BCPA9690RC 6.75" DVD/CD Receiver with Apple Carplay, Android Auto and Backup Camera
Features
Double DIN DVD/CD Receiver
6.75" Touchscreen Display
Supports Apple Carplay and Android Auto (USB Connection)
Apple Carplay and Android Auto make it easier than ever to use your smartphone's helpful features on the road
Included License Plate Backup Camera
Dual USB
Disc Slot for DVD/CD Playback
License Plate Backup Camera Included
Siri Hands-Free Compatible
Google Assistant Hands-Free Compatible
High power 4-channel amplifier: 4 channels x 80 watts
Built in Bluetooth with A2DP, AVRCP, HFP, PBAP for wireless audio streaming and wireless phone operation
Backup camera input
Front camera input
LCD screen Resolution: 800 x 480 Pixels
Dimmer and brightness control
5 Color Selectable Touch Key Illumination
Steering wheel control input
Audio Features
7-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
Low-Pass filter with variable crossover frequencies
Subwoofer gain
Volume Offset
Loudness control
Media Playback
USB Thumb Drive up to 32GB
Compatible audio codecs: WAV, MP3, WMA, APE, OGG and FLAC
Compatible video codecs: AVI, OGM, MKV, MOV and WMV
Compatible picture codecs: JPEG, PNG and BMP
ID3 tag information, display artist and song information
Supports up 32 GB flash drives
Tuner features:
Includes Radio AM & FM tuner with 10 FM / 10 AM preset stations memory
RDSB (Radio data service) Tuner
RDS Tuner
Inputs and Outputs
3 - 2V preamp outputs for (Front, Rear and Subwoofer)
1 - Rear A/V Input
1 - Rear Input for Rear Camera
1 - Rear Input for Front Camera
1 - Set of Rear Auxiliary Audio Inputs
2 - Rear USB inputs (Apple Carplay and Android Auto or for USB drives)
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
