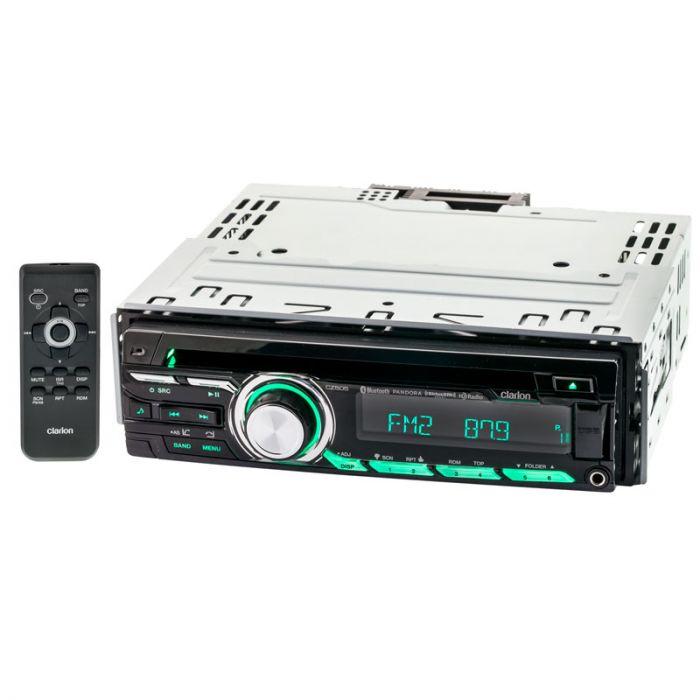

Clarion CZ505 HD Radio/Bluetooth/CD/USB/MP3/WMA Receiver

Clarion CZ505 HD Radio/Bluetooth/CD/USB/MP3/WMA Receiver

Clarion CZ505 HD Radio/Bluetooth/CD/USB/MP3/WMA Receiver

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Clarion CZ505 Product Highlights

  • Single-DIN in-dash CD receiver with Bluetooth
  • Comes SiriusXM Ready
  • Supports CD/USB/MP3/WMA playback
  • Supports streaming for media devices like phone, iPods etc.
  • Detachable face plate makes it theft-deterrent
  • Comes with1-year Manufacturer's Warranty
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


The Unit Includes: Radio Unit, Mounting Hardware, Wireless Remote Control, Instructions Manual

Clarion CZ505 HD Radio/Bluetooth/CD/USB/MP3/WMA Receiver


  • Single-DIN in-dash CD receiver with Bluetooth
  • Variable-color key illumination
  • 13-segment, 10-digit x 2-line display
  • SiriusXM ready with optional SXV200/300
  • OEM steering wheel remote ready

Power Output:

  • Peak: 50 watts x 4 channels
  • RMS: 22 watts x 4 channels
  • Theft-deterrent, detachable face plate
  • 1-year Manufacturer's Warranty

Music and Videos:

  • CD/USB/MP3/WMA playback
  • AM/FM radio
  • Pandora Internet Radio control via iPhone/iPod & Android smartphone connectivity
  • Magna Bass EX dynamic bass enhancement
  • 2-band parametric equalizer
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • 6-channel/4V RCA output with built-in high- & low-pass filters
  • Built-in microphone & external microphone
  • Beat EQ for Customizable Sound
  • Front USB port with iPhone/iPod direct-control capabilities
  • MP3 ID3 Tag Display (Title/Artist/Album)

Inputs and Outputs:

  • Inputs: front USB 1A port, front auxiliary input
  • Outputs: 2-channel preamp outputs (4-volt rear/sub)


  • Built-in Bluetooth with aptX
  • Supports A2DP audio streaming
  • Works with most Bluetooth enabled cell phones
  • Includes an external wired microphone for clear, convenient and distortion-free talking

Technical Specifications

Manufacturer Clarion
Part Number CZ505
Chassis Size Single DIN
Illumination color No
Faceplate features No
Built-in DVD Player No
Disc Playback No
Anti-Shock No
Dual Zone Control No
LCD Screen Size No
Native Screen Resolution No
Widescreen Display No
Touchscreen No
Swivel Screen No
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Yes
Radio Data Service - RDS No
Satellite Radio No
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
Front mounted auxiliary input No
Front camera input N/A
Back up camera input No
Audio Video inputs No
Audio Video Outputs No
USB input No
SD Card input No
MP3 Playback Yes
Audio Formats No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Navigation No
RCA Pre-amp Audio outputs No
Preamp voltage No
Steering Wheel Control Input Yes, requires external module
Built in Crossover No
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 729218020876
