Discontinued - Kenwood DDX272 Double DIN In-Dash 6.2" LCD Touchscreen DVD Receiver

Discontinued - Kenwood DDX272 Double DIN In-Dash 6.2" LCD Touchscreen DVD Receiver

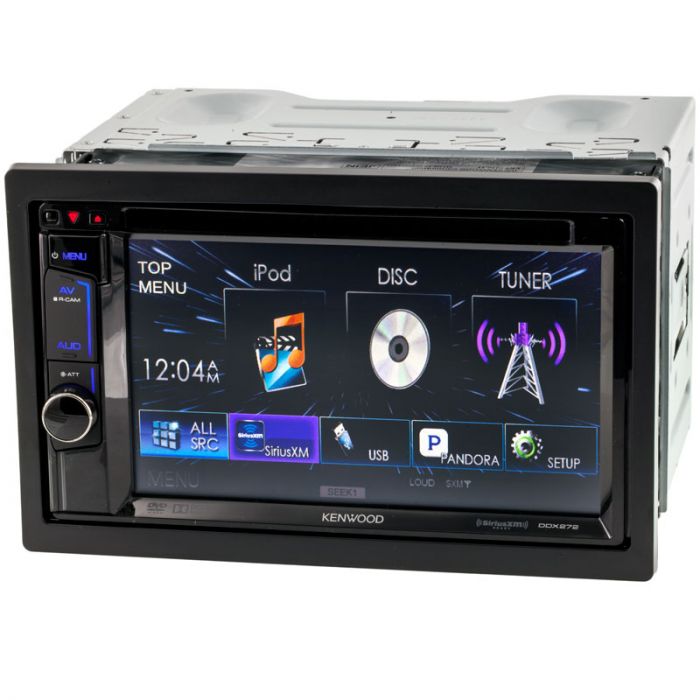

Kenwood DDX272 Double DIN Car Stereo - Main



More Views

Kenwood
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Kenwood DDX272 Product Highlights

Discontinued - Kenwood DDX272 Double DIN In-Dash 6.2" LCD Touchscreen DVD Receiver
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit Includes: Double-DIN DVD receiver, Radio cage, Trim ring, Wiring harness, Parking brake wire, 2 Radio removal tools, 6 Pan-head ISO-mount screws, 6 Flat-head ISO-mount screws, Instruction Manual, Warranty card



Kenwood DDX271 In-Dash 6.1" Double-DIN LCD Touchscreen DVD Receiver for Car

Features
  • 6.2 inch Wide VGA Color LCD Display with LED backlight
  • Touch screen control
  • LCD screen Resolution: 800 x 480 Pixels
  • Variable button illumination for perfect matching of your factory button color
  • Customizable background and menus
  • Multi-language menu (18 Languages (English, Spanish, French and others)
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • App Mode for iPhone allows you to directly control compatible apps from the radio
  • Optional remote control KNA-RCDV331

Media playback features
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG2, AAC, WAV, JPEG, DivX
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WAV/iTunes® AAC Audio Playback on CD/DVD/USB
  • MP3 ID3 tag information, display artist and song information
  • Jpeg image playback on USB/SD
  • Pandora® Radio App Compatible with proper cable (iPhone)
  • iPhone App Mode
  • Sirius satellite radio input requires SXV300V1 satellite radio tuner
  • Steering wheel control input

Audio features
  • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
  • 5-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
  • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 63 to 180 Hz)
  • Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 55 to 160 Hz)
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 55, 85, 120, 160 Hz
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Volume offset

Tuner features
  • Includes AM & FM tuner with 24 preset stations memory
  • RDS (Radio data service) Tuner
  • Sirius satellite radio input requires SXV300V1 satellite radio tuner

Inputs and Outputs
  • 3 - 4V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Rear USB Input
  • 1 - Rear 3.5mm A/V input
  • 1 - Steering wheel input
  • 1 - Back up camera input (RCA)
  • 1 - Video output
  • 2 - Audio Video inputs (Requires CA-C3AV cable for video 2)

Dimensions
  • Double DIN chassis
  • Dimensions: 7" W x 6-5/16" D x 3-15/16" H

Technical Specifications

Manufacturer Kenwood
Part Number DDX272
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
LCD Screen Brightness N/A
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input Yes
Audio Video inputs 2 Audio Video Inputs
Front mounted auxiliary input None
Audio Video Outputs 1 Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input No
USB input Yes
HDMI input N/A
HDMI output N/A
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
NTSC/PAL N/A
Audio Formats AAC, Mpeg-3, WAV
Video Formats N/A
MP3 Playback Yes
Built in Bluetooth No Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio Sirius/XM
Navigation No
GPS Maps N/A
Text to Speech N/A
Traffic Tuner N/A
Points of Interest N/A
Integration Module N/A
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control No
TV Tuner N/A
VGA input N/A
Operation Voltage N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 0019048208972

Write Your Own Review

You're reviewing: Discontinued - Kenwood DDX272 Double DIN In-Dash 6.2" LCD Touchscreen DVD Receiver

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by Rickie Charles, Sunday, December 10, 2017

Question:

How do I get music videos that I download and converted from YouTube to play on my pioneer receiver? What is the best file that I should use to play this file from my USB (Thumb drive)?

Answers:

  • Posted by Store Owner on Tuesday, December 12, 2017
    A:

    You will need to check to see what files are compatible with your receiver. With that you can use a video conversion program to convert the video files to the supported resolution and encoding.

    Most newer receivers support MP4, older receivers support MP2. Keep in mind, that you will need to verify the max resolution the receiver supports, some accept full HD some accept only 480p.

    Below is a sample instruction manual that demonstrates compatible video files

    Sample accepted video files and resolutions for USB thumbdrives
