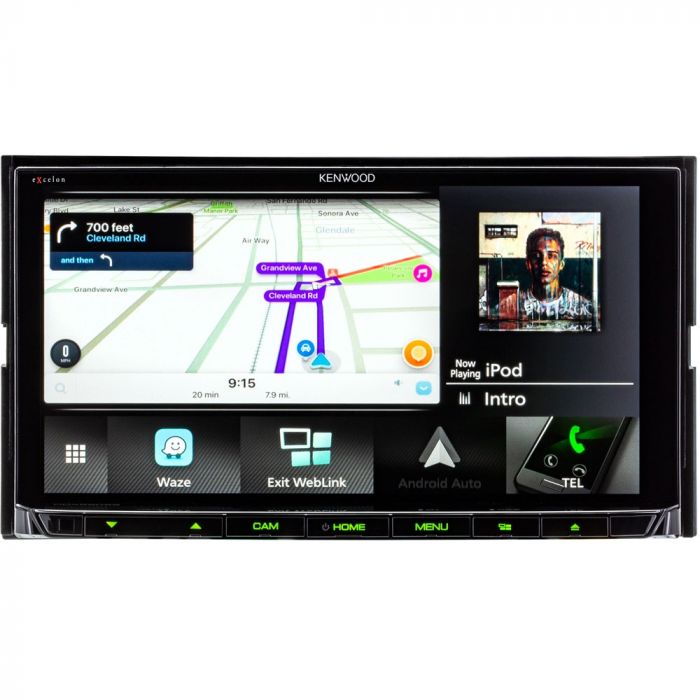

DISCONTINUED - Kenwood eXcelon DMX905S 6.95 Inch Double DIN Digital Media Receiver with HD Radio, WebLink, Dash Cam Link, Apple CarPlay and Wireless Android Auto

$427.99
Out of stock
SKU
DMX905S

Key Features

  • Double-DIN 6.95" DIN Digital Media Receiver
  • HD Radio
  • WebLink car and smartphone connectivity
  • Apple CarPlay
  • Android Auto and Wireless Android Auto
  • Capacitive touchscreen, comparable to smartphone
  • Variable Button Illumination
  • Motorized 6 Step Tilt Angle Adjust
  • Built-in Bluetooth
  • Pandora and Spotify support
  • Dash Cam ready with the optional N520 Dash Camera
  • 3 sets of 5 volt RCA outputs
  • 2 Phones Full-Time Connection
  • Dual USB
Unit includes: Double DIN radio, Remote control, External microphone, GPS sensor, Magnetic Pad, Wiring harness, Mounting hardware, Mounting cage, Back strap, USB cable, and Instruction manual


Kenwood eXcelon DMX905S 6.95 Inch Double DIN Digital Media Receiver with HD Radio, WebLink, Dash Cam Link, Android Auto and Apple Carplay
    Features:
  • 6.95 inch widescreen double DIN in-dash touchscreen receiver
  • Capacitive touchscreen for great touch control, requires less pressure with greater accuracy
  • Supports Apple CarPlay via USB
  • Supports Android Auto via USB and Wireless Android Auto
  • Hi-Res Audio: Supports up to 192kHz/24bit resolution in FLAC or WAV formats
  • Motorized 6 Step Tilt Angle Adjust
  • WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
  • Detachable USB
  • Dual USB
  • No HDMI Port
  • Dash Cam ready with the optional DRV-N520 Dash Camera
  • Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming, wireless audio, and dual phone connection
  • LED Backlighting
  • Auto Slide: Front panel angle can be adjusted to be seen better depending on installation position.
  • Full color variable button illumination
  • Selectable backgrounds with information window
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • 12 hours or 24 hours clock display
  • Displays text, tags and titles for artist and album
  • Easily accessible with customizable GUI graphic touch screen
  • Android Auto ready with standard USB cable
  • Apple Car Play ready with standard USB cable
  • iDataLink Maestro compatible with iDataLink ADS-MRR Maestro interface
  • SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
  • Wireless or wired Pandora Control for iPhone and Android
  • Wireless or wired Spotify Control for iPhone and Android
  • Hi-Res audio compatible for excellent sound quality from higher quality audio files
  • Dual 1.5 Amp USB ports with Android Rapid Charge
  • Adjustable parking grid lines for back up camera
  • Dual zone control
    Kenwood WebLink:
  • In-dash control of select apps via USB connection via iPhone or Android
  • WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
  • Display and get control apps like Waze, Youtube, Yelp, and Open Weather App onto the stereo
    Media playback features:
  • Plays DVD, CD-RW, CD-R, DVD-R, DVD-RW, MPEG1/2, MP3, MPEG4, AAC, WAV, FLAC, H.264, JPEG, MKV, and WMA
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA/WAV/WMV/AAC/FLAC/H.264/MPEG1/MPEG2 Playback on CD/DVD/USB
  • Displays text, tags and titles for artist and album
  • Linear PCM 96kHz/24-Bit/32-bit decoder for excellent digital audio quality
    Audio features:
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Flat / Rock / Pops / Easy / Powerful / Top 40 / Jazz) and (Adjustable from ±9dB)
  • High-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 220 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 120 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay
  • High-resolution audio playback 96kHz/24-Bit audio with K2 audio technology
  • Sound response restorer to cancels time distortion to create clearer sound during the playback of compressed audio files
  • Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively
  • Sound lift to virtually manipulate the height of the speakers by adjusting the sound frequencies
  • Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise
  • Dual zone control
  • Digital time alignment
    Tuner features:
  • HD AM & FM radio tuner with 20 preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXm radio ready with SXV300 Sirius XM tuner
    Bluetooth features:
  • Integrated Bluetooth 3.0 technology facilitates convenient hands-free phone calls and high quality audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • SSP: Secure Simple Pairing
  • SDP: Service Discovery Profile
  • GAP: Generic Access Profile
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0+ EDR certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
  • Includes wired microphone for optimal placement
    Inputs and outputs:
  • 3 - 5V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Rear Input for Rear Camera
  • 1 - Rear Input for Front Camera
  • 1 - Rear audio video output to connect to an external monitors (Dual zone)
  • 1 - Rear 3.5mm Audio/Video input for connection to external source
  • 2 - Rear USB connection accepts up to a 64Gb
  • 1 - Steering wheel control input requires ASWC steering wheel interface
  • 1 - iDataLink Maestro input and output
    Android Auto features:
  • Built in Navigation via Google Maps
  • Navigation provides real-time traffic
  • Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
  • Place and receive hands-free calls using Google Assistant
  • Place and receive hands-free text messages using Google Assistant
  • Compatible with third party apps for a complete hands free assistant
    Apple Car Play features:
  • Built in Navigation via Apple Maps
  • Navigation provides real-time traffic
  • Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
  • Place and receive hands-free calls using Siri Assistant
  • Place and receive hands-free text messages using Siri Assistant
  • Compatible with third party apps for a complete hands free assistant
    Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 3-15/16"H
More Information
Manufacturer Kenwood
Part Number DMX905S
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 5 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
Swivel Screen No
Touchscreen Yes - Capacitive touchscreen
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input Yes
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input None
Audio Video Outputs 1 Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
USB input Dual USB
Smartphone Compatible Yes
Smartphone Technology Apple CarPlay and Android Auto
Built in Crossover High-pass, Low-pass
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio Yes
Satellite Radio Sirius XM Ready
Navigation via Smartphone
Steering Wheel Control Yes, requires external module
Wireless Remote Control Optional
CEA2006 Compliant No
Warranty 1 Year
UPC Code 019048222305
Return period 30 days
Exchange period 30 days
