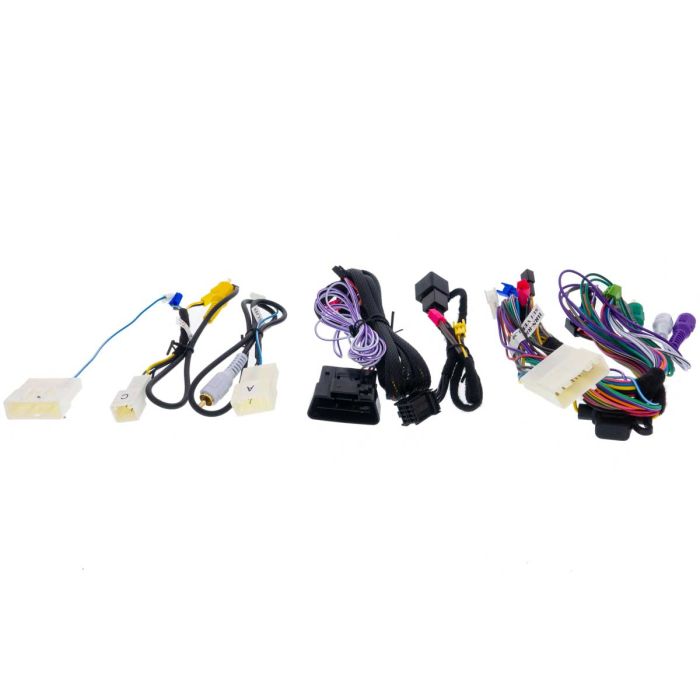

idataLink Maestro HRN-RR-SU1 Radio Replacement and Steering Wheel Interface Harness for 2008 - 2015 Subaru Vehicles
$36.99
In stock
SKU
HRN-RR-SU1
Expert Knowledge
Talk to a specialist
- Fits select 2008 - 2015 Subaru Vehicles
- Plug-and-Play T-harness for ADS-MRR Interface
- Install and aftermarket car stereo receiver and retain all OEM features and audio system
- Provides inputs and output to aftermarket car stereo receiver (Speaker, Power/Ground, Illumination, and Navigation)
- Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers
Unit includes: Radio replacement harness and Instruction manual
idataLink Maestro HRN-RR-SU1 Radio Replacement and Steering Wheel Interface Harness
idataLink Maestro HRN-RR-SU1 Radio Replacement and Steering Wheel Interface Harness
- Features:
- Allows the installation of an aftermarket car stereo touchscreen receiver and retain OEM features and factory amplified audio system
- Plug & Play T-Harness for use with idataLink ADS-MRR Radio Replacement and Steering Wheel Interface module (Required and Sold Separately)
- Plug & Play T-Harness for use with idataLink ADS-MRR2 Radio Replacement and Steering Wheel Interface module (Required and Sold Separately)
- Provides inputs and output to aftermarket car stereo receiver (Speaker, Power/Ground, Illumination, and Navigation)
- Compatible with select 2008 - 2014 Subaru vehicles
- Retain factory steering wheel controls, fader control, back up camera and amplifier with aftermarket stereo
- Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood and Pioneer receivers
- Instruction manual
- Vehicle Compatibility:
- 2009 - 2013 Forester (Base)
- 2011 - 2015 Forester (with factory Bluetooth)
- 2008 - 2014 Imprezza (Base)
- 2011 - 2011 Imprezza (with factory Bluetooth)
- 2008 - 2011 Imprezza WRX (Base)
- 2011 - 2011 Imprezza WRX (with factory Bluetooth)
- 2010 - 2014 Legacy (Base)
- 2012 - 2014 Legacy (with factory Bluetooth)
- 2010 - 2012 Legacy (with factory Navigation and Bluetooth)
- 2010 - 2012 Legacy (with factory Navigation, Bluetooth and Harmon Kardon audio system)
- 2010 - 2011 Legacy (with factory Bluetooth and Harmon Kardon audio system)
- 2010 - 2014 Outback (Base)
- 2012 - 2014 Outback (with factory Bluetooth)
- 2010 - 2012 Outback (with factory Navigation and Bluetooth)
- 2010 - 2012 Outback (with factory Navigation, Bluetooth and Harmon Kardon audio system)
- 2010 - 2011 Outback (with factory Bluetooth and Harmon Kardon audio system)
- 2012 - 2014 WRX (Base)
- 2012 - 2015 WRX (with factory Bluetooth)
- 2012 - 2014 WRX STi (Base)
- 2012 - 2015 WRX STi (with factory Bluetooth)
Subaru
| Manufacturer | iDataLink |
|---|---|
| Part Number | HRN-RR-SU1 |
| Wiring harness function | Retain OEM Amplifier, Retain OE AUX Input, Retain OEM Backup Camera, Retain OEM Subwoofer, Retain Factory Steering Wheel Controls, Replace Factory Radio |
| Color | Assorted |
| Warranty | 1 Year |
| Vehicle Year | 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Vehicle Brand | Subaru |
| UPC Code | 627780002118 |
| Return period | 30 days |
| Exchange period | 30 days |
