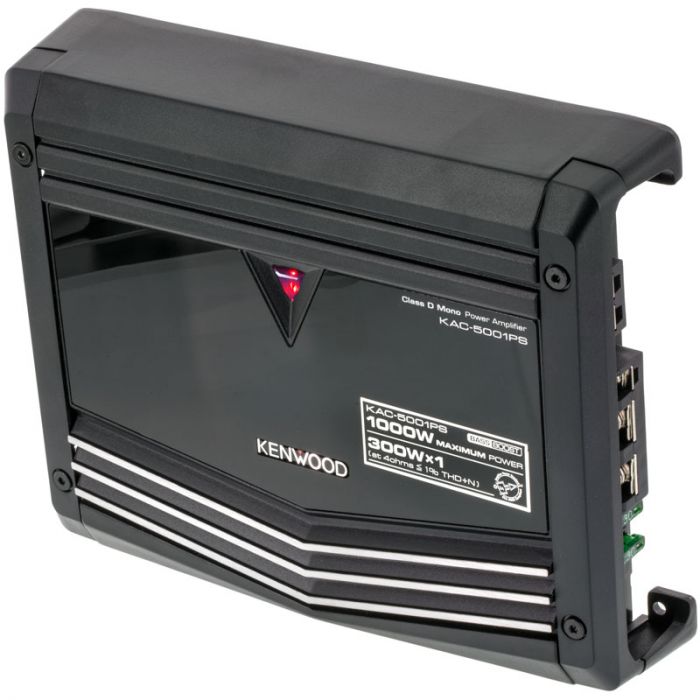

Kenwood KAC-5001PS Class-D Mono Power Amplifier

Kenwood KAC-5001PS Class-D Mono Power Amplifier

Kenwood KAC5001PS Class-D Mono Power Amplifier - Main


More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Kenwood KAC5001PS Product Highlights

  • Class D amplifier
  • Power MOS-FET Switching Power Supply
  • Cast Aluminum Heat Sink Design
  • 1000 Watt maximum output
  • Removable Terminal Cover
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


The Unit Includes: Class-D Mono Power Amplifier

    Kenwood KAC5001PS Class-D Mono Power Amplifier

    • Class D amplifier for excellent efficiency and massive power output
    • Power MOS-FET Switching Power Supply
    • 2 Ohms Load Capable for multiple woofer set-ups
    • Cast Aluminum Heat Sink Design
    • Terminal Cover disguises connections and adjustments
    • LED power (green) and protect (red) indicators
    • Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
    • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
    • Frequency Response: 20Hz - 200Hz (+0dB, -3dB)
    • Input Impedance: 10k ohm
    • Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
    • CEA-2006 Compliant
      Max Power Output
    • 1000 Watts
      RMS Power Output
    • 300 Watts at 4 ohms
    • 500 Watts at 2 ohms
      Inputs and Outputs
    • Battery & Ground: Screw Type Terminal Block (Ni) (M6)
    • Line-in: RCA (Ni)
    • Speaker Output: Screw Type Terminal Block (Ni) (M4)
    • 240mm x 56mm x 192mm
      Bass Boost
      • Built in Bass Boost Control (40Hz, 0dB-+18dB)

Technical Specifications

Manufacturer Kenwood
Part Number KAC5001PS
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output No
Total RMS Power Output 500 watts
Amplifier Bridging No
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover No
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code 019048201942

Customer Reviews

Amazing amp!
Review by
Install (5 star for easy)
Amazing amp I have it hooked to (2) 12 inch kickers. Dont let the size fool you this thing pounds! (Posted on 11/25/2015)

Write Your Own Review

You're reviewing: Kenwood KAC-5001PS Class-D Mono Power Amplifier

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by James Cook, Wednesday, November 25, 2015


I'm trying to figure out if this kenwood amp would be a good choice to power a 12" kicker 10cvr124


  • Posted by Store Owner on Wednesday, November 25, 2015
    A: This would be plenty for a single 12. This will work for two twelves.

Please login to ask a product question

Ships Free!
Your Price: $129.99
$0.00 Tax Outside CA
Item sku:KAC-5001PS
Availability:In stock
