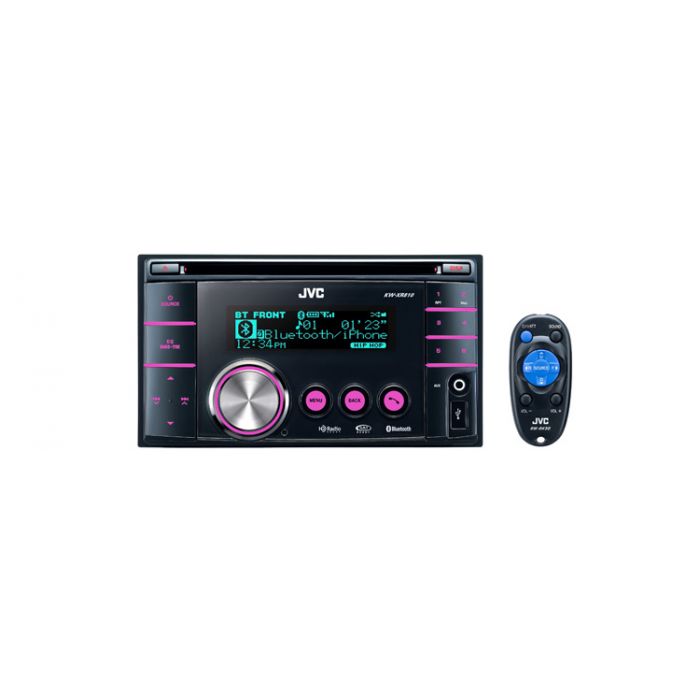

Discontinued - JVC KW-XR810 Double DIN In Dash CD/MP3 Receiver 50W x 4 with Bluetooth Dual USB and iPod Control
$320.99
Out of stock
SKU
32534
Expert Knowledge
Talk to a specialist
Discontinued - JVC KW-XR810 Double DIN In Dash CD/MP3 Receiver 50W x 4 with Bluetooth Dual USB and iPod Control
Unit includes: Remote Control
JVC KW-XR810 Double DIN In Dash CD/MP3 Receiver 50W x 4 with Bluetooth Dual USB and iPod Control
JVC KW-XR810 Double DIN In Dash CD/MP3 Receiver 50W x 4 with Bluetooth Dual USB and iPod Control
- Features
- MOS-FET 50W x 4 (20W RMS x 4)
- TI/Burr-Brown 24-bit DAC
- 3-Band Parametric iEQ
- Bluetooth(R) Wireless Technology*1 (USB Bluetooth(R) adapter included)
- (Phone Book Access Profile, Phone Book Transfer, Hands-Free Call, Audio Streaming, Switching 2 Cell Phones, Compatibility Check Mode)
- Front/Rear Dual USB Ports (WAV/MP3/WMA/iPod & iPhone Audio)
- USB Audio for iPod/iPhone etc.
- 2-Way Control for iPod/iPhone*2 (Headunit/iPod or iPhone)
- 2 Connections for iPod/iPhone
- External Mode for iPod/iPhone - Listen to audio from your favorite Applications such as Navigation voice commands, YouTube, Games, Internet Radio, etc.
- MP3/WMA/WAV*3 Compatible with ID3/WMA Tag (CD/USB)
- HD Radio Ready(R)*4
- SAT Radio Ready
- HS-IVi Tuner
- Loudness Control in 3 Patterns
- 2.5V Line and Subwoofer Output Level
- 3 Pre-Output Terminals (Front + Rear + Subwoofer)
- Subwoofer Control
- Front AUX-IN
- Full Dot LCD
- Separated Variable-Color
- Steering Wheel Remote Ready
- *1 Available functions depend on cell phone.
- *2 Compatibility with 2-way control for iPod/iPhone differs by model.
- *3 Not available on CD.
- *4 KT-HD300 required.
- CD Player
- MP3/WMA Compatible with ID3 Tag/WMA Tag: Yes
- CD-R/RW Compatible: Yes
- CD Text: Yes
- Random/Repeat Play: Yes
- Frequency Response: 5 - 20,000Hz
- Dynamic Range: 96dB
- Signal-to-Noise Ratio: 102dB
- Channel Separation: More than 85dB
- Wow & Flutter: Less than measurable limit
- Bluetooth Conrol
- Bluetooth Control [2]: Yes (USB Bluetooth Adapter included)
- Hands Free Call: Yes
- Audio Streaming & Control: Yes
- Text Message Display: Yes (Receipt notification only)
- Phone Book Transfer: Manual (400 Max.)
- Mic Unit: Yes
- iPod/iPhone Control
- iPod Control: Yes (USB)
- iPhone Control: Yes (USB)
- Play/Pause/Skip/Search: Yes
- Random/Repeat Play: Yes
- Text: Yes
- Battery Charge: Yes (USB)
- 2-Way Control for iPod/iPhone (Headunit/iPod or iPhone Mode) [3]: Yes (USB)
- USB
- Position: Front/Rear
- MP3/WMA Compatible with ID3 Tag/WMA Tag: Yes
- AAC/WAV Compatible [1]: Yes (WAV only)
- Random/Repeat Play: Yes
- iPod/iPhone Playback: Yes
- Tuner
- HD Radio: Ready (KT-HD300)
- SAT Radio Ready: Yes
- Tuner Type HS-IVi: Yes
- Preset Stations: 6 AM + 18 FM
- Station Name Registration: Yes
- SSM (for FM): Yes
- Seek (Up/Down): Yes
- Stereo/Mono Switch (for FM): Yes
- European Switchable Tuner: Yes
- FM Frequency Range: 87.5 - 107.9MHz
- FM Usable Sensitivity: 9.3dBf (0.8uV/75 ohms)
- FM 50dB Quieting Sensitivity: 16.3dBf (1.8uV/75 ohms)
- FM Stereo Separation: 40dB
- AM Frequency Range: 530 - 1,710kHz
- AM Sensitivity: 20uV
- AM Selectivity: 40dB
- Amplifier
- Maximum Power Output: 50W x 4
- Continuous Power Output (RMS) (CEA-2006 Compliant): 20W RMS x 4 CH at 4 ohms and no more than 1.0% THD + N
- MOS-FET Amplifier: Yes
- Audio DAC TI/Burr-Brown 24-bit DAC: Yes
- Source-Specific Volume Control: Yes
- Volume Attenuator: Yes
- Loudness Control: Yes (3 patterns)
- Balance/Fader Control: Yes
- EQ 3-Band Parametric iEQ: Yes
- LPF/HPF Cross Over: Yes
- HPF: Yes
- Max. Amp Gain Switcher: Yes
- Front AUX Input: Yes
- Line Output Terminals (Pair): 3 Pairs (Front + Rear + Subwoofer)
- Subwoofer Output with Level/Frequency Control: Yes
- Load Impedance: 4 ohms (4 - 8 ohms allowable)
- Line Output Level: 2.5V
- Line Output Impedance: 1 kohms
- Subwoofer Output Level: 2.5V
- Display
- Display Type Full Dot LCD: Yes
- Level Meter: Yes
- Contrast Control: Yes
- Switchable Dimmer: Yes
- General
- Steering Remote Control Ready: Yes
- Oval-Shaped Wireless Remote Control: Yes
- Beep Tone Support: Yes (From Speakers)
- COMPU PLAY: Yes
- Rotary Encoder: Yes
- Power-Off Mode Eject: Yes
- Dimensions (W x H x D) Installation Size: 7-3/16" x 4-3/8" x 6-5/16" (182 x 111 x 159.5mm)
- Panel Size: 7-7/16" x 6-5/8" x 15/16" (188 x 116.8 x 22.5mm)
| Manufacturer | JVC |
|---|---|
| Part Number | KW-XR810 |
| Chassis Size | Double DIN |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| USB input | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | Yes |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Yes |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
