Discontinued - Lorex LH16162 ECO6 Series 16-Channel Security DVR - 2TB

Discontinued - Lorex LH16162 ECO6 Series 16-Channel Security DVR - 2TB

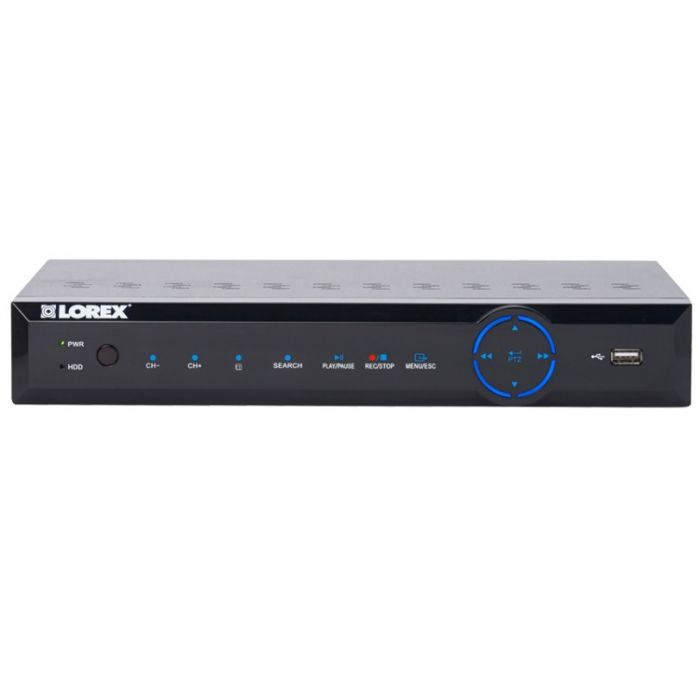

Lorex LH16162 ECO6 Series 16-Channel Security DVR (2TB)-main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Lorex LH16162T Product Highlights

Discontinued - Lorex LH16162 ECO6 Series 16-Channel Security DVR - 2TB
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


The Unit Includes: Lorex ECO6 Series 16-Channel Security DVR (2TB), HDMI Cable, Mouse, IR Remote Control, Ethernet Cable, Power Adapter, Limited 1-Year Warranty

Lorex LH16162 ECO6 Series 16-Channel Security DVR (2TB)

DVD Video Features:
  • Advanced 960H (960 x 480) recording resolution
  • Preinstalled 2TB 100% duty cycle security hard drive
  • H.264 & G.711 Compression
  • 24/7 Real-Time Recording at 30 fps
  • PTZ Cameras Supported
  • Automatic firmware upgrade
  • Continuous, scheduled and motion recording

DVR Video Inputs and Outputs
  • Video Input: 16 x 1 Vpp, CVBS, 75 ?, BNC
  • Output: 1 x BNC, 1 x VGA, 1 x HDMI
  • HDMI
  • Resolution: 1024 x 768, 1280 x 1024, 1440 x 900, HDMI (1920 x 1080)

DVR Internet Features
  • Lorex Stratus cloud connectivity app
  • Network Speed Control 48 kb to 8 Mb/s
  • Network Protocol TCP / IP / DHCP / UDP / DDNS / PPPoE
  • iOS/Android/Windows/Mac Compatible

Technical Specifications

Manufacturer Lorex
Part Number LH16162T
Max DVR Channels 16 channel
DVR HDD Capacity 2 TB
Native Screen Resolution 960 x 480, 960 x 240, 480 x 240
Audio Video inputs No
Cable Type HDMI
Length No
HDMI input No
HDMI output Yes
SD Card input No
USB input Yes
Wireless Transmission No
Alarm inputs No
Alarm outputs 1 output
Network Connection No
Network Protocol DDNS, DHCP, PPPoE, TCP/IP
Infrared Illumination No
Built in Microphone No
Included cameras No
Smartphone Compatible Yes
Wireless Remote Control No
Imager Manufacturer No
Camera Sensor type No
Sensor Size No
Camera diameter No
Lines of Resolution No
Minimum Illumination No
Color Camera No
Viewing Angle No
IR LED Count No
Infra-Red Wavelength No
Zoom No
Gain Control No
Dynamic Range (dB) No
Focus No
AGC (Automatic Gain Control) No
IR range (ft) No
OSD (On Screen Display) Yes
Lens Included No
Lens Type No
Electronic Shutter No
Relative Aperture (F-stop) No
Focal Length (mm) No
Color Black
Housing material Metal
Vandal-proof No
Outdoor No
Waterproof ingress protection No
Battery Powered No
Ac Adapter included No
Operation Voltage No
Power consumption Amps No
Connector Type BNC Connector
Signal type No
Warranty 1 Year
UPC Code 695529000527
