DISCONTINUED - Clarion M109 Single DIN Marine CD/MP3 Receiver
Expert Knowledge
Talk to a specialist
- Single DIN In-Dash Marine Stereo CD receiver
- AM/FM radio tuner
- Plays CD, CD-RW, CD-R, MP3, and WMA
- Selectable USA, Australia and European radio frequencies sets
- Blue button illumination
- HumiSeal coated printed circuit board resists moisture meets ASTM B117 (Salt/Fog Exposure requirements)
- UV resistant that meets ASTM D4329 (UV Exposure requirements)

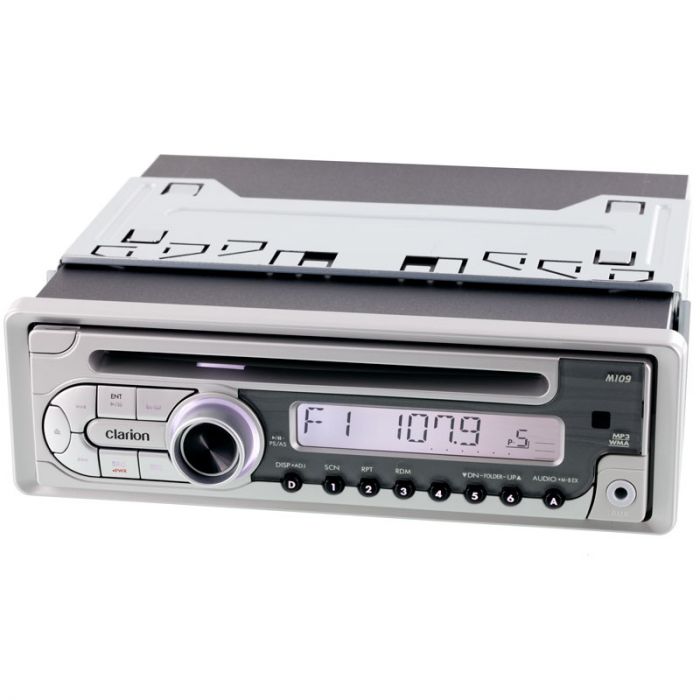

Clarion M109 Marine CD/MP3 Receiver
Features:
- Single DIN In-Dash Marine Stereo CD receiver
- HumiSeal coated printed circuit board resists moisture meets ASTM B117 (Salt/Fog Exposure requirements)
- Large 13 x 8 Segment LCD Display with Blue LED Back-light
- Blue button illumination
- Built in dimmer control
- Detachable face plate
- UV resistant that meets ASTM D4329 (UV Exposure requirements)
- AM/FM radio tuner
- Z-Enhancer plus with 4 sound fields: Bass-Boost, Impact, Excite, and Custom
- Bass and Treble adjustment
- Bass adjustment: 100Hz ± 14dB
- Bass adjustment: 10kHz ± 14dB
- Magna Bass Extend which emphasises the deep bass range with dynamic sound
- Speaker Power Output: 4 channels x 50 watts peak and 4 channels x 20 watts RMS
- MP3, & WMA playback from CD's
- Easily accessible with optional wireless remote control
- Optional Bluetooth with the Parrot CK3000
- Steering wheel control input requires ASWC steering wheel interface
Audio features:
- Plays CD, CD-RW, CD-R, MP3, and WMA
- Electronic shock protection with built in buffer
- Includes PLL synthesized AM & FM tuner with 18 FM & 6 AM preset stations memory
- Selectable USA, Australia and European radio frequencies sets
- Rotary Knob Controls: Volume, Fader, Bass, Treble, Balance, DBass
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
Inputs and outputs:
- 2 - RCA Audio 2 Volt preamp outputs (Front and Rear)
- 1 - Steering wheel control input
- 1 - Front 3.5mm Audio video input
Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/8"D x 2"H
| Manufacturer | Clarion |
|---|---|
| Part Number | M109 |
| Chassis Size | Single DIN |
| Illumination color | Blue |
| Faceplate features | Detachable face plate |
| Built in Bluetooth | No Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| USB input | No |
| SD Card input | No |
| Audio Formats | Mpeg-3, WAV, WMA |
| RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | No |
| Warranty | 1 Year |
| UPC Code | 729218017623 |
| Return period | 30 days |
| Exchange period | 30 days |
