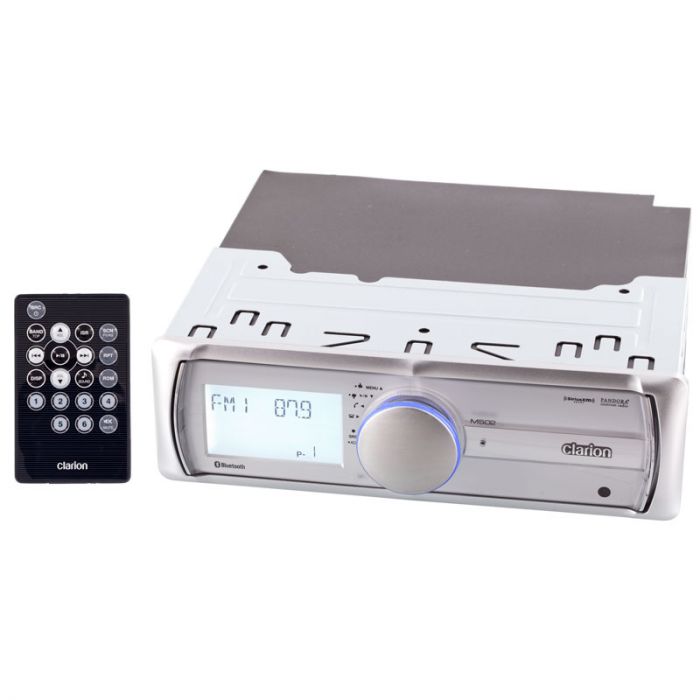

Clarion M502 Marine MP3/WMA Receiver with USB and Bluetooth

Description

Unit includes: Marine stereo, DIN mounting cage, Wire harness, Radio back strap, DIN keys, DIN trim, and Instruction manual

Clarion M502 Marine MP3/WMA Receiver with USB & Bluetooth®

Features:

Single DIN In-Dash Marine Stereo Digital Media receiver
Does not contain a CD player, unit is designed as a streaming audio player with satellite radio and Bluetooth
Pandora Link integrates this marine stereo with your iPhone and Pandora Internet Radio
Built in Parrot Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
Large 2 Line 13 Segment LCD Display with White LED Back-light
7-way control knob operates similar to an iPod wheel, providing intuitive access to functions
Unit is not sealed for moisture, for areas that get wet the unit is compatible with Waterproof Clarion MW1 Marine wired remote controls
AM/FM radio tuner
Beat-EQ with 4 sound fields: Bass-Boost, Impact, Excite, and Custom
Magna Bass Extend which emphasizes the deep bass range with dynamic sound
Speaker Power Output: 4 channels x 50 watts peak and 4 channels x 18 watts RMS
MP3, & WMA playback from CD's
Subwoofer level control
Internal Bluetooth microphone unit is compatible with optional external microphone Clarion RCB199 External Microphone for Clarion receivers
Satellite Radio ready with iTunes tagging requires SiriusXM SXV200V1 Connect Satellite Radio Tuner
iPod compatible with iPhone / iPod supplied USB cable
iPod Video compatible with the Clarion CCA-750 iPod cable

Media playback features:

Plays MP1, MP2, MP3, WMA on USB
MP3 ID3 tag information, display artist and song information
iTunes® Tagging on SiriusXM
Pandora® Radio App Compatible with proper cable or Bluetooth
Pandora® Thumbs up and Thumbs down Capable
ABC search function makes finding your media easy

Audio features:

Includes PLL synthesized AM & FM tuner with 18 FM & 6 AM preset stations memory
Selectable USA, Australia and European radio frequencies sets
Rotary Knob Controls: Volume, Fader, Bass, Treble, Balance, DBass
CD text information, display artist and song information
MP3 ID3 tag information, display artist and song information
iTunes Tagging lets you tag and download songs you hear and want to buy

Parrot® Bluetooth features:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
Optional External microphone with 10 foot cord for optimal placement
Bluetooth 2.0+ certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
Bluetooth range up to 32.8 ft

Equalizer and Crossover settings:

Beat-EQ with 4 sound fields: Bass-Boost, Impact, Excite, and Custom
3-Band Parametric EQ with adjustable frequencies and Q
Bass adjustment: Selectable between 50Hz, 100Hz, 200Hz ± 7dB
Bass Q settings: 0.7, 1.0, 1.4, 2.0
Mid adjustment: Selectable between 500Hz, 1kHz, 2kHz ± 7dB
Mid Q settings: 0.7, 1.0, 1.4, 2.0
Treble adjustment: Selectable between 5kHz, 10kHz, 15kHz ± 7dB
Treble Q settings: 0.7, 1.0, 1.4, 2.0
High pass filter points: Full / 60Hz / 90 Hz / 120 Hz
Low pass filter points: Full / 60Hz / 90 Hz / 120 Hz
Magna Bass Extend: On / Off
Subwoofer volume control

Inputs and outputs:

2 - RCA Audio 2 Volt preamp outputs (Front and Rear or Subwoofer)
1 - SiriusXM radio input
1 - External Microphone input
1 - RCA audio input
1 - Clarion Marine Remote Control input (Compatible with the Clarion MW1)
1 - Antenna input
1 - USB input (Compatible with up to 32Gb)

Dimensions:

Single DIN chassis
Dimensions: 7"W x 6-3/8"D x 2"H

Specifications

More Information
Manufacturer	Clarion
Part Number	M502
Chassis Size	Single DIN
Illumination color	White
Faceplate features	None
Disc Playback	No
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	No
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
Front mounted auxiliary input	None
Audio Video inputs	1 Audio Input
USB input	Yes
SD Card input	No
Audio Formats	Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	2 Pairs (Front, Rear/Sub)
Preamp voltage	2 volts
Steering Wheel Control	Yes, requires external module
Built in Crossover	High-pass, Low-pass
Wireless Remote Control	Yes
Warranty	1 Year
UPC Code	729218019870
Return period	30 days
Exchange period	30 days
