DISCONTINUED - Clarion NX404 Double DIN In-Dash 6.2" DVD/MP3/USB Touchscreen Car Stereo Receiver with MirrorLink, Bluetooth and GPS

DISCONTINUED - Clarion NX404 Double DIN In-Dash 6.2" DVD/MP3/USB Touchscreen Car Stereo Receiver with MirrorLink, Bluetooth and GPS

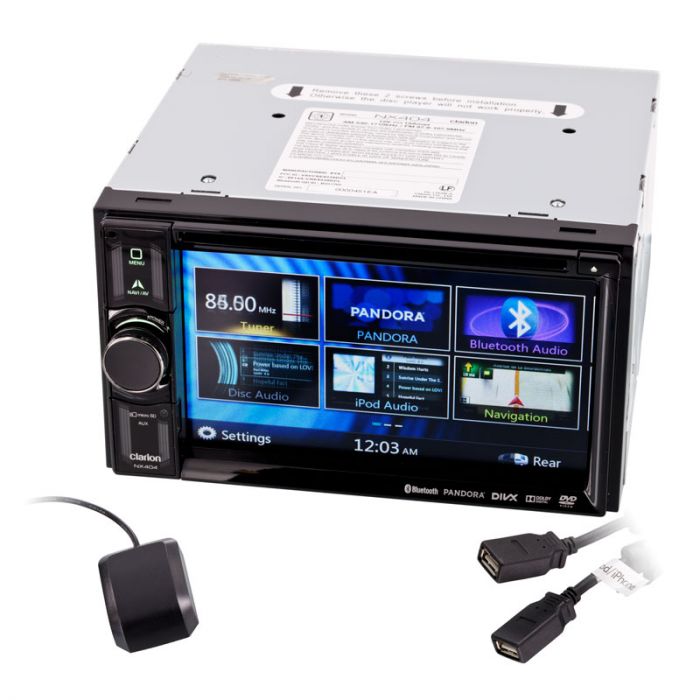

Clarion NX404 Double Din In Dash GPS Navigation system - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Clarion NX404 Product Highlights

  • In Dash 6.2 inch Multimedia receiver with Iphone and Android direct control
  • Touchscreen with Multi-touch gestures like pinch to zoom, swipe and scroll
  • Built-in Bluetooth for hands-free calling with phone book access, dial pad, and included microphone
  • Built in AM/FM radio tuner
  • Mirrorlink for iPhone® and Android™
  • Over 11 Million POIs and Text-to-Speech Voice Guidance
  • HDMI AV Input
  • Dual Rear USB Ports and Micro SD Card Slot
  • 3 2-Volt RCA Preouts (4V)

Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Double DIN radio, Wiring harness, Mounting hardware, Back strap, GPS sensor, Quick start guide, CD instruction manual, Magnetic pad, and Instruction manual

Android and iPhone Connectivity

Clarion NX404 HDMI connection for smartphones

Connect your iPhone or Android phone and have full access to you music, movie and picture gallery! The Clarion NX404 offers an HDMI input for stunning audio and video quality and offers full access and control of all your media library.

Pandora Connectivity and Control

Clarion NX404 Pandora connection for smartphones

Discover new artists or listen to some old favorites, with Pandora you get personalized internet radio tailored for your taste in music. With the Clarion NX404 in-dash navigation system you get full control, like giving a song a thumbs up or thumbs down; or even bookmarking a song for later purchase. While inside the app, you can also view album art, full track data, switch between the different radio stations you have chosen

Clarion NX404 Pandora control for smartphones

Dual Zone Entertainment
Clarion NX404 Dual Zone Control

A passenger sitting in your rear seat can enjoy audio and video uninterrupted, even if the driver and front passenger are listening to a different song or operating the navigation functions.

Bluetooth Connectivity
Clarion NX404 Bluetooth connectionBluetooth integration allows you to stay safe and abide by local laws since you will be fully hands-free as you make calls directly through the dashboard of your vehicle on the Clarion NX404 system. Connected via a Bluetooth-enabled phone. There are no complicated settings to navigate through as the in dash automatically pairs the two devices together in seconds. Bluetooth-enabled phones can also wirelessly stream many different kinds of audio and music directly to the radio with full control on the touchscreen.

GPS Navigation with Touchscreen with Gesture controlClarion NX404 GPS Navigation

The NX404 features a 3D onboard navigation system for all 50 states including Puerto Rico and Canada. With Multi-touch gestures like pinch to zoom, plus simple swipe and scroll controls put everything at your fingertips.

Clarion NX404 In Dash 6.2" WVGA Touchscreen with SmartPhone-Inspired User Interface, Bluetooth, Dual USB Inputs, HDMI AV Input, and MirrorLink Ready features:

  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
  • Flick capable touchscreen for great touchscreen control, operates just like a mobile phone with gesture control
  • Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
  • LCD screen Resolution: 800 x 480 Pixels
  • LCD screen has LED Backlighting
  • Limitless button illumination colors, match nearly any factory color
  • Selectable backgrounds
  • CEA2006 Compliant Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 18 watts RMS
  • 12 hours or 24 hours clock display
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Jpeg picture viewer - View all of the pictures you took on your mobile phone right on the screen of the radio
  • Digital movie viewer - Watch all of the movies you recorded on your mobile phone right on the screen of the radio
  • Android Mirrorlink ready with optional Clarion CCA771 HDMI cable for Android phones
  • iPhone 4 and 4S connection with CCA700 HDMI cable. 30-pin Digital AV Adapter
  • iPhone 5 and 5S connection with CCA700 HDMI cable. Requires the Lightning Digital AV Adapter
  • Wireless Pandora Control for iPhone® and Android™ through Bluetooth streaming
  • Dual zone control - People in the back of the vehicle can listen and view something different than the front passenger and driver
  • Advanced Touch Slide Operation
  • Rear-View Camera Support

Media playback features:
  • Plays DVD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, WMA, DivX, and AVI
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA Audio Playback on CD / DVD / USB / SD Card
  • MP3 ID3 tag information, display artist and song information
  • JPEG image playback on Mobile Phone / USB / SD Card
  • MP4 / DivX / AVI playback on Mobile Phone / DVD / USB / SD Card
  • H.264/WMV Video Playback on Phone / DVD / USB / SD Card
  • FLAC Audio Playback on Phone / DVD / USB / SD Card
  • Dolby® Digital Decoder for surround sound
  • Pandora® Radio App Compatible with proper cable or Bluetooth

Audio features:
  • 192 kHz / 24-bit D/A Converter for high quality digital to analog conversion
  • Beat EQ with three preset EQ's: BASS BOOST, IMPACT, and EXCITE settings
  • Custom tune using Beat EQ with 3 parametric centers: Bass, Midrange, and Treble. Adjust level and range
  • High-Pass filter with variable slopes and crossover frequencies
  • Variable Subwoofer level control with selectable Low-Pass digital crossover filter 60 Hz, 120Hz

Tuner features:
  • Includes AM & FM tuner with 18 FM and 12 AM preset stations memory
  • RDS (Radio data service) Tuner

Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Internal microphone with 6 foot range for optimal performance
  • Optional Clarion RCB199 external microphone with 10 foot cord for optimal placement
  • Bluetooth certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Inputs and outputs:
  • 3 - 2V preamp outputs (Front, Rear and Subwoofer)
  • 1 - 3.5mm front audio video input
  • 1 - Rear Input for Rear Camera
  • 1 - Rear video output to connect to an external monitors for dual zone
  • 1 - Audio video input for connection to external source
  • 1 - External microphone audio input
  • 1 - Steering wheel control input
  • 2 - Rear USB connection accepts up to a 32Gb
  • Front - SD memory card reader behind faceplate accepts up to a 32Gb memory card
  • Steering wheel control input requires ASWC steering wheel interface
  • Direct connect for iPod with cable - Full on screen control see above for cables

Navigation features:
  • Built-in Teleatlas GPS Navigation with 8Gb storage
  • Navigation has mapping information with US, Alaska, Hawaii, Canada, and Puerto Rico
  • Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
  • Over 11 million points of interest and offers real time traffic
  • Lane assist tells the driver which lane they should be in at any given time
  • 3D Hybrid Sensor (Gyro & G-Force)
  • 2D and 3D Landmarks display - see buildings freeways in stunning 3D display
  • English, Spanish, and French languages

  • Double DIN chassis
  • Dimensions: 7"W x 6-7/8"D x 4"H

Technical Specifications

Manufacturer Clarion
Part Number NX404
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 5 inch - 6 inch
Illumination color Full Color
LCD Screen Brightness 400 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input 3.5 mm audio/video input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input Yes, microSD Card
USB input Dual USB
HDMI input Yes
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology N/A
Audio Formats FLAC, Mpeg-3, WAV, WMA
Video Formats Divx, H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Navigation Built in
GPS Maps USA and Canada
Text to Speech Yes
Traffic Tuner Built in Traffic Tuner
Points of Interest 10 - 11 Million
Integration Module N/A
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 729218020661

Write Your Own Review

You're reviewing: DISCONTINUED - Clarion NX404 Double DIN In-Dash 6.2" DVD/MP3/USB Touchscreen Car Stereo Receiver with MirrorLink, Bluetooth and GPS

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by, Saturday, June 12, 2055


Will this Double Din radio fit my vehicle?


  • Posted by Store Owner on Wednesday, June 13, 2018
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
Posted by Renee Bugbee, Saturday, January 31, 2015


Are the USB inputs powered? Will they charge your iPhone when you plug in?


  • Posted by Store Owner on Saturday, January 31, 2015
    A: The USB inputs prove 5 volts at 500 ma which is enough to charge your phone.
