Discontinued - Pyle PL-A4120 Chopper Series 1000 Watts 4 Channel High Power Mosfet Amplifier
$133.99
Out of stock
SKU
31563
Expert Knowledge
Talk to a specialist

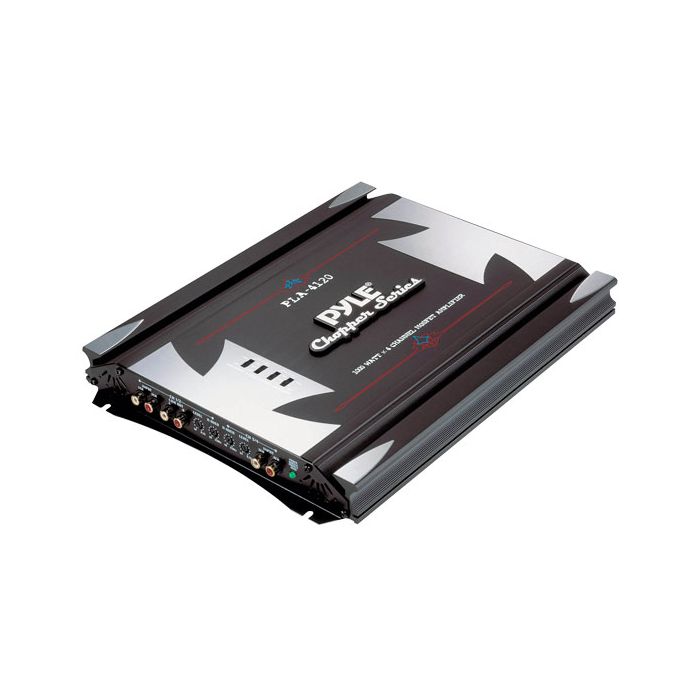

Discontinued - Pyle PL-A4120 Chopper Series 1000 Watts 4 Channel High Power Mosfet Amplifier
Unit includes: Amp
Pyle PLA-4120 Chopper Series 1000 Watts 4 Channel High Power Mosfet Amplifier
Pyle PLA-4120 Chopper Series 1000 Watts 4 Channel High Power Mosfet Amplifier
- Overview
- High Performance 1000 Watt 4 Channel
- High Power MOSFET Amplifier
- 250 Watts x 4 Output
- 500 Watts x 2 Bridged Output (250 x 2 + 500W x 1)
- Dual Variable Hi/Lo Electronic Crossover Network
- Dual Switchable Bass Boost
- Dual MOSFET PWM Power Supplies
- Variable Input Level (Gain) Control
- Thermal / Overload / Short Circuit Protection
- Power & Protection LED Indicators
- Low Level Inputs
- Gold Plated RCA Inputs & Outputs
- Slim Size Amplifier Design For Easy Installation
- Remote Turn On/Off
- Soft Turn-On Circuit
- Anti-Thump Turn-On
- Tri-Mode Configurable
- S/N Ratio: >95dB
- T.H.D: <0.04%
- FREQ. RESPONSE: 15Hz- 30kHz
- 2x10 Amp Maxi Type Fuse
- Dimensions: 10.63" W x 1.42" H x 13" L
- Features
- Crossover mode selector: When used with normal, full range system, set this switch to "FULL" . If you wish to use the internal crossover to power a driver or specific frequency range, use the "LPF"or "HPF" FOR the "LOWPASS" OR HIGHPASS" settings.
- Input level controls: Enables the matching of input levels to the output levels from head unit (or other signal source). The input sensitivity of adjustment ranges from 6V to 200mV.
- Crossover frequency control: When crossover mode selector is in HIGHPASS mode, this control sets the lower frequency limit for audio program sent to the speakers. When crossover mode selector is in LOWPASS mode, this control sets the upper frequency limit for audio program sent to the speakers. The crossover is continuously variable adjustment from 40 t0 250 Hz.
- Bass boost level selector: This selector switch permits the bass level an increase of 18dB.
- Bass boost level control: This control permits adjustment of the bass level up to an increase of approximately up to 18dB.
- Sub sonic control: When the sub sonic selector switch is in "ON" mode, this filter control permits continuously variable adjustment from 10 to 100Hz.
- Low level input: This amp features gold-plated RCA type jacks for high impedance input. Use these with car stereo output which uses RCA type connector cables.
- High level input: If your car stereo jacks RCA type output, use this adaptor to connect the high-low level input adaptor to connect the speaker output leads of car stereo and the RCA input jacks of amp.
- AUX line outputs: This amp features gold-plated RCA jacks for AUX line outputs. Use these outputs. Use these for unlimited system expansion to the next CHOPPER.
- Power LED: This indicator is illuminated in GREEN when power is applied.
- Protection LED: This indicator is illuminated in RED when the built-in protection circuitry is actirated.
- Power fuse: The fuse protects the amplifier and your car's electrical system from short circuit conditions.
- Power terminals: Use these connectors to deliver power, ground, and remote turn-on control to the amplifier.
- Speaker connectors: These terminals are 14K gold plated to guarantee high conductivity and minimum signal loss.
- Instruction Manual
| Manufacturer | Pyle |
|---|---|
| Part Number | PLA4120 |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 2 ohms |
| Strappable Amplifier | No |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 68888880305 |
| Return period | 30 days |
| Exchange period | 30 days |
