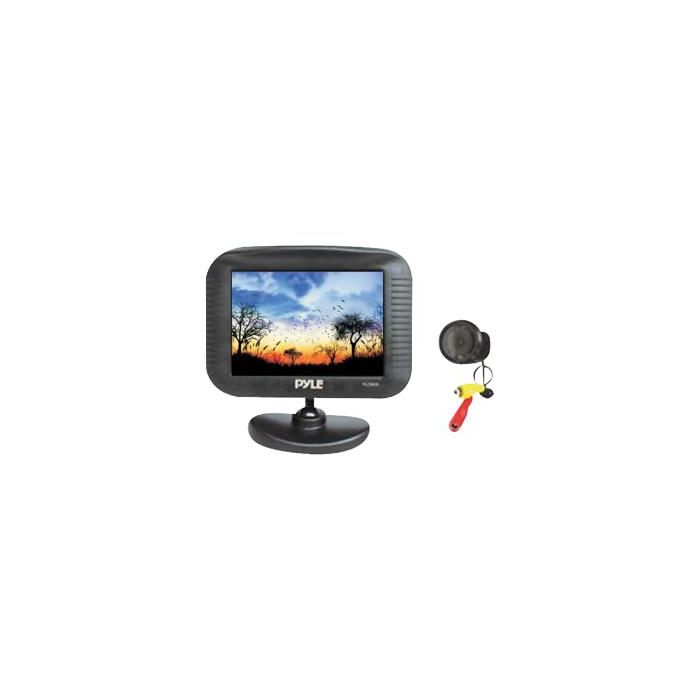

DISCONTINUED - Pyle PLCM35 3.5" TFT LCD Monitor with night vision back up camera kit
$67.99
Out of stock
SKU
28443
Expert Knowledge
Talk to a specialist
- Small 3.5" LCD Screen
- 17-ft male to male RCA video cable Included
- 10 IR LED Lights for Night Vision
- Required Drill Cut Out Tool Included
Unit includes: 3.5" LCD monitor, Flush mount camera, Wiring harness, and Instruction manual
Pyle PLCM35 3.5" TFT LCD Monitor with nightvision back up camera kit features:
Pyle PLCM35 3.5" TFT LCD Monitor with nightvision back up camera kit features:
- 3.5'' TFT LCD stand monitor
- Automatically switch when reversing
- 1 video input
- NTSC system
- Brightness: 200 cd/m
- Contrast: 200:1
- Screen dim: 4"W x 4.1"H x 1.4"L
- 17-ft male to male RCA video cable
- Required drill cutout tool
- Image sensor: OV7910 color CMOS
- Total pixels: 510 x 492
- Resolution: 380 TV Lines
- Night vision low lighting capable
- 10 IR LED Lights
- Min. illumination: 0.5 LUX
- Auto image adjustment
- Video output: 1.0 Vpp-75Ω
- Power Supply: DC 12V 200 mA
- Camera dim: 1.25"H x 1.25"W x 1.77"D
| Manufacturer | Pyle |
|---|---|
| Part Number | PLCM35 |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 510 x 492 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD Screen Brightness | 200 Nit |
| LCD back light type | LED |
| Trigger wire | Auto video sense trigger |
| Modulation | NTSC only |
| Slide track on back | No |
| Image Flip Function | No |
| Built in Speakers | No |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 1 Video Input |
| Wireless Remote Control | Yes |
| Monitor Type | Stand alone monitor |
| Back up camera type | Flush Mount Key hole camera |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMOS |
| Camera diameter | 1.25"H x 1.25"W x 1.77"D |
| Viewing Angle | 110 degrees |
| Parking grid lines | No |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Connector Type | RCA Cable |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-15 Volt DC |
| Warranty | 1 Year |
| UPC Code | 068888892506 |
| Return period | 30 days |
| Exchange period | 30 days |
