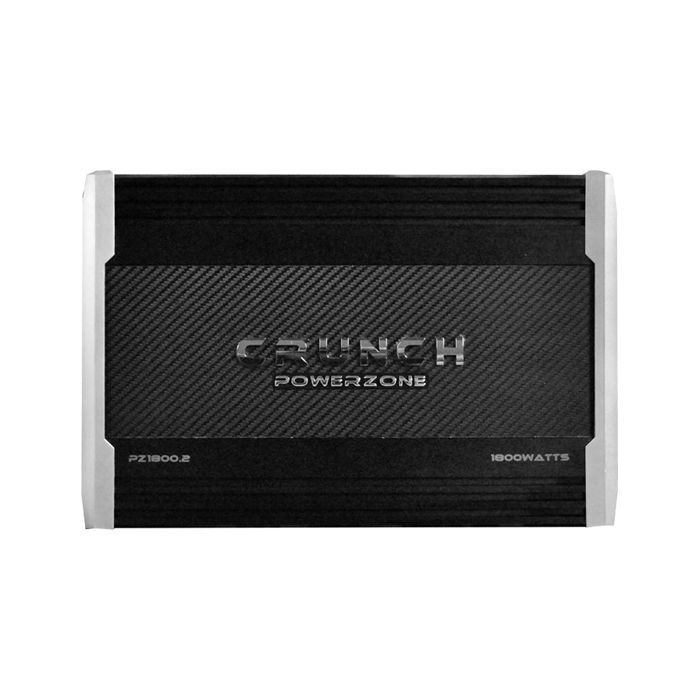

Discontinued - Crunch PZ1800.2 Power Zone Series 1800 Watt 2-Channel Class AB Amplifier

Discontinued - Crunch PZ1800.2 Power Zone Series 1800 Watt 2-Channel Class AB Amplifier

Crunch PZ1800.2 Power Zone Series 1800 Watts 2-Channel Class A & B Amplifier

More Views

Crunch
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Crunch PZ1800.2 Product Highlights

Discontinued - Crunch PZ1800.2 Power Zone Series 1800 Watt 2-Channel Class AB Amplifier
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: 1800 Watts 2-Channel Class A & B Power Zone Amplifier

Crunch PZ1800.2 Power Zone Series 1800 Watts 2-Channel Class A & B Amplifier for Vehicles features:
  • Helps enhance the signal power of car stereo system for superior audio quality
  • Efficiently converts DC to AC with Exponential Variable-Power Supply
  • Designed with Pulse width modulated MOSFET power supply
  • LED indicators: green for power and red for protection
  • Variable Bass boosts from 0 to 9 dB at 45 Hz
  • Equipped with soft start turn-on that helps reduce the load and makes start-up easier
  • Two or one channel operation
  • Provides four way protection circuitry, which includes DC, thermal, overload and speaker short protection
  • Accepts high-level speaker input with signal sensing and facilitates automatic turn-on
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Gives preamp RCA output to daisy chain multiple amps
  • For utmost heat dissipation, a heavy-duty aluminum alloy heat sink is incorporated in its design
  • Frequency Response: 30 Hz to 45,000 Hz
  • Variable High-Pass Filter: 60 Hz to 1200 Hz
  • Variable Low-Pass Filter: 30 Hz to 250 Hz
  • Requires 4 gauge power and ground wiring for installation
  • Power Zone Series 1200 Watts 2-Channel Class A & B Amplifier for Vehicles

Maximum Power Rating:
  • 4 ohms: 450 watts x 2 channels
  • 2 ohms: 900 watts x 2 channels
  • Bridged, 4 ohms: 1800 watts x 1 channel


Technical Specifications

Manufacturer Crunch
Part Number PZ1800.2
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output 2001 - 2500 watts
Total RMS Power Output No
Amplifier Bridging No
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage No
Speaker level inputs Yes
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 806576220220
