Rockford Fosgate M600-4D 600 Watt Full-Range Marine Class-D 4-Chanel Amplifier

Rockford Fosgate M600-4D 600 Watt Full-Range Marine Class-D 4-Chanel Amplifier

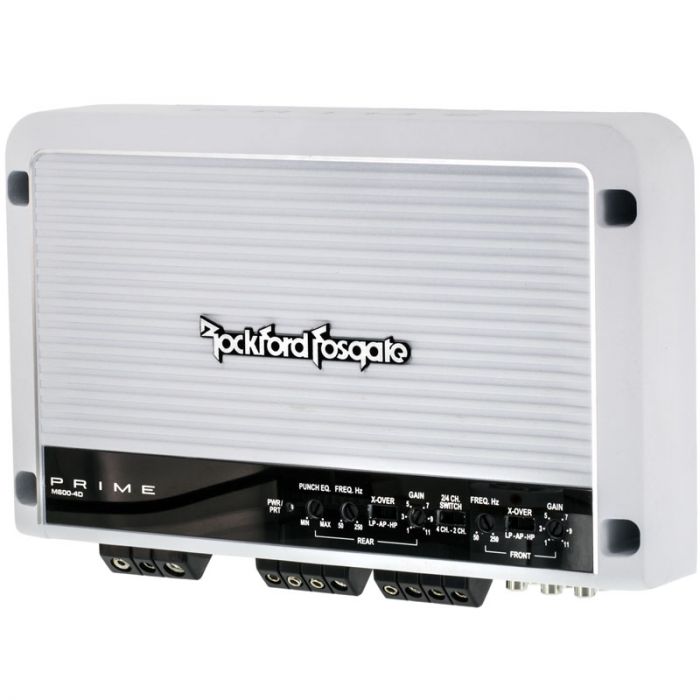

Rockford Fosgate M600-4D 600 Watt Full-Range Class-D 4-Chanel Amplifier - Main

More Views

Rockford Fosgate
Ships Free!

Overall Rating 5 (Based on 1 reviews)

Rockford Fosgate M600-4D Product Highlights

  • It has a 12dB/octave Butterworth crossover with 2/4 channel input switch.
  • It has a 4 Gauge power/ground connectors.
  • It features a cast aluminum heatsink for effective heat dissipation.
  • It comes with top mounted controls.
  • It includes a tri-stage protection that covers thermal, over-circuit and short circuits.
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Marine grade PC Board, on-board Punch EQ, variable crossover and tri-state protection circuits

Rockford Fosgate M600-4D 600 Watt Full-Range Class-D 4-Chanel Amplifier:

  • 12dB/octave Butterworth crossover
  • 2/4 channel input switch
  • 4 Gauge power/ground connectors
  • Cast aluminum heatsink
  • Top mounted controls
  • Marine grade 2-part epoxy coated PCB
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Tri-stage protection covers thermal, over-current and short circuits.
  • 1 Year Standard Warranty

Inputs and Outputs:
  • 2 RCA pair low level input
  • 1 RCA pair low level output
  • Block 4AWG speaker input connections
  • Block 12 AWG speaker output connections

Max Power Output:
  • 600 Watts

RMS Power Output:
  • 4-Ohm: 100 Watts x 4
  • 2-Ohm: 150 Watts x 4
  • 4-Ohm Bridged: 300 Watts x 2

Built in Crossover:
  • Front Channels: Variable 50Hz - 500Hz @ 12dB/octave
  • Rear Channels: Variable 50Hz - 500Hz @ 12dB/octave

  • Overall Dimensions: 1.97” (H) x 6.77” (D) x 11.06” (W)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number M600-4D
Amplifier Topology Class Class D
Number of Channels 4 Channel
Total Peak Power Output 1,200 watts
Total RMS Power Output 600 watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 2 volts
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color White
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
UPC Code 780687340810

Customer Reviews

Excellent power
Review by
Install (5 star for easy)
I am a bit surprised at the power of this amp. My boat rocks and can't wait for the summer! (Posted on 1/21/2017)

Write Your Own Review

You're reviewing: Rockford Fosgate M600-4D 600 Watt Full-Range Marine Class-D 4-Chanel Amplifier

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Rockford Fosgate
Ships Free!
Your Price: $449.99
$0.00 Tax Outside CA
Item sku:M600-4D
Availability:In stock
Free shipping on all orders over $99!
