Discontinued - Tview RV102C 10.2 inch TFT LCD rear view mirror monitor
Discontinued - Tview RV102C 10.2 inch TFT LCD rear view mirror monitor
Key Features
Discontinued - Tview RV102C 10.2 inch TFT LCD rear view mirror monitor

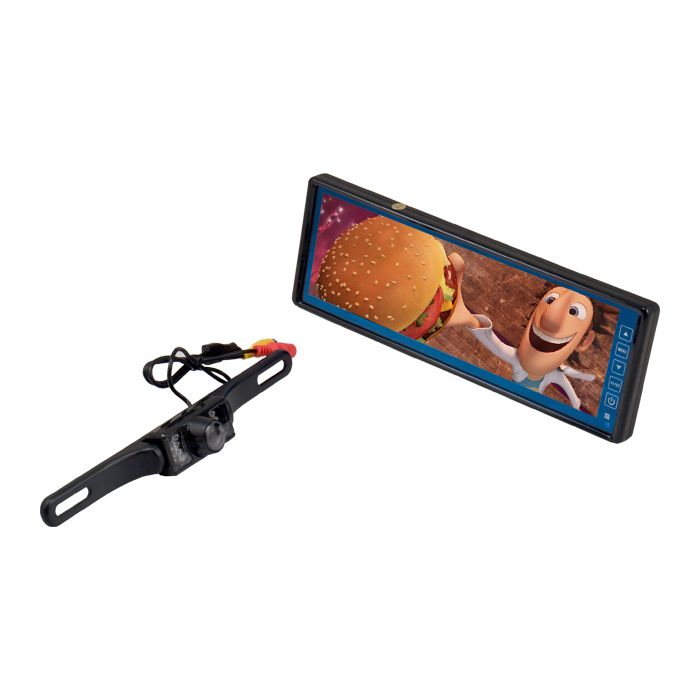

Unit includes: Rear view mirror monitor, License plate camera, Remote control, and Wiring harness
Tview RV102C 10.2 inch TFT LCD rear view mirror monitor features:
10.2" Rear View Mirror Monitor
Display Mode: Left 4.5", 5.6" , 7", 8.5", 25:8 (full screen)
Right 25:8(full screen), 8.5", 7", 5.6", 4.5"
Touch Buttons
Power Supply: DC12V
Operation Temperature: 00C~600C
Video System: Multi System
View Angle: U300, D300, L600, R600
Resolution: 800XRGBX240
2 Video Inputs
Image Brightness/Saturation/Mode/Reset/
Contrast/Hue/OSD Language adjustable
Last Memory Play Function
Unit Size: 10.7"X4.3"X1.0"
Net Weight: 0.9KG
Specification for the camera
CMOS CAR CAMERA
Pickup Device: 1/3" OV7910 CMOS
Pixel: 628 x 582
Resolution: 420 TVL
Illumination: 2.0 Lux
Built-in Lens: 6mm
Output Standard: PAL/NTSC
Video Output: 1.0Vpp composite Video at 75 Ohms
Operation Temperature: -200C ~ 500C
Power Supply: DC 12V > 200mA
Dimension (mm): 260 x 32
Night Vision Function
More Information
Manufacturer
Tview
Part Number
RV102C
LCD Screen Size
9 inch - 10 inch
Native Screen Resolution
800 X 240
Widescreen Display
16:9 Widescreen Display
LCD Screen Brightness
300 Nit
LCD back light type
CCFL
Trigger wire
Yes
Modulation
NTSC and PAL
Slide track on back
No
Image Flip Function
No
Built in Speakers
No
Auto on/off
Yes
Cigarette Lighter Cord Included
No
Audio Video inputs
2 Video Inputs
Wireless Remote Control
Yes
Monitor Type
Rearview mirror monitor
Mirror Mount Type
Clip On
Back up camera type
License Plate Camera
Built in Bluetooth
No Bluetooth
Reverse Image
Yes - Reverse Image
Camera Sensor type
CMOS
Camera diameter
2.8 mm
Viewing Angle
170 degrees
Parking grid lines
No
Built in Microphone
No
Infrared Illumination
Yes
Waterproof ingress protection
IP67 - Dust; Immersion up to 1 m
Connector Type
RCA Cable
Wireless Transmission
Wired connection
Color
Black
Operation Voltage
12-15 Volt DC
Warranty
1 Year
UPC Code
102068683771
Return period
30 days
Exchange period
30 days
