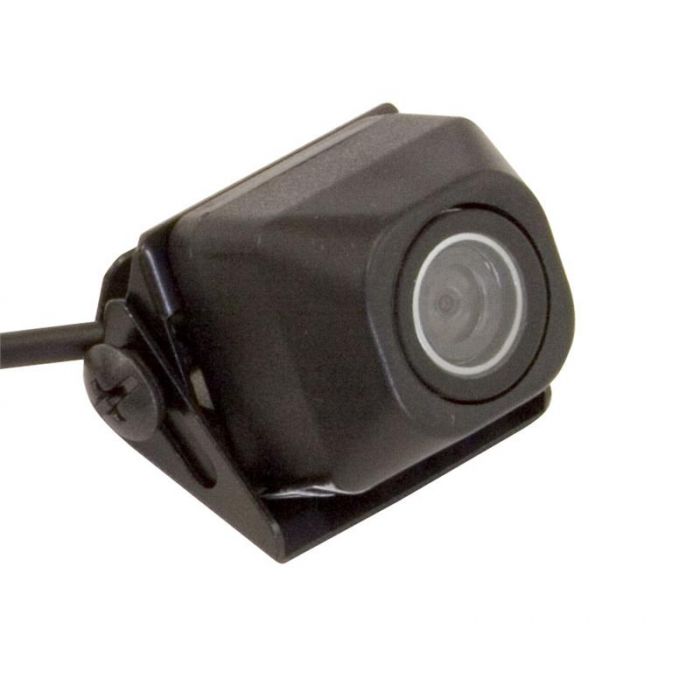

Accelevision RVC1000 Surface Mount super small back up camera
More Views
Accelevision
Ships Free!
Accelevision RVC1000 Product Highlights
- CCD Lens
- Adjustable Mounting Bracket
- Micro Size
- Low Light Sensitive
Overview
Unit includes: Back up camera, Mounting tab, 20ft pigtail
RVC1000 Color surface mount reverse image back up camera Details:
RVC1000 Color surface mount reverse image back up camera Details:
- 1/3" color CCD sensor
- 2.96mm lense
- Selectable Mirror or non mirror input wire
- Super small
- Scanning system: 2:1 interface
- Resolution 480,2011, TV lines
- AGC: auto White balace: auto
- Electronic shutter: 1/60 - 1/10,000 second
- Current consumption: Max 100mA. Power supply 12V DC
- Lens f=2.96mm / F=2.0 120 degree view angle
- .3 Lux light sensitivity
- Dimensions: 1.025" (W) x 1" (D) x .857" (H)
- One year warranty parts & labor
Technical Specifications
| Manufacturer | Accelevision |
|---|---|
| Part Number | RVC1000 |
| Auto Dimming | No |
| Camera Sensor type | CCD |
| Back up camera type | Surface Mount Camera |
| License Plate Camera Type | No |
| Camera diameter | No |
| Viewing Angle | 120 degrees |
| Wireless Transmission | No |
| Waterproof ingress protection | No |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | No |
| Infrared Illumination | No |
| Built in Microphone | No |
| Trigger wire | No |
| Auto on/off | No |
| Connector Type | RCA Cable |
| Modulation | No |
| Operation Voltage | No |
| Battery Powered | No |
| Cigarette Lighter Cord Included | No |
| Color | Black |
| Case included | No |
| Built in Speakers | No |
| Overall Height | 0 Inches |
| Overall Length | 0 Inches |
| Overall Width | 0 Inches |
| Warranty | 1 Year |
| UPC Code | No |
Write Your Own Review
Ask questions receive answers.
Have a question? Go ahead and ask anything. We are here to help.
Please login to ask a product question
Installation Videos & Manuals
We show you the entire process of how to install a back up camera system in a Toyota Sienna.
There are a couple of ways to install and wire a back up camera system. We go through the different methods and explain the pro's and cons of each method. Then we take you through the process of removing the taillight and how to test for power. We explain vehicles with light control modules and the problems they pose. Then we make the connection at the taillight to a back up camera system.
We take you through all of the different back up cameras and system. Ww show you the differences and how to pick the right system for you.
We show you how to install any backup camera by breaking the installation down to 5 easy components and steps:
- Monitor
- Monitor cable
- Backup camera
- RCA cable
- DC power cord
