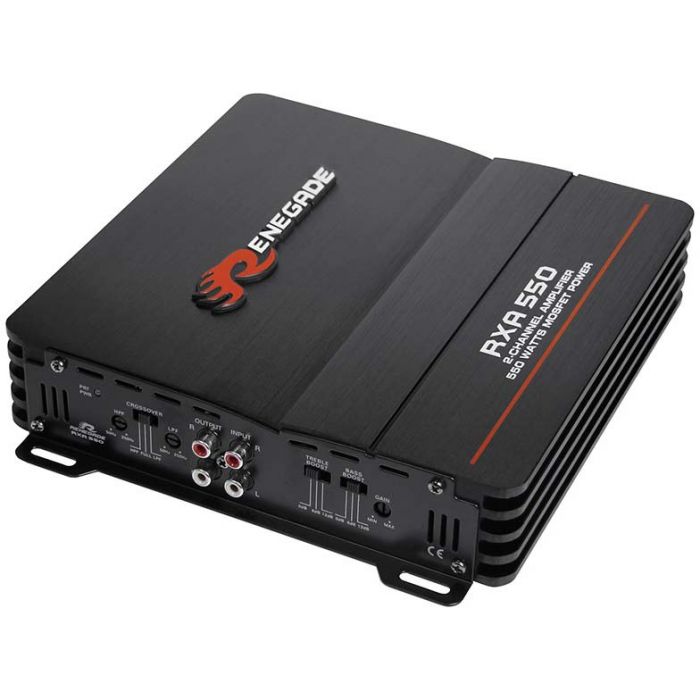

DISCONTINUED - Renegade RXA550 2 Channel Amplifier - 550 Watt Max

$74.99
Out of stock
SKU
RXA550

Key Features

  • Renegade RXA550 4 Channel Amplifier with 550 Watt Maximum output
  • 2 or 1 channel operation
  • 2 Channel Stereo Operation @ 4 ohms delivering 75 watts
  • 1 Channel Bridged Operation @ 4 ohms delivering 275 watts
  • 2 - Channel Low level RCA inputs
  • 2 - Channel High level speaker inputs
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual


Renegade RXA550 2 Channel Amplifier - 550 Watt Max
    Features:
  • Renegade RXA550 2 Channel Amplifier with 550 Watt Maximum output
  • 2 or 1 channel operation
  • Mono bridgeable
  • Full MOSFET power supply to ensure clean output and maximum power output
  • 2 Ohm stable in 2 channel mode
  • Frequency Response of 5 Hz - 40KHz, ± 3dB
  • Total harmonic distortion: less than 0.5%
  • Signal to noise ratio: > 90dB
  • Input impedance: 10 kOhm
  • Low Pass filter: Variable 50 - 200 Hz 12dB/octave
  • High Pass filter: Variable 50 - 2 KHz 12dB/octave
  • Variable Bass Boost: 40Hz - 0dB/+6dB/+12dB
  • Variable Treble Boost: 0dB/+6dB/+12dB
  • 2 - Channel Low level RCA inputs
  • 2 - Channel High level speaker inputs
  • Loop through RCA outputs
  • Fuse rating: 1 x 30 amp
  • Instruction Manual - Renegade RXA550 2 Channel Amplifier - 550 Watt Max Manual
    RMS Power Output:
  • 75 watts x 2 Channel (4 ohms)
  • 135 watts x 2 Channel (2 ohms)
  • 275 watts x 1 Channel
    Max Power Output:
  • 150 watts x 2 Channel (4 ohms)
  • 275 watts x 2 Channel (2 ohms)
    Inputs and Outputs:
  • High Level Input @ 250mV - 10V
  • Low Level Input @ 125mV - 7V
    Dimensions:
  • 1-7/8” H x 8-5/8” W x 9-3/4” L
    Warranty Duration:
  • Basic Warranty: 1 year
More Information
Manufacturer Renegade by Rockford Fosgate
Part Number RXA550
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 100 mV - 8 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 854932002423
