Clarion SRG1022R G Series 4" 180W Max. Coaxial Speaker System

Clarion SRG1022R G Series 4" 180W Max. Coaxial Speaker System

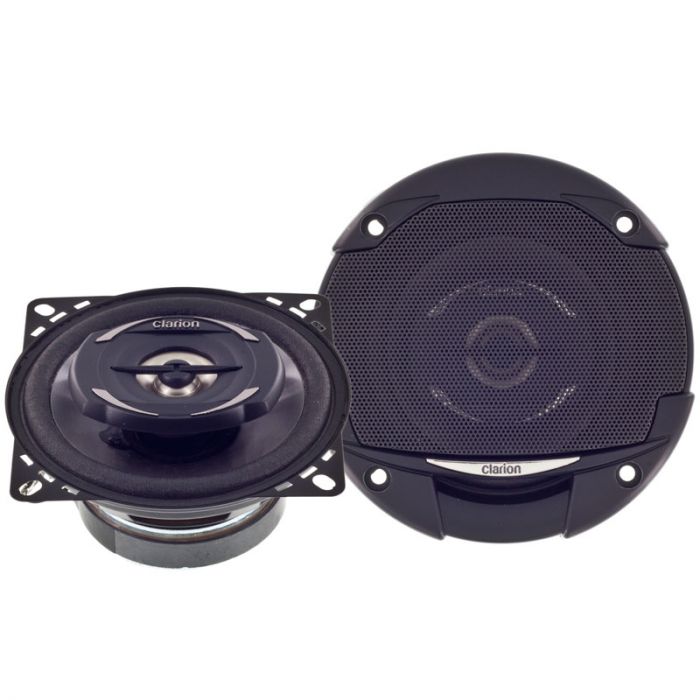

Clarion SRG1022R 4 inch 2-Way Car Speakers - Main

More Views

Clarion
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Clarion SRG1022R Product Highlights

  • 2-Way design with separate tweeter and woofer
  • 4" Woofer with MIPP Mica composite cone woofer
  • 1" Metalized PEI balanced-drive tweeter
  • 180 Watt power handling
  • Speaker Cut-out Size: 4-1/8"
  • Mounting Depth: 1-11/16"
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit includes: Two 4 inch coaxial speakers, Mounting hardware, Speaker grills, Speaker wire leads, and Instruction manual

Clarion SRG1022R G Series 4" 2 - Way Coaxial Speaker System features:
    Features
  • 2-Way design with separate tweeter and woofer
  • 4" Woofer with MIPP Mica composite cone woofer which makes it extremely light and fast for improved sensitivity and reduced distortion
  • 1" Metalized PEI balanced-drive tweeter that result in clearer output, polyether imide boasts high rigidity, high durability and high resistance to extreme heat
  • Count on crisp reproduction throughout the 2.5Hz - 30kHz frequency range with the Phaze 1 Balanced Drive tweeters. The integrated PEI diaphragm and voice coil bobbin, which dramatically improves the dynamic range of any sound system
  • 4.4 ounce Powerful Strontium Magnet for Dynamic Bass Response
  • .42 ounce Powerful Strontium Magnet for Crisp Treble Response
  • Smooth off-axis response
  • 1" Metalized PEI balanced-drive tweeter

  • Power Handling Max
  • Max power: 180 watts

  • Power Handling RMS
  • RMS Power: 30 watts

  • Quick Specs
  • Frequency response: 45 Hz to 30 kHz
  • Sensitivity: 90 dB
  • Impedance: 4 ohms
  • Type: 2-Way Coaxial

  • Dimensions
  • Speaker Grill Diameter: 5-1/8"
  • Speaker Cut-out Size: 4-1/8"
  • Mounting Depth: 1-11/16"

Technical Specifications

Manufacturer Clarion
Part Number SRG1022R
Speaker Size 4 inch -
Speaker system type 2 - way Coaxial
Frequency Response 45Hz - 30KHz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS Up to 300 watts
Power Handling Peak 180 Watts
Sensitivity 90 dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth $1.69
Color Black
Warranty 1 Year
UPC Code 729218019665
