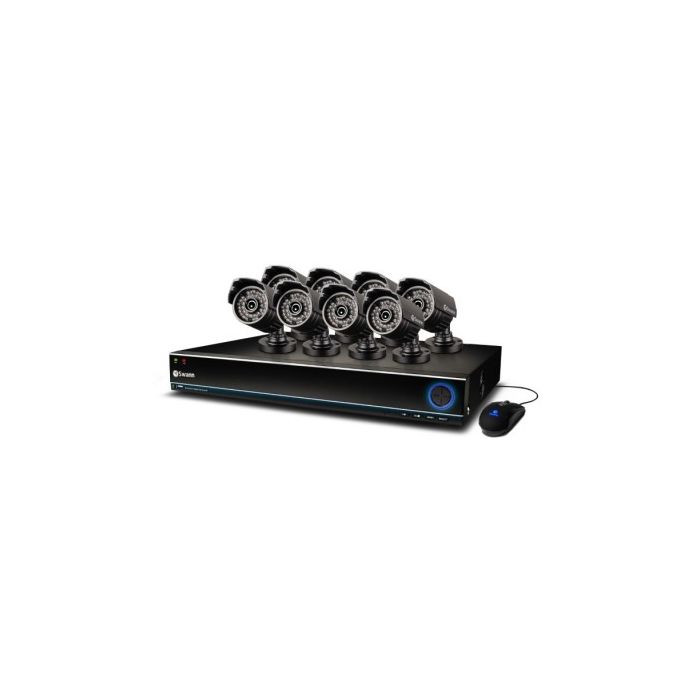

Swann SWDVK-163208S-US DVR16-3200 16 Channel 960H Digital Video Recorder and 8 x PRO-642 Cameras

Swann SWDVK-163208S-US DVR16-3200 16 Channel 960H Digital Video Recorder and 8 x PRO-642 Cameras

Swann SWDVK-163208S-US DVR16-3200 16 Channel 960H Digital Video Recorder and 8 x PRO-642 Cameras-left side

More Views

Swann
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Swann SWDVK-163208S-US Product Highlights

  • Swann's TruBlue blue-lit 960H DVR offers high resolution live video viewing and playback
  • The 960H is perfect for 16:9 monitors
  • The combo includes eight clear resolution 700TVL cameras with powerful night vision
  • It is rated IP67on the Ingress protection and weatherproof rating for indoor/outdoor use
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

The Unit Includes: DVR16-3200, 1 TB Hard Drive (installed), Eight PRO-642 Cameras, HDMI Cable, Eight BNC Cables 60 ft / 18 m, Power Adapters, Remote Control, Software CD, USB Mouse, Ethernet Cable, Mounting Screws and Plugs, Operating Instructions and Theft Deterrent Stickers

Swann SWDVK-163208S-US DVR16-3200 16 Channel 960H Digital Video Recorder and 8 x PRO-642 Cameras

DVR Video features:
  • Real time, widescreen high-resolution live video viewing and playback, perfect for 16:9 monitors
  • Includes 8 high resolution 700TVL cameras with night vision to 82 ft for indoor/outdoor use
  • Records continuously from 16 channels for 15 days+ onto a 1TB hard drive (even longer with motion detection)
  • Saves time by easily locating incident video and transfering to external storage via USB or network
  • Live view and playback on HDTV, LCD or plasma TV using HDMI® connection or on LCD screen via VGA port
  • My DVR customizable network configuration and DDNS service
  • Live viewing on 3G/4G-enabled smartphones and tablets using the free SwannView Pro app
  • NTSC or PAL Video Signal Type
  • Display Resolution
  • Up to 1080p
  • Display Frame Rate
  • NTSC: 30fps per channel / PAL: 25fps per channel

DVR Video inputs and outputs:
  • 960H 16 Channels BNC Video Inputs
  • VGA and HDMI Output
  • 16 RCA Input
  • 1 RCA Output

Camera features:
  • SwannTruColor Image Sensor - 700 TV Lines
  • Resolutions: NTSC: 976 x 494, PAL: 976 x 582
  • 0.1 Lux (IR off), 0 Lux (IR on) Minimum Illumination
  • Automatic White Balance
  • 50 dB Signal/Noise Ratio
  • Automatic Gain Control
  • Backlight Compensation
  • 4.8mm Lens
  • 57 degrees Viewing Angle
  • Night Vision Distance: 82 ft / 25 m
  • 36 Infra-Red LEDs
  • Indoor or outdoor, IP67 rated
  • Operating Power: DC 12V
  • Operating Temperature: -4° F ~ 140° F / -20° C ~ 60° C
  • Sturdy Aluminum Body Construction

DVR Internet features:
  • One RJ45 port for LAN Connection
  • SwannLink Peer to Peer Network Connection
  • Dynamic DNS (swanndvr.net, DYNDNS)
  • Remote Operation: IE, MyDVR, CMS, SwannView

Technical Specifications

Manufacturer Swann
Part Number SWDVK-163208S-US
Max DVR Channels 16 channel
DVR HDD Capacity 1 TB
Length No
Wireless Transmission No, wired connection
Infrared Illumination No
Built in Microphone No
Included cameras 8 cameras
Imager Manufacturer No
Camera Sensor type CCD
Sensor Size No
Camera diameter No
Lines of Resolution 700
Minimum Illumination 0.1 Lux (IR off), 0 Lux (IR on)
Color Camera Yes
Viewing Angle 60 degrees
IR LED Count 36
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) 50
Focus No
AGC (Automatic Gain Control) Built In
IR range (ft) No
OSD (On Screen Display) No
NTSC/PAL NTSC and PAL
Lens Included No
Lens Type Manual Zoom
Electronic Shutter Auto
Relative Aperture (F-stop) No
Focal Length (mm) 4.8mm
Color Black
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Ac Adapter included No
Operation Voltage 12 - 15 Volt DC
Power consumption Amps No
Connector Type RJ45 Connector
Signal type No
Warranty 1 Year
UPC Code 815849019232
