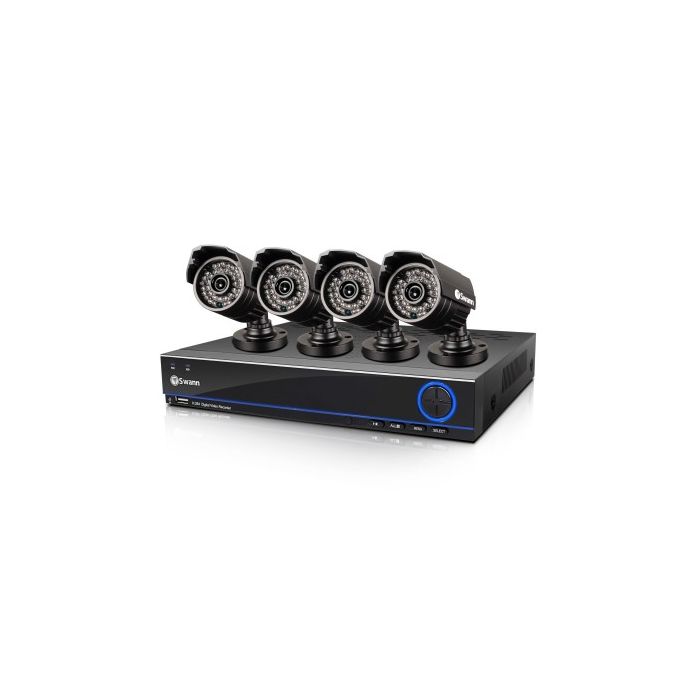

Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras
$450.99
Out of stock
SKU
SWDVK-832004S-US
Expert Knowledge
Talk to a specialist
- The set includes eight high-resolution cameras with 700 TV lines of resolution offered by CCD sensor and features IR night vision.
- The DVR system is expandable with provisions for up to four more cameras, constituting a full 8-channel security camera system.
- It is capable of recording continuously from 8 channels for more than 30 days continuously onto a 1TB hard drive and offers even longer duration with motion detection active.
The Unit Includes: DVR with Installed HDD, Four Cameras, HDMI Cable, DC Video Cable, Four 60' BNC Cables, Camera Power Adapter, BNC to RCA Adapter, 110 V AC/12V DC DVR Power Adapter, Remote Control, USB Mouse, Ethernet Cable, Camera Mounting Hardware, 4 Security Notification Stickers, Limited 1-Year Warranty
Swann SWDVK-832004S-US DVR8-3200 8 Channel 960H Digital Video Recorder and 4 x PRO-642 Cameras
DVR Video features:
- 8 Channels with Installed 1TB HDD
- Up to 1920x1080 Display Resolution
- 728x488 Resolution at 700 TVL
- Manual, Motion, and Scheduled Recording
- Multiple Users and Access Levels
- Remote Internet, Android/iOS App Access
- Four Indoor/Outdoor, Day/Night Cameras
- 36 IR LEDs with 82' Night Vision Range
- Four 60' Terminated Video/Power Cables
- IP67 Rated, Water and Dustproof
- NTSC or PAL Video Signal Type
- Display Frame Rate: 30 FPS per channel (NTSC), 25 FPS per channel ( PAL)
- Display Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080
DVR Video inputs and outputs:
- 8 x Channels BNC Video Inputs
- VGA and HDMI Video Outputs
Camera features:
- CCD sensor
- 4.8mm lens with 57° viewing angle
- 700 TVL, 728x488 resolution
- 36 IR LEDs with 82' night vision range
- Includes 60' of pre-terminated video/power cable for installation
- IP67 rated housing is water and dustproof
DVR Internet features:
- LAN Connection
- One RJ45 port Network Interface
- SwannLink Peer to Peer Network Connection
- Remote Operation with IE, MyDVR, CMS, SwannView
- DNS Support
| Manufacturer | Swann |
|---|---|
| Part Number | SWDVK-832004S-US |
| Max DVR Channels | 8 channel |
| DVR HDD Capacity | 1 TB |
| Length | 60 Feet |
| Wireless Transmission | Wired connection |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Included cameras | 4 cameras |
| Camera Sensor type | CCD |
| Lines of Resolution | 700 |
| Minimum Illumination | 0.1 lux (IR Off), 0 lux (IR On) |
| Color Camera | Yes |
| Viewing Angle | 60 degrees |
| IR LED Count | 36 |
| Infra-Red Wavelength | 850nm |
| Gain Control | Yes |
| Dynamic Range (dB) | 50 |
| Focus | Auto |
| AGC (Automatic Gain Control) | Built In |
| OSD (On Screen Display) | No |
| Modulation | NTSC and PAL |
| Lens Included | No |
| Lens Type | Manual Zoom |
| Electronic Shutter | Auto |
| Focal Length (mm) | 4.8 mm |
| Color | Black |
| Housing material | Metal |
| Vandal-proof | No |
| Outdoor | Yes |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Operation Voltage | 12-15 Volt DC |
| Connector Type | BNC Connector |
| Warranty | 1 Year |
| UPC Code | 815849018754 |
| Return period | 30 days |
| Exchange period | 30 days |
