Swann SWPRO-643CAM-US High-Resolution Dome Camera - Night Vision 85ft/25m

Swann SWPRO-643CAM-US High-Resolution Dome Camera - Night Vision 85ft/25m

Swann SWPRO-643CAM-US High-Resolution Dome Camera - Night Vision 85ft/25m-main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Swann SWPRO-643CAM-US Product Highlights

  • Professional grade dome camera with powerful night vision up to 82 ft./ 25 m
  • Offers 700 TVL resolution
  • Comes in a sturdy aluminum construction and suits both indoor and outdoor applications with IP67 housing to endure tough weather conditions
  • Features OSD (On-Screen Display) controller built-in to the camera cable which offers easy customization of camera
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


The Unit Includes: PRO-643 Camera, BNC Cable 60ft / 18m, BNC to RCA Adapter, Mounting Screws and Plugs, Operating Instructions, Theft Deterrent Stickers

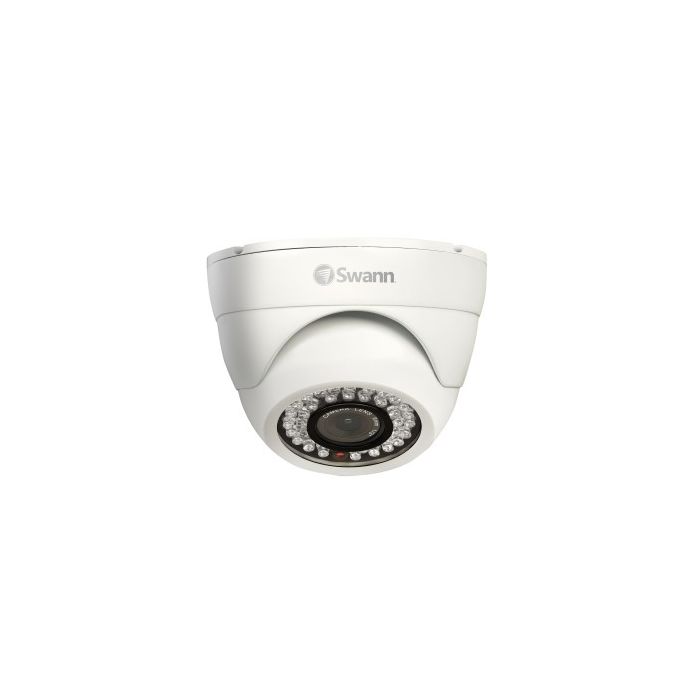

Swann SWPRO-643CAM-US High-Resolution Dome Camera - Night Vision 85ft/25m


  • Professional grade CCD Image Sensor with 700 TV Lines of resolution
  • Pixel density: NTSC: 976 x 494, PAL: 976 x 582
  • Functional at minimum illumination of 0.1 Lux (IR off), 0 Lux (IR on)
  • Color during day and switches to Black and White at night
  • Automatic White Balance, Automatic Backlight Compensation
  • 6 mm lens with 43º viewing angle, Electronic shutter
  • Night Vision Distance up to 82ft/25m
  • IR cut Filter, 36 Infrared LEDs
  • Indoor or outdoor, IP67 rated
  • Operating Power DC 12V
  • Operation Temperature -4° F ~ 122° F / -20° C ~ 50° C
  • Sturdy aluminum body construction

On screen controls

  • On the go surveillance from anywhere in the world


  • Weight: 1.36lbs / 620g

Technical Specifications

Manufacturer Swann
Part Number SWPRO-643CAM-US
Max DVR Channels No
DVR HDD Capacity No
Length 60 Feet
Wireless Transmission No
Infrared Illumination No
Built in Microphone Yes
Included cameras No
Imager Manufacturer No
Camera Sensor type CCD
Sensor Size No
Camera sensor diameter 4.8"x 4.8" x 4.0" / 120mm x 120mm x 100mm
Lines of Resolution No
Minimum Illumination 1 Lux
Color Camera No
Viewing Angle 60 degrees
IR LED Count 36
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) 50dB
Focus No
AGC (Automatic Gain Control) Built In
IR range (ft) No
OSD (On Screen Display) Yes
Modulation NTSC and PAL
Lens Included No
Lens Type No
Electronic Shutter No
Relative Aperture (F-stop) No
Focal Length (mm) 6mm
Color White
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Ac Adapter included No
Operation Voltage 12 - 15 Volt DC
Power consumption Amps No
Connector Type BNC Connector
Signal type No
Warranty 1 Year
UPC Code 840236100897
