Discontinued - Boyo Vision VTC431RB Wireless Reverse Back Up Camera System

Discontinued - Boyo Vision VTC431RB Wireless Reverse Back Up Camera System

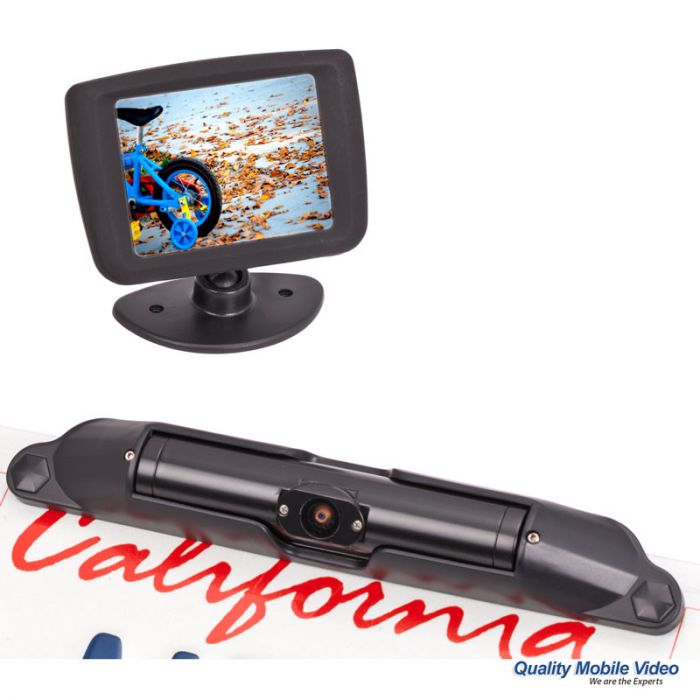

Boyo VTC431RB Wireless backup camera system - Detail of camera and monitor

More Views

Ships Free!

Overall Rating 4 (Based on 1 reviews)

Boyo VTC431RB Product Highlights

Discontinued - Boyo Vision VTC431RB Wireless Reverse Back Up Camera System
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 3 inch LCD monitor, Black License plate camera, Mounting hardware, Screw caps, 2 - Power filters, 18 foot RCA cable, Test leads, and Instruction manual

The Boyo VTC431RB wireless back up camera system is a simple to use and simple to install backup camera system. The advantage to the VTC431RB is that it is both a wired and wireless system and has the connections in the box for both. In large metropolitan areas wireless can occasionally become unreliable and a wired system is needed, that is where the VTC431RB shines, you can change the system to a wired system. The VTC431RB includes a black license plate camera and a 3 inch dash mount LCD monitor. As a wireless system, simply provide power to the monitor and camera and you are good to go! Included in the box is a test probe to make finding the proper wire very easy.

Boyo Vision VTC431RB Wireless Reverse Back Up Camera System features:

System features:

  • System can be configured as a wired or wireless system
  • System will automatic turn on when vehicle is placed in reverse
  • License plate mount back up camera makes adding this to any vehicle very easy
  • 130 degree viewing angle
  • Small dash mount 3" universal LCD monitor
  • Completely wireless video transmission
  • 2.4 Ghz analog transmission for excellent signal and distance
  • Should not be used on diesel vehicles due to glow plug interference
  • System comes with RCA cable in the event that you decide to hard wire because of wireless interference

Camera features:
  • Camera has adjustable vertical angle with set screw retention
  • Includes decorative caps for mounting hardware making theft difficult and a more pleasant look
  • Camera image Sensor: 1/3 DSP Color CCD for excellent color an night capabilities
  • Effective Pixels: 512 (H) x (582)
  • Horizontal Resolution: 420 TV Lines
  • Total number of pixels: 320k
  • Min. Illumination: .5 Lux at F2.0
  • Scanning System: 2:1 Interlaced
  • Video Output: 1Vp-p 75 Ohm
  • S/N Ratio: More than 48db
  • Electronic Iris: 1/50 to 1/1000
  • White Balance: Auto
  • Lens Mount: 2.8mm pinhole lens
  • Power source: 12vdc
  • Wireless Frequency: 2.4Ghz
  • Wireless Distance: 20 meters
  • Wide Angle: 130 degree
  • Power consumption: 100mA

Monitor Specifications:
  • Display resolution: 960(W) x 240 (H)
  • Screen size: 2.96" Diagonal
  • Working voltage: 10vdc - 15vdc
  • Power consumption: 8watts

Technical Specifications

Manufacturer Boyo
Part Number VTC431RB
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 960 x 240
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC only
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Audio Video Input
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera sensor diameter 1/3 inch
Viewing Angle 130 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type No
Wireless Transmission Wireless connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 705105194486

Customer Reviews

The best wireless system we have tested!
Review by
Install (5 star for easy)
Boyo has done a great job designing this system. The VTC431R is very versatile in that it supports both wired and wireless installations.

We frequently tell customers that it is difficult to recommend a wireless system. Certain areas make a wireless system virtually impossible. Vehicles also play an important part in how successful a wireless system will ultimately be. Commercial vehicles and Diesel vehicles make wireless systems nearly impossible to install due to EMI and RFI noise.

Boyo has taken care of that dilema with the VTC431R, you can initially install the system as a wireless one and see if the results are to your satisfaction. If not, you can change the installation to a hardwired one by simply running the neccessary wires.

The performance of the camera is outstanding due to the CCD sensor, picture is clear and the system is easy to use.
(Posted on 5/25/2011)
