Boyo VTK-MINI Miniature Key Hole Camera CMOS

Boyo VTK-MINI Miniature Key Hole Camera CMOS

Boyo VTK-MINI Miniature Key Hole Camera

More Views

Boyo
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Boyo VTK-MINI Product Highlights

  • Super compact car camera with multiple mounting options
  • Surface mount bracket for use with existing license plate mounting
  • Flush mount housing - recess the entire body of the camera in any surface
  • Reverse image for use as a back up camera or side camera
  • High sensitivity 1/4" color CCD image sensor for excellent color rendition and low light capabilities
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Back up camera, Surface mounting stand, Flush mount, Wiring harness, Mounting bolts, and Instruction manual

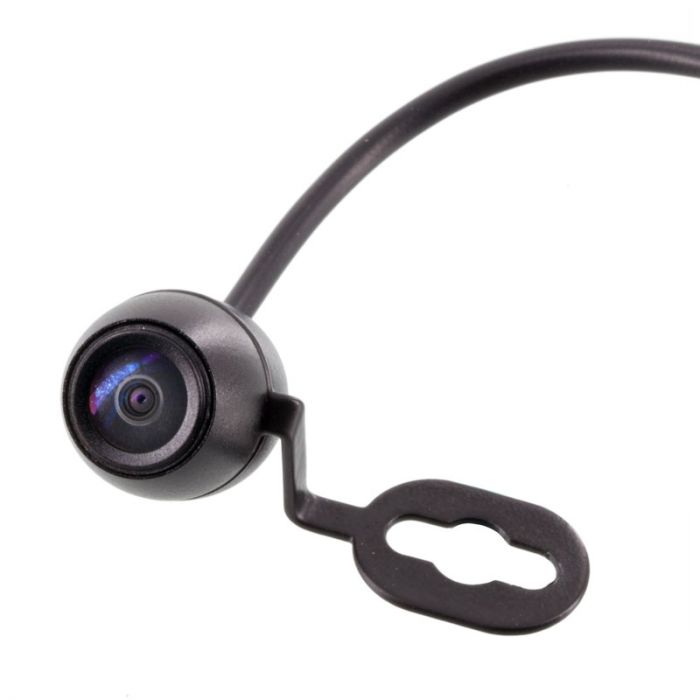

The Boyo VTK-mini car camera is the smallest camera we have. The camera is not much larger that a penny and can be mounted nearly anywhere. The VTK-mini includes a surface mount bracket that makes it very easy to mount the camera near a license plate and it also includes a flush mount bracket that allows you to recess that camera in any surface you need. The CCD sensor provides a brilliant image with excellent low light capabilities making it perfect for backup camera. The VTK-Mini is compact and hardly noticeable, add the safety and piece of mind to your vehicle.

Boyo VTKMINI Miniature Key Hole Camera:

Features:
  • Super compact car camera with multiple mounting options
  • Surface mount bracket for use with existing license plate mounting
  • Flush mount housing - recess the entire body of the camera in any surface
  • Reverse image for use as a back up camera or side camera
  • High sensitivity 1/4" color CCD image sensor for excellent color rendition and low light capabilities
  • 178° wide viewing angle for full picture view with minimal fish-eye
  • Remarkable low lux performance of 0.5 lux @ F2.0
  • IP67 rated for waterproof and weatherproof casing protects the camera from the elements


Image specifications
  • Image Sensor: 1/4" CCD
  • Effective pixels: 680 x 512
  • 540 TV lines horizontal resolution
  • Power source: 7V–14V DC @ .03 mA <1 Watt
  • Operating temp: -4°F–122°F
  • Up to 90% RH (non-condensing)
  • S/N Ratio: More than 50dB
  • Min.Illumination: 0.6 Lux at F2.0
  • Electronic shutter: 60 fps
  • Video output: 1Vp-p , 75ohm composite
  • Back light compensation: Yes
  • Iris: 1/50 - 1/1000
  • Storage Temperature: -40 to 80 Degree C
  • Working Temperature: -20 to 60 Degree C
  • Operating current: 180 mA


Dimensions:
  • Flush mount cutout diameter: 5/8" (D)
  • Flush mount dimensions: 3/4" (Outer Diameter) x 7/8" (Deep)
  • Surface mount dimensions: 9/16" (Outer Diameter) x 7/8" (Deep)

Technical Specifications

Manufacturer Boyo
Part Number VTK-MINI
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 180 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 689076305518

Customer Reviews

Very versatile cameras
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I purchased two of these to use on my side view mirrors and they work great. I used the little mounting tab to mount them directly to my exterior side view mirrors to protect against blindspots. My neck as I get older doesn't turn as well as it used to so I decided to get cameras to protect me when I make lane changes. These cameras have worked wonders. Thank you. (Posted on 6/26/2013)
