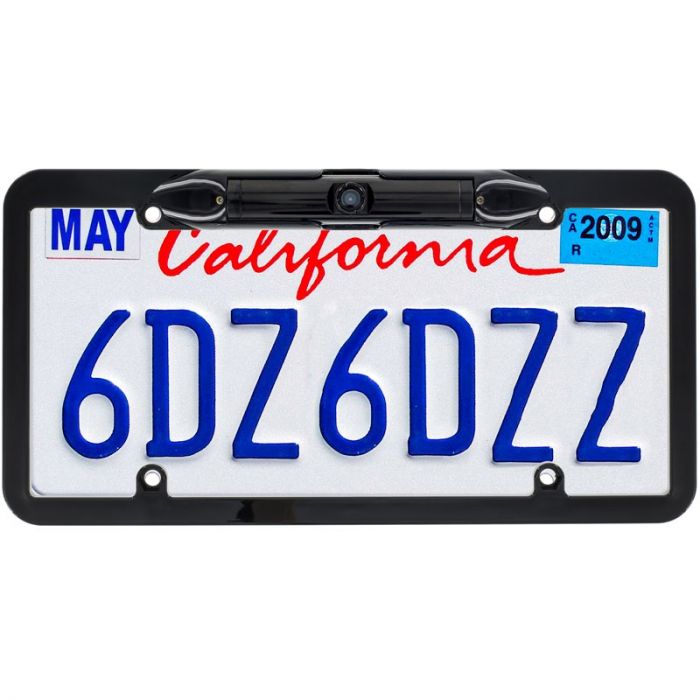

Boyo (Vision Tech) VTL120 Plastic Black License Plate Back Up Camera

Boyo (Vision Tech) VTL120 Plastic Black License Plate Back Up Camera

Boyo (Vision Tech) VTL120 Plastic Black License Plate Back Up Camera - Main

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Boyo VTL120 Product Highlights

  • Full Frame Camera
  • Low Light Sensitive
  • CCD Lens
  • Reverse Image
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Caps, and Instruction manual

Boyo VTL120 Plastic Black License Plate Back Up Camera features:
  • License Plate Camera "Plastic in Black"
  • High sensitive 1/3" DSP Color CCD built-in
  • 380,2011, TVL Horizontal Resolution
  • Remarkable True Color reproduction
  • Remarkable low Lux performance of 0.3 Lux at F2.0
  • Excellent Auto White Balance
  • Waterproof(IP67) Reverse Image
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels NTSC : 512(H)X492(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: NTSC: 270K
  • Minimum Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens (130˚ D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating current: 90mA w/regulated power in
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 108X22 (Camera)
  • Weight(Approx.g): 400g

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTL120
Auto Dimming No
Camera Sensor type CCD
Back up camera type License Plate Camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
