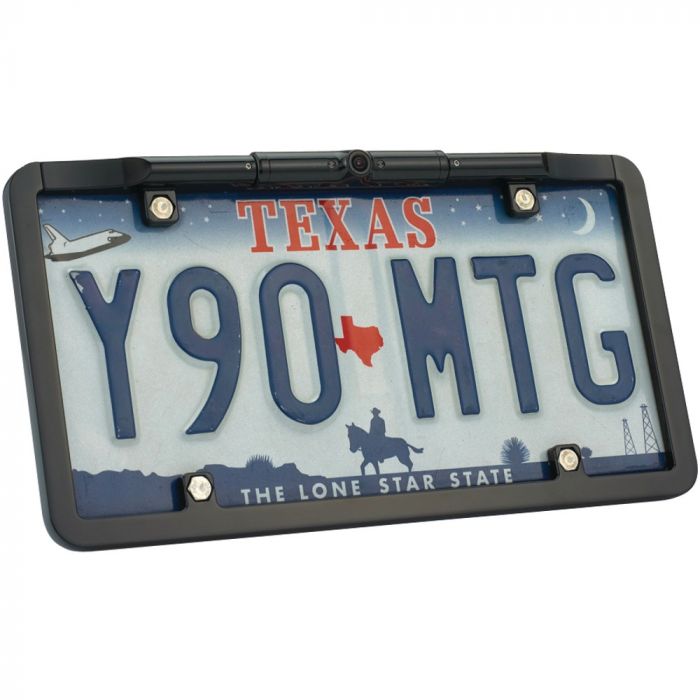

Boyo VTL375HD Ultra Slim Zinc Metal License Plate Camera (Black) CCD
$160.99
In stock
SKU
VTL375HD
Expert Knowledge
Talk to a specialist
- 175° viewing angle
- CCD Lens
- Optional non-reverse image
- Excellent auto white balance
Unit includes: Back up camera, Mounting bolts, Caps, and Instruction manual
Boyo VTL375HD Ultra Slim Zinc Metal License Plate Camera (Black) CCD
Instruction manual
Boyo VTL375HD Ultra Slim Zinc Metal License Plate Camera (Black) CCD
- High sensitive built-in 1/3" DSP color CCD
- 520 TV lines horizontal resolution
- Remarkable true color reproduction
- Remarkable low lux performance of 0.3 lux @ F2.0
- Excellent auto white balance
- Waterproof (IP67) reverse image
- Optional non-reverse image with separate adapter cable
- 175° viewing angle
- Black
- Imager: 1/3" DSP Color CCD, (High sensitive)
- Effective Pixels: NTSC : 768(H)X494(V)
- Horizontal resolution: 380,2011, TV Lines
- Total number of pixels: NTSC: 380,2011,K
- Min.Illumination: 0.3 Lux at F2.0
- Synchronizing system: Internal
- Scanning system: 2:1 Interlaced
- Video output: 1Vp-p 75 ohm composite
- S/N Ratio: More than 48dB
- Electronic iris: 1/50,1/60-1/100,000 sec.
- Smear effect: 0.005%
- Gamma correction: r = 0.45
- White balance: Auto.2100'K - 9100'K
- Gain control: Auto. 4dB - 30dB
- Lens mount: 1.56mm Board Lens (175Ëš D)
- MTBF: 80,2011,000 hours
- Power source: DC12V(Tolerance: 7V-24V)
- Built-in transient impulse protection circuit
- Operating current: 70mA w/regulated power in.
- Operating Temp: -4Ëš F~122Ëš F ( -20Ëš C~ + 50Ëš C )
- Storage Temp: -40Ëš F~176Ëš F ( -40Ëš C~ + 80,2011,Ëš C )
- Humidity: Within 90% RH
- Measurement: Camera Size: 3.70(L) x 0.63(D) (Camera)
- Weight (Approx.g): VTL375: 469.5g
Instruction manual
| Manufacturer | Boyo |
|---|---|
| Part Number | VTL375HD |
| Camera Sensor type | CCD |
| Back up camera type | License Plate Camera |
| Viewing Angle | 170 degrees |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
