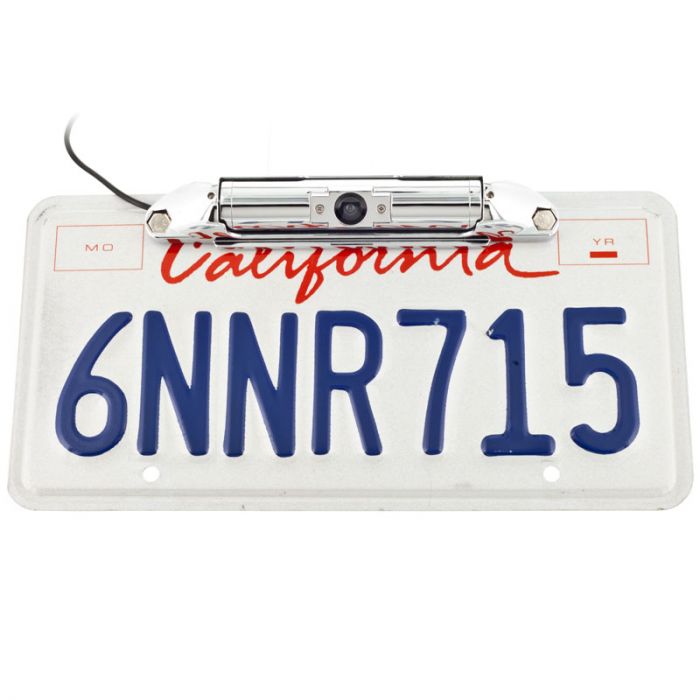

DISCONTINUED - Boyo VTL400C License Plate Mount Bar Type Back Up Camera (Bar Type in Chrome)
$74.99
Out of stock
SKU
40549
Expert Knowledge
Talk to a specialist
- 170º wide viewing angle
- Beautiful design & anti-scratch coating
- CMOS Lens
- Low Light Sensitive
Unit includes: Camera, Cables and Mounting hardware
Boyo VTL400C Bar Type License Plate Camera (Bar Type in Chrome)
Instruction manual
Boyo VTL400C Bar Type License Plate Camera (Bar Type in Chrome)
- High sensitive 1/4" DSP Color CMOS
- 380,2011, TVL Horizontal Resolution
- Remarkable low Lux performance of 0.3 Lux at F2.0
- 1.43mm lens 170 Degrees wide view angle
- Waterproof(IP67) Reverse Image
- 170º wide viewing angle
- Adjustable up/down
- Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
- Beautiful design & anti-scratch coating
- Imager: 1/3" DSP Color CCD
- Effective Pixels: NTSC - 512(H) X 582(V)
- Horizontal resolution: 380,2011, TV Lines
- Total number of pixels: 270K
- Min. Illumination: 0.3 Lux at F2.0
- Synchronizing system: Internal
- Scanning system: 2:1 Interlaced
- Video output: 1Vp-p 75 ohm composite
- S/N Ratio: More than 48dB
- Electronic iris: 1/50 to 1/1000 sec
- White balance: Auto.2100'K - 9100'K
- Lens mount: 2.8mm Pinhole lens
- MTBF: 80,2011,000 hours
- Power source: DC12V(Tolerance: 6V-35V)
- Operating Temp: -4° F~122° F ( -20° C~ + 50° C )
- Storage Temp: -40° F~176° F ( -40° C~ + 80,2011,° C )
- Water Proof: Ip67
- Wide Angle: 130°
- Input: 100mA
- Humidity: Within 90% RH
- Measurement: Camera Size: 108X22 (Camera)
Instruction manual
| Manufacturer | Boyo |
|---|---|
| Part Number | VTL400C |
| Camera Sensor type | CMOS |
| Back up camera type | License Plate Camera |
| Viewing Angle | 170 degrees |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Selectable |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Color | Chrome |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
