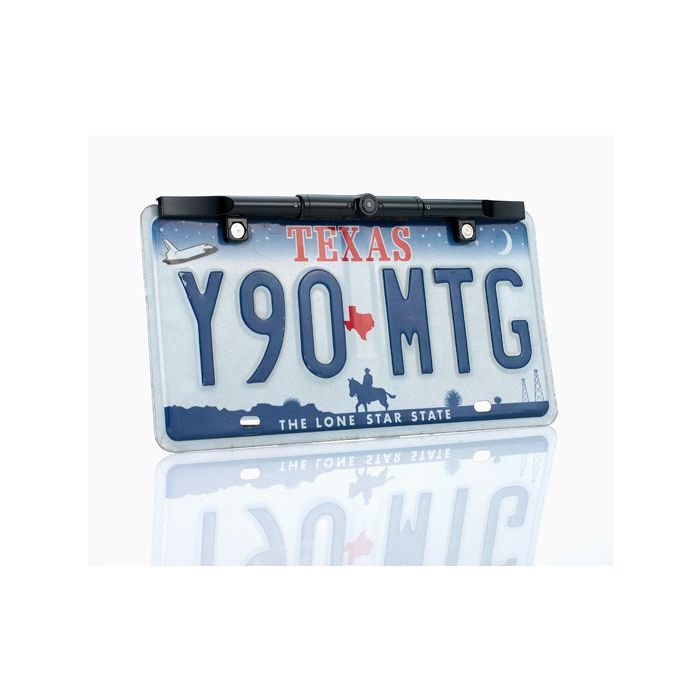

DISCONTINUED - Boyo VTL425 Ultra-Slim Metal Bar Type License Plate Camera Black Zinc
$139.99
Out of stock
SKU
VTL425
- Ultra slim frame
- CCD Lens
- 175 Degrees Viewing Angle
- Optional Non-Reverse image
Unit includes: Bar style back up camera, Wiring harness, Mounting bolts, Bolt caps and Instruction manual
Boyo VTL425 Ultra-Slim Metal Bar Type License Plate Camera Black Zinc
Instruction manual
Boyo VTL425 Ultra-Slim Metal Bar Type License Plate Camera Black Zinc
- 150 Wide Angle View
- Low Lux Performance Of .3 @ F2.0
- 380 Tv Lines Of Horizontal Resolution
- True Color Reproduction
- Auto White Balance
- Waterproof
- Viewing Angle Adjustable Up & Down
- Black Zinc
- Model: VTL425
- Imager: 1/3" DSP Color CCD, (High sensitive)
- Effective Pixels NTSC : 512(H)X492(V)
- Horizontal resolution: 380 TV Lines
- Total number of pixels: NTSC: 270K
- Min.Illumination: 0.3 Lux at F2.0
- Synchronizing system: Internal
- Scanning system: 2:1 Interlaced
- Video output: 1Vp-p 75 ohm composite
- S/N Ratio: More than 48dB
- Electronic iris: 1/50,1/60-1/100,000 sec.
- Smear effect: 0.005%
- Gamma correction: r = 0.45
- White balance: Auto.2100'K - 9100'K
- Gain control: Auto. 4dB - 30dB
- Lens mount: 2.8mm Pinhole lens (130Ëš D)
- MTBF: 80,000 hours
- Power source: DC12V(Tolerance: 6V-35V)
- Operating current: 90mA w/regulated power in
- Operating Temp: -4Ëš F~122Ëš F ( -20Ëš C~ + 50Ëš C )
- Storage Temp: -40Ëš F~176Ëš F ( -40Ëš C~ + 80Ëš C )
- Humidity: Within 90% RH
- Measurement: Camera Size: 108X22 (Camera)
Instruction manual
Manufacturer | Boyo |
---|---|
Part Number | VTL425 |
Camera Sensor type | CCD |
Back up camera type | License Plate Camera |
Viewing Angle | 170 degrees |
Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
Reverse Image | Selectable |
Infrared Illumination | No |
Built in Microphone | No |
Connector Type | RCA Cable |
Modulation | NTSC only |
Color | Black |
Warranty | 1 Year |
UPC Code | 689076047111 |
Return period | 30 days |
Exchange period | 30 days |
