Boyo VTM7002Q 7 inch Touchscreen LCD Monitor with 4 Way Quad screen

Boyo VTM7002Q 7 inch Touchscreen LCD Monitor with 4 Way Quad screen

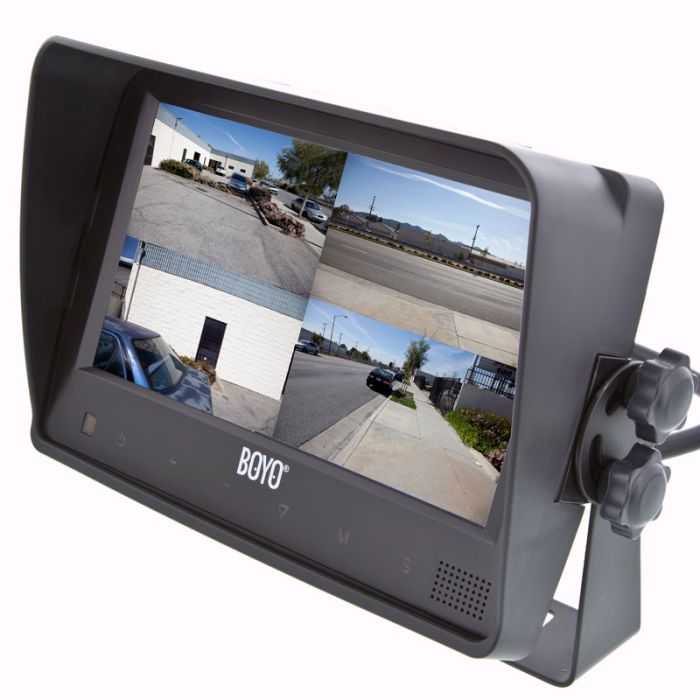

Boyo VTM7002Q 7 inch quad screen monitor - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTM7002Q Product Highlights

  • 7 inch commercial grade back up monitor
  • Quad screen to view all cameras at once
  • 4 camera inputs
  • 10-32 volt input
  • Touchscreen controls for all adjustments
  • Switchable Distance Grid
  • Day and Night Brightness Modes
  • LED Back Lighting
  • Built in speaker
  • Removable sun shade
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 7 inch LCD monitor, U bracket, Wiring harness, and Instruction manual

Boyo VTM7002Q 7 inch Industrial Touchscreen LCD Monitor with Built In 4 Way Quad screen features:
  • 7 inch Touch screen with "Finger-tip" operation.
  • Touch button for more convenient operation and longer durability.
  • With trigger wire for dual picture.
  • Priority of quad and dual picture can be selected.
  • Backup distance grid & left / right turning indicator arrow on the screen.
  • Day / Night brightness modes.
  • Brightness, color, contrast, volume etc. each camera can be separately set up.
  • Mirror / Normal image for each camera can be separately selected.
  • Single, dual, triple, quad-view and PIP functions.
  • On-board speaker.
  • Auto scan available and image switching time from 1~30 seconds.
  • Four trigger signal inputs: auto switch to the working camera.
  • Operates from 10-32 V, supplies power to cameras.
  • Full-function remote control.
  • Backlighting: LED
  • TV System:
  • NTSC / PAL
  • Resolution: 2400 (W) X 3 (RGB) X 480 (H)
  • Contrast: 500:1
  • Aspect ratio: 16:9
  • Power inputs: DC 10~32 V
  • Power consumption: Max. 25W
  • Power for cameras: Max. 4×300mA, 12V
  • Video inputs: 4 video inputs for cameras (peak value: 1Vp-p, impedance: 75 ohm)
  • Audio inputs: 4 audio inputs (peak value: 1Vp-p, impedance: 4700 ohm)
  • Video outputs: 1 REC video output (peak value: 1Vp-p, impedance: 75 ohm)
  • 1 LIVE video output (peak value: 1Vp-p, impedance: 75 ohm)
  • Audio outputs: 1 REC audio output (peak value: 1Vp-p, impedance: 4700 ohm)
  • Touch screen spec.:
  • Transmittance ≥ 80%
  • Operation pressure: 10~110g
  • Response time: <10ms
  • Dimensions with u-bracket: 8-3/4" (W) x 5-1/4" (H) x 1-1/4" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTM7002Q
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 400 Nit
Swivel Screen Yes
Touchscreen Yes
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Video Input
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 32 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 689076352314
