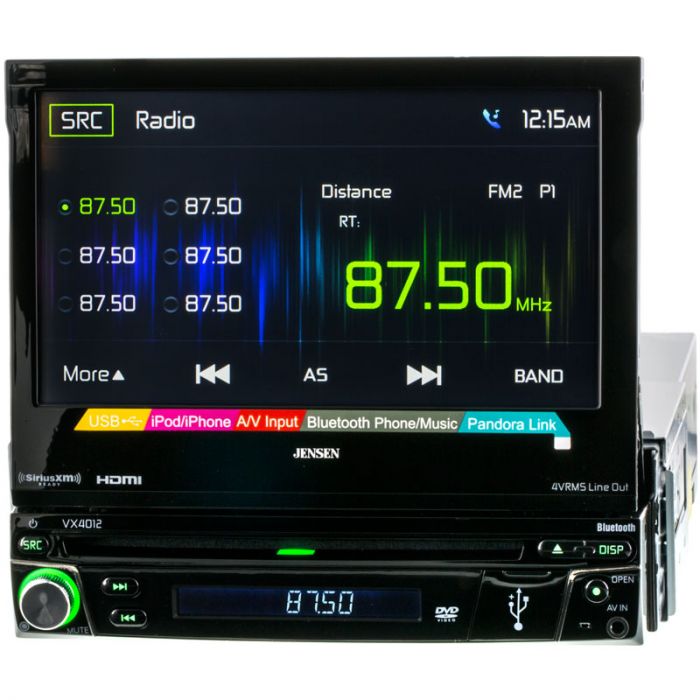

DISCONTINUED - Jensen VX4012 Single DIN In-Dash Flip-out Bluetooth DVD/CD/AM/FM Car Stereo w/ 7" High-res Touchscreen with HDMI
$246.99
Out of stock
SKU
VX4012
Expert Knowledge
Talk to a specialist
- Single DIN In-Dash Bluetooth CD/DVD receiver
- Bluetooth connectivity for Smart Phones for hands free calling, phone book access, music streaming
- Rear HDMI input
- Motorized 7 inch high resolution touch screen display
- Front USB and SD Inputs
- AM/FM tuner
- 10-band EQ
- Steering wheel control input
- Backup Camera Input
Unit includes: Single DIN Stereo, Wiring harness, Remote control, Mounting hardware, Bluetooth microphone and Instruction manual
Jensen VX4012 Single DIN In-Dash Flip-out Bluetooth Stereo
Media playback features:
Tuner features:
Power Ouput:
Inputs and outputs:
- Features:
- Single DIN In-Dash CD/DVD receiver
- Motorized 7 inch high resolution touch screen display
- Bluetooth connectivity for Smart Phones for hands free calling, phone book access, music streaming and A2DP music playback
- Variable button illumination for perfect matching of your factory button color
- App Connectivity for Android, Apple and BlackBerry
- 10-band equalizer with 8 preset tone curves
- 5 Selectable Wallpaper Backgrounds / User Up-loadable Wallpaper
- 5 Selectable UI colors
- Dimmer and brightness control
- AM/FM tuner
- Rear HDMI input
- Backup Camera Input
- Steering Wheel Control Input
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Front USB and Micro SD Card input
Media playback features:
- Plays CD, CD-RW, CD-R, MP3, WMA, AAC, and WAV files
- MP3/WMA/iTunes AAC/FLAC Audio Playback on CD/USB
- MP3 ID3 tag information, display artist and song information
Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- RDSB (Radio data service) Tuner
Power Ouput:
- Peak: 50 watts x 4 channels
- RMS: 17 watts x 4 channels
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- Bluetooth 3.0 certified
- Bluetooth 2.1+ EDR certified
- Bluetooth Auto Pairing
- Wireless Music Browsing
Inputs and outputs:
- 3 - 4V preamp outputs (Front, Rear and Subwoofer)
- 1 - Micro SD Card Slot
- 1 - Front USB connection
- 1 - Front 3.5 mm Audio Video input
- 1 - Rear HDMI input
- 1 - Backup Camera Input
- 1 - Video Output
- 1 - Sirius XM input
- 1 - Rear microphone input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/4"D x 2"H
| Manufacturer | Jensen |
|---|---|
| Part Number | VX4012 |
| Chassis Size | Single DIN |
| Illumination color | Full Color |
| Faceplate features | None |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| Audio Video inputs | 2 Audio Video Inputs |
| Audio Video Outputs | 1 Video output |
| USB input | Yes |
| SD Card input | Yes, microSD Card |
| Audio Formats | Mpeg-3, WMA |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 4 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | Low-pass |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | 043258305886 |
| Return period | 30 days |
| Exchange period | 30 days |
