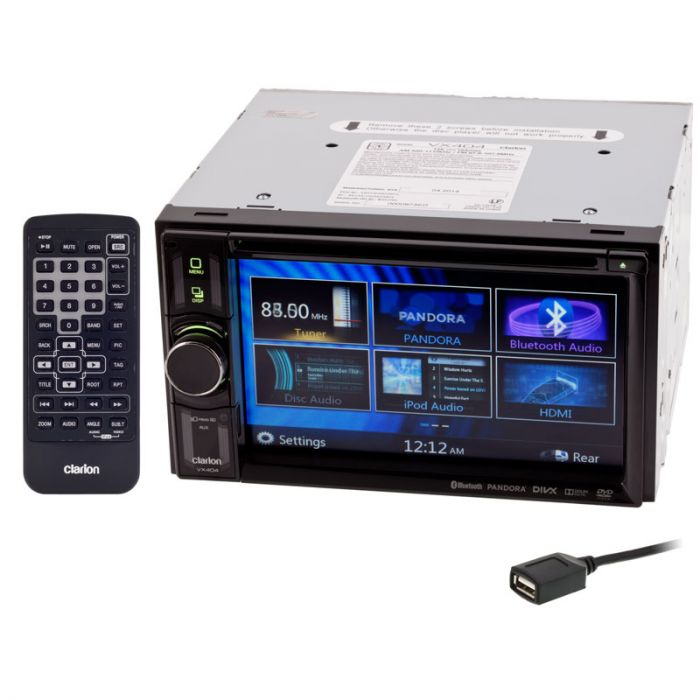

DISCONTINUED - Clarion VX404 Double DIN 6.2 DVD In Dash Car Stereo Receiver with Bluetooth, Pandora, USB, SD, and HDMI input
More Views
Clarion
Ships Free!
Clarion VX404 Product Highlights
- 6.2 inch Wide-screen Double DIN In-Dash LCD Touch screen monitor
- Built in DVD Player
- HDMI input for smart phones and other high definition sources
- Pandora streaming
- Built in Bluetooth for Telephone and audio streaming
- iPod audio interface control with standard USB to iPod cable
- Rear USC connection
- Front micro SD card slot
- MAGNA BASS EX boosts
- 3 band parametric Equalizer with 5 tone curves (4 preset + 1 user)
Frequently Bought Together
Overview
Unit includes: Double DIN Receiver, Mounting hardware, Audio Video output harness, Wireless Remote Control, Instruction manual and Limited Warranty Card
Clarion VX404 Double DIN 6.2 DVD In Dash Car Stereo Receiver with Bluetooth, Pandora, USB, SD, and HDMI input features:
Features:
Media playback features:
Audio features:
Tuner features:
Bluetooth features:
Inputs and outputs:
Optional Navigation features:(Requires seperate purchase)
Dimensions:
Clarion VX404 Double DIN 6.2 DVD In Dash Car Stereo Receiver with Bluetooth, Pandora, USB, SD, and HDMI input features:
Features:
- 6.2 inch Wide-screen Double DIN In-Dash LCD Touch screen monitor with optional NP401 GPS navigation
- Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
- Built in Microphone with optional external RCB199 External microphone
- LCD screen Resolution: 800 x 480 Pixels
- User selectable Full color LED Back-lit buttons
- User selectable background image with 4 presets
- High Power amplifier with Output: 4 channels x 40 watts Peak and 4 channels x 18 watts RMS
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- iPod audio interface control with standard USB to iPod cable
- iPod video interface control with optional CCA750 iPod cable
- Video Output for Rear Seat Entertainment
- Rear Vision Camera Composite Video Input
- OEM Steering Wheel Remote Ready
- Dual zone control - Rear seat occupants can listen and view a video while front occupants listen to the radio
- HDMI input for smartphone or other High definition source
- Display Function allows you to display the screen of a Mirroring compatible navigation app on the VX404's monitor screen. What’s more, to deliver entertainment along with information, audio playback is possible in the background
- Pandora internet radio compatible over Bluetooth or USB with Album art and song information including thumbs up and thumbs down song selections
Media playback features:
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, H.264, WMA, DivX, and AAC
- Region 1 DVD player
- Electronic shock protection with built in buffer
- MP3 / WMA / AAC / FLAC Audio Playback on CD/DVD/USB/SD Card
- ID3 tag information, display artist and song information
- H.264 / MPEG4 / DivX Video Playback on CD/DVD/USB/SD Card
Audio features:
- MAGNA BASS EX boosts the 50Hz range to deliver dynamic bass performance
- 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
- 3 band parametric Equalizer with 5 tone curves (4 preset + 1 user) Bass Boost mode, Impact mode, Excite mode, and Custom mode
- Low frequency adjustment with +/- 7 dB adjustment at: 50Hz, 100Hz, 200Hz frequency centers, Q-curve: 0.7, 1.0, 1.4, 2.0
- Mid frequency adjustment with +/- 7 dB adjustment at: 500Hz, 1kHz, 2kHz frequency centers, Q-curve: 0.7, 1.0, 1.4, 2.0
- High frequency adjustment with +/- 7 dB adjustment at: 5kHz, 10kHz, 15kHz frequency centers, Q-curve: 0.7, 1.0, 1.4, 2.0
- High-Pass filter with variable slopes and crossover frequencies. Selectable on/off at: 60Hz, 90Hz, 120 Hz
- Low-Pass filter with variable slopes and crossover frequencies. Selectable on/off at: 60Hz, 90Hz, 120 Hz
- Variable subwoofer level and phase control with selectable Low-Pass digital crossover filter 60Hz, 90Hz, 120 Hz
Tuner features:
- Includes AM & FM tuner with 24 preset stations memory (18 FM and 6 AM)
- HDRadio ready with THD400 Tuner
- SiriusXM radio ready with SXV200 Sirius XM tuner
Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports HFP, HSP, OPP, A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- HSP: Headset Profile enables the a Bluetooth headset to connect to a compatible mobile phone
- Built in microphone
- Optional External microphone with 10 foot cord for optimal placement
- Bluetooth 2.1 EDR+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
Inputs and outputs:
- 3 - Sets of 2V preamp outputs (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 1 - Rear RCA video output to connect to an external monitors
- 1 - Rear RCA Audio video input for connection to external source
- 1 - Front 3.5mm Audio video input for connection to external source
- 1 - Front Micro SD card input accepts up to a 32Gb
- 1 - Rear HDMI input
- 1 - Rear USB connection accepts up to a 32Gb
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Direct connect for iPod with cable - Full on screen control see above for cables
Optional Navigation features:(Requires seperate purchase)
- Navigation ready - Nav sold separately
- Requires Clarion NP401 add-on navigation
- Clarion NP401 add-on navigation has mapping information with US, Alaska, Hawaii, Canada, and Puerto Rico
- Clarion NP401 offers hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
- Clarion NP401 offers 12 million points of interest
Dimensions:
- Double DIN chassis
- Dimensions: 7"W x 6-7/8"D x 4"H
Technical Specifications
| Manufacturer | Clarion |
|---|---|
| Part Number | VX404 |
| Chassis Size | Double DIN |
| Faceplate features | None |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| LCD Screen Size | 5 inch - 6 inch |
| Illumination color | Full Color |
| LCD Screen Brightness | 400 Nit |
| Swivel Screen | No |
| Touchscreen | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 800 x 480 |
| Front camera input | N/A |
| Back up camera input | Yes |
| Audio Video inputs | 1 Audio Video Input |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| Audio Video Outputs | 1 Audio/Video output |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Dual Zone Control | Yes |
| iPod Audio Connection | Yes, via USB |
| iPod Video Connection | Yes, via USB |
| SD Card input | Yes, SD Card |
| USB input | Yes |
| HDMI input | Yes |
| HDMI output | No |
| Pandora Streaming | Yes |
| Smartphone Compatible | Yes |
| Smartphone Technology | N/A |
| Modulation | NTSC and PAL |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Video Formats | Divx, H.264, JPEG, MPEG-1, MPEG-2, MPEG-4 |
| MP3 Playback | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | N/A |
| HD Radio | Optional |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Navigation | Optional |
| GPS Maps | No |
| Text to Speech | No |
| Traffic Tuner | No |
| Points of Interest | No |
| Integration Module | N/A |
| Steering Wheel Control Input | Yes, requires external module |
| Wireless Remote Control | Yes |
| TV Tuner | No Tuner |
| VGA input | No - VGA input |
| Operation Voltage | 12 - 15 Volt DC |
| Warranty | 1 Year |
| Vehicle Year | No |
| Vehicle Brand | No |
| Vehicle Model | No |
| UPC Code | 729218020685 |
Write Your Own Review
Ask questions receive answers.
Posted by , Saturday, June 12, 2055
Question:
Will this Double Din radio fit my vehicle?
Answers:
-
Posted by on Wednesday, June 13, 2018A:
- The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
- To check the size you can visit www.metraonline.com
- Enter your vehicle information in the section labeled Vehicle Fit Guide
- If a Double DIN dash kit is available you can use this radio.
- Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
- Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
- Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
- Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
- You can also call, email or chat with us and we can select the right installation items for your vehicle.
1
Answer
Posted by , Friday, July 24, 2015
Question:
I havea 2003 Chevy Tahoe with the Bose stereo. Will this work with my existing wiring and speakers? What other components will I need to install this, like a fit kit and a wiring harness
Answers:
-
Posted by on Friday, July 24, 2015A: This item is no longer available. It has been discontinued.
