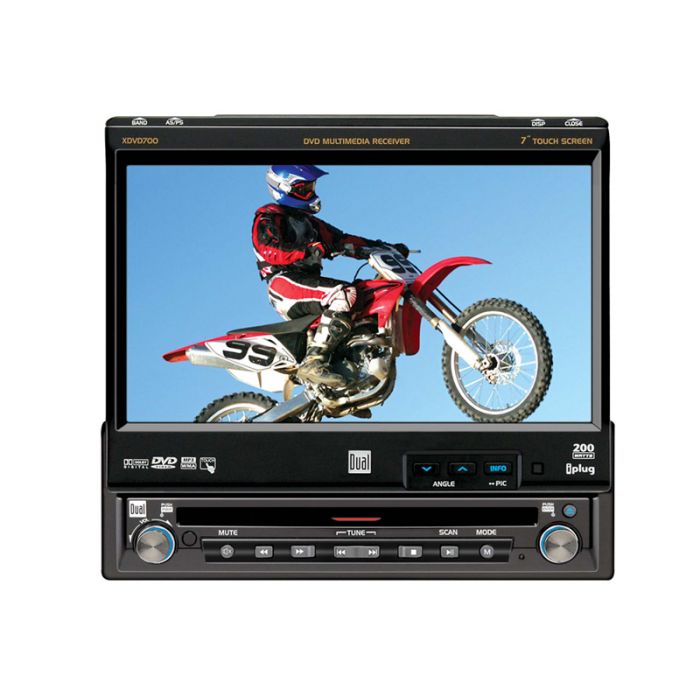

DISCONTINUED - Dual XDVD700 7 inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPlug Interface Adapter
$320.99
Out of stock
SKU
32407
Expert Knowledge
Talk to a specialist
Dual XDVD700 7 inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPlug Interface Adapter
DISCONTINUED ITEM - NOT AVAILABLE - ASK FOR SUBSTITUTE PRODUCT
Unit includes: Remote Control
Dual XDVD700 7 inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPlug Interface Adapter
Unit includes: Remote Control
Dual XDVD700 7 inch In Dash Touch Screen Single DIN Motorized TFT LCD Monitor and Multimedia DVD Receiver with iPlug Interface Adapter
- General Features
- 1.0 DIN chassis (all-in-one)
- Import ISO/DIN mountable
- Internal cooling fan
- Motorized touch screen monitor
- 7" TFT active matrix LCD
- 16:9 Widescreen format
- Electronic volume, bass, treble, balance and fader
- Rotary encoder controls
- Keyless disc eject
- 3 Pairs of preamp outputs (F/R/S)
- 1 Composite video output (RCA)
- 1 Pair audio inputs (RCA)
- iplug™ interface cable
- Blue/white dot matrix display
- 24 Bit D/A converter
- Infrared remote control
- Multimedia
- DVD-R/RW/DVD+R/RW/CD-R/CD-RW compatible
- MP3/WMA encoded CD/DVD playback
- Direct track access
- Last position memory
- Random/repeat/play/pause
- High-speed track search
- On screen display
- ESP buffer
- Subtitle
- Angle
- Zoom
- Receiver
- AM/FM Tuner
- US/European frequency spacing
- 48 Station presets (36FM/12AM)
- Auto station store
- Preset scan
- One-touch memory
- Local/distance
- DVD Player Specifications
- Frequency response: 10Hz-20kHz
- Channel separation @ 1kHz: >60dB
- D/A converter: 24 Bit
- FM Tuner Specifications
- Tuning range: 87.5MHz-107.9MHz
- Usable sensitivity: 8.5dBf
- 50dB quieting sensitivity: 10dBf
- Stereo separation @ 1kHz: 40dB
- Frequency response: 30Hz-13kHz
- AM Tuner Specifications
- Tuning range: 530kHz-1710kHz
- Usable sensitivity: 22uV
- Frequency response: 30Hz-2.2kHz
- Monitor Specifications
- Panel size: 7” (177.8 mm) diagonal measurement
- View angle (up/down/left/right): 30/60/60/60
- Resolution: 480 W x 234 H
- Brightness (cd/m2): 300
- Contrast ratio: 300:1
- Elements: 336,960
- General Specifications
- Operating voltage: 11-16 VDC, negative ground
- Speaker output impedance: 4~8 ohms
- Line output voltage: 2 Volts
- Line output impedance: 200 ohms
- Chassis dimensions: 7" x 7" x 2" (178 x 178 x 51 mm)
- XDVD700 Instruction Manual
- Video
| Manufacturer | Dual |
|---|---|
| Part Number | XDVD700 |
| Chassis Size | Single DIN |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| LCD Screen Size | 7 inch - 8 inch |
| LCD Screen Brightness | 300 Nit |
| Touchscreen | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 480 x 234 |
| Audio Video inputs | 1 Audio Video Input |
| Front mounted auxiliary input | 3.5 mm audio input |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| NFC (Near Field Communication) | No |
| Wireless Remote Control | Yes |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
