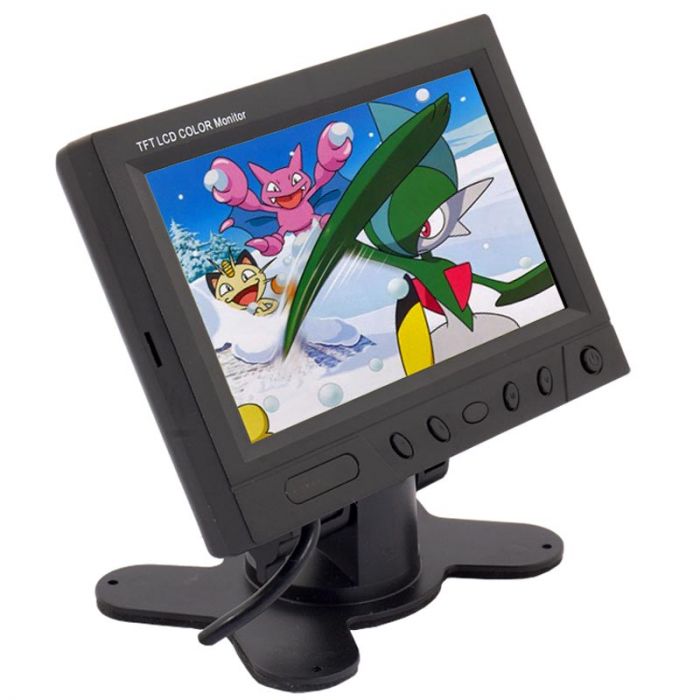

DISCONTINUED - Zicom ZH58P3 5.8 inch Widescreen LCD Monitor with Shroud and Stand

76% of 100
Out of stock

Key Features

This item has been discontinued.
Click here for new model.

Unit includes: Remote Control

Zicom ZH58P3 5.8 inch Widescreen LCD Monitor with Shroud, Stand and IR Infrared Headphone Transmitter
  • 5.8 inch Widescreen TFT LCD monitor with pedestal stand and flush mount shroud
  • Triggered video input for auto turn on and input selection for back up camera use
  • Flush mount shroud for panel or headrest mounting
  • Includes pedestal stand for top of dash mount
  • IR Remote Control
  • Mini Plug for Easy Wire Routing
  • Resolution: 480 x 234 RGB
  • Power Source: 12V DC
  • Power Consumption: < 7W
  • Operating Temperature: 32° - 140° Fahrenheit
  • Storage Temperature: -4° - 176° Fahrenheit
  • Dimension with shroud (Exterior): 7" (W) x 5-1/4" (H) x 1-1/8" (D)
  • Dimension with shroud (Cutout): 6-3/8" (W) x 4-5/8" (H)
  • Dimension without shroud: 6" (W) x 4-3/8" (H) x 1" (D)
    Inputs and outputs
  • 2 - RCA video inputs
  • 1 - 12 volt trigger input
  • 1 - 12 volt DC power input (power and ground)
More Information
Manufacturer Accelevision
Part Number ZH58P3
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Video Inputs
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included Yes
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code 736836541010
Return period 30 days
Exchange period 30 days
