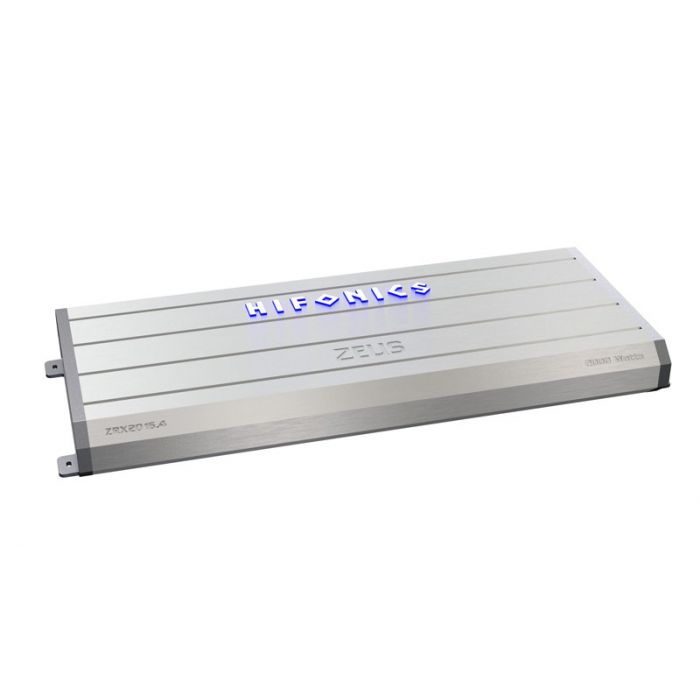

DISCONTINUED - Hifonics ZRX2016.4 Zeus Series 2000 Watts Class AB 4-Channel Amplifier

Rating:
88% of 100
$234.99
Out of stock
SKU
ZRX2016.4

Key Features

  • ZRX2016.4 Zues ZRX Series 4-Channel Class-AB Amplifier with 2000 Watts of power!
  • SPC (Simpatico coil) and Pulse Width Modulated MOSFET power supply
  • LED indicators: blue for power and red for protect
  • Bass boosts from 0 to +10dB at 45 Hz
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Requires 4 gauge power and ground wiring for installation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • 4 ohms: 250 watts x 4 channel
Unit includes: Unit includes: Class AB 4-Channel Car Amplifier, Bass control knob, Extension cable, Mounting hardware, and Instruction manual

Hifonics ZRX2016.4 Zeus Series 2000 Watts Class AB 4-Channel Amplifier
    Features:
  • Zues ZRX Series 4-Channel Class-AB Amplifier with tons of power!
  • Designed with SPC (Simpatico coil) and Pulse Width Modulated (PWM) MOSFET power supply for high current levels
  • Military grade PCB construction
  • LED indicators: blue for power and red for protection
  • Includes wired HFR-3 remote bass level control
  • Equipped with soft start turn-on that helps reduce the load and makes start-up easier
  • Maximum Power output is 2000 watts
  • 4-Channel channel operation
  • 4 / 3 / 2 Channel modes for ultimate flexibility
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Low Level RCA Inputs and Outputs
  • High Level speaker inputs, no need for line output converters
  • Requires 4 gauge power and ground wiring for installation
  • Input sensitivity is 200 mV to 6V (variable level)
  • Variable low-pass filter: 30-250 Hz, 24 dB/ octave
  • Variable high-pass filter: 60-1200 Hz, 24 dB/ octave
  • Bass EQ boosts from 0 to +12dB at 45 Hz
  • Frequency response: 10 Hz - 45 KHz
  • Signal to Noise ratio: >90dB
  • Total Harmonic Distortion: <0.05%
  • Damping factor is greater than 200 and frequency response is 15-250 Hz
  • 2000 Watts Class AB Mono Block Zeus Series Amplifier for Vehicles
  • Dimensions: 22" (L) x 2-7/16" (H) x 10" (W)

Maximum Power Rating:
  • 4 ohms: 250 watts x 4 channel
  • 4 ohms: 1000 watts x 2 channel bridged
  • 2 ohms: 500 watts x 4 channel


More Information
Manufacturer Hifonics
Part Number ZRX2016.4
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
CEA2006 Compliant No
UPC Code 806576223832
Return period 30 days
Exchange period 30 days
