2004-2013 Ford F-150 / 2008 - 2013 Super Duty Rear View Back Up Cameras - Complete Kit 1008-9520 1008-9525

2004-2013 Ford F-150 / 2008 - 2013 Super Duty Rear View Back Up Cameras - Complete Kit 1008-9520 1008-9525

Quality Mobile Video 1008-9520 Ford F-150 Rear view camera system - Main

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video 1008-9525 Product Highlights

  • Complete Plug & Play back up camera system
  • Fits 2004 - 2013 Ford F-150 / 2008 - 2013 Super Duty
  • 26 page Step-by-step detailed installation manual
  • Replacement tailgate handle backup camera
  • OEM rearview mirror monitor
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

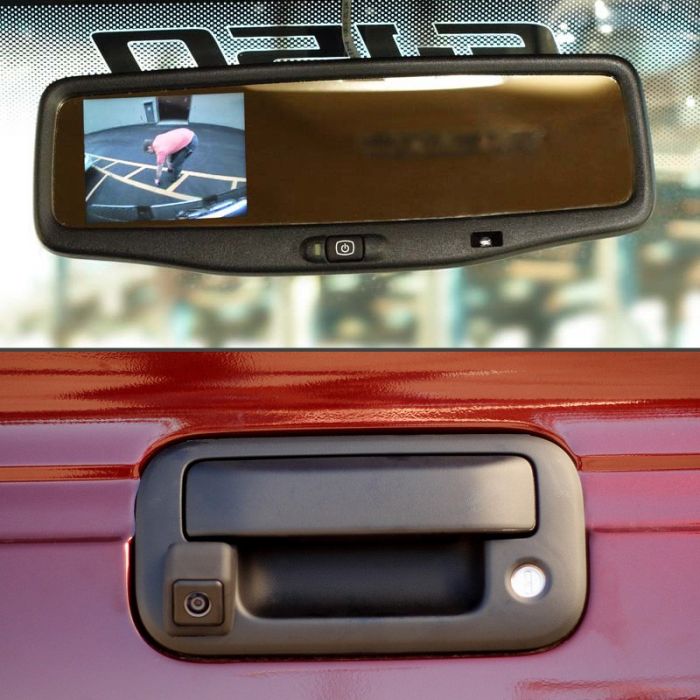

See what you've been missing (or hitting) with this complete integrated backup camera and 3.5" LCD display rearview mirror for your F-series vehicle. Includes identical replacement rear-view mirror for your Ford vehicle (with no loss of vehicle features) and factory replacement tailgate bezel with integrated Panasonic OEM-grade color camera.

Protect your loved ones and your vehicle from back up accidents

You value your F-series Truck, and your family and loved ones more. A quality rear vision system will protect both. This is a factory-original Ford Rear Vision System and it's available only from your dealer or through Brandmotion. When you put your vehicle in reverse, the replacement rearview mirror displays a bright 3.5" LCD that provides a complete view of everything behind your vehicle, with high-resolution Panasonic wide-angle camera. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera, shielded harnesses, and detailed instructions. Can be installed in 60-90 minutes. Professional installation is recommended.

Key Benefits:
  • High quality, OEM approved components and construction
  • No loss of features in your current mirror or vehicle
  • Auto dimming mirror
  • Large 3.5" color backup monitor displays vividly when you put your vehicle in reverse
  • One year warranty
  • 3.5" TFT LCD Mirror Monitor
  • High Resolution Display
  • Auto Dimming
  • 1/4" Panasonic CCD Color Camera
  • 3 Lux For Illumination & Sharper Image
  • Color Image w/Automatic White Balance
  • Electronic Auto Iris
  • 150 Degree Horizontal and 100 degree Vertical Lens with Excellent Depth of Field
  • Waterproof Case w/Anti-fog Lens

This product is compatible with all 2004-2013 Ford F-150 pickup trucks, and 2008-2013 Ford SuperDuty vehicles (F-250, 350, 450).

Technical Specifications

Manufacturer Quality Mobile Video
Part Number 1008-9525
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Audio Video Input
Wireless Remote Control No
Monitor Type Rearview mirror monitor
Mirror Mount Type Glass Mount
Back up camera type Vehicle Specific Camera
Options No
Product Options No Compass and Temperature Guage
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera sensor diameter 2.96 mm
Viewing Angle 150 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 5 Pin Connector
Wireless Transmission Wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year 2008, 2009, 2010, 2011, 2012, 2013
Vehicle Brand Ford
Vehicle Model F-150
UPC Code No

Write Your Own Review

You're reviewing: 2004-2013 Ford F-150 / 2008 - 2013 Super Duty Rear View Back Up Cameras - Complete Kit 1008-9520 1008-9525

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Fits the following vehicles:
  • 2008
  • Ford
  • F-150
  • 2009
  • Ford
  • F-150
  • 2010
  • Ford
  • F-150
  • 2011
  • Ford
  • F-150
  • 2012
  • Ford
  • F-150
  • 2013
  • Ford
  • F-150
