Quality Mobile Video 2009-2012 Dodge Ram Rear View Back Up Camera - Complete Kit 1009-9517

Quality Mobile Video 2009-2012 Dodge Ram Rear View Back Up Camera - Complete Kit 1009-9517

2009-2011 Dodge Ram Rear View Back Up Camera - Views

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video 1009-9517 Product Highlights

  • Complete back up camera system for Dodge RAM trucks
  • Fits 2009-2012 Dodge Ram
  • 3.5 inch rear view mirror monitor
  • OEM Camera in the tailgate handle
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

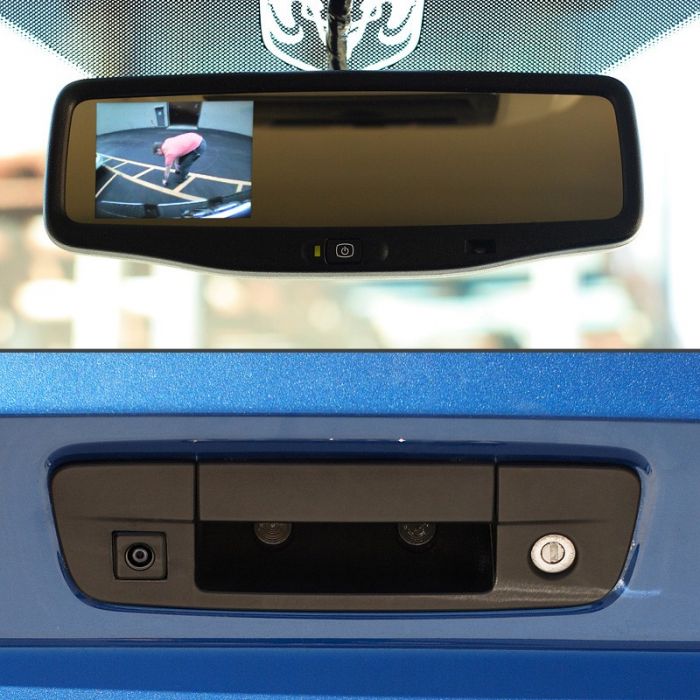

Add the piece of mind and safety to your 2009-2012 Dodge RAM pickup with this complete integrated backup camera and 3.5” LCD display rearview mirror. Includes identical replacement rear-view mirror with no loss of vehicle features, factory-replacement tailgate handle with integrated Panasonic OEM-grade color camera, and all vehicle harnessing.

Identical to Factory Equipment — For Hundreds Less You've decided to add the safety and resale-enhancing value of rear vision to your Dodge RAM truck, but you want it done right. You've invested hard-earned money in your truck, why compromise now with inferior one-size-fits-all aftermarket-grade components? Only carries the factory-original authentic Rear Vision System for your 2009-2011 Dodge RAM pickup. Until now, the only way you could obtain this system was to order it with a new Dodge truck, and then, only by spending thousands of dollars on an expensive an upgraded media package or factory navigation radio. Now, this same kit is available through

A Large Truck Needs a Large Backup Image When you put your truck in reverse, the OEM-grade replacement Rearview Mirror displays a bright 3.5" LCD that provides a complete view of everything behind your vehicle, thanks to the high-resolution Panasonic wide-angle camera built into a factory original replacement tailgate handle. Compatible with all 2009-2012 Dodge RAM models*. This kit comes complete with factory original upgrade mirror, factory tailgate bezel with integrated Panasonic wide-angle camera and tailgate lock option, shielded harnesses, and detailed instructions. Can be installed in 60-90 minutes. Professional installation is recommended.

*If your truck has the optional UConnect hands-free phone system, you'll need to add our factory-approved external microphone 5000-PESM to avoid loss of functionality.

Key Benefits:

  • Identical to the system available from your Dodge dealer (available on new vehicles only)
  • High quality, OEM approved components and construction
  • No loss of features in your current mirror or vehicle
  • Attractive low profile surface-flush camera integration design
  • Auto dimming mirror
  • Large 3.5” color backup monitor displays vividly when you put your truck in reverse
  • Everything you need in one complete kit
  • One year warranty
  • 3.5" TFT LCD Mirror Monitor
  • High Resolution Display
  • Display on/off button
  • Auto Dimming
  • 1/4" Panasonic CCD Color Camera
  • 3 Lux For Illumination & Sharper Image
  • Color Image w/Automatic White Balance
  • Electronic Auto Iris
  • 150 Degree Horizontal and 100 degree Vertical Lens with Excellent Depth of Field
  • Waterproof Case w/Anti-fog Lens


This product is compatible with all 2009-2012 Dodge RAM vehicles. If your vehicle has the factory UConnectTM hands free phone system, you will need to also purchase the factory replacement microphone to replace the microphone that is built into your factory mirror (good news: in our tests this microphone actually performs better than the factory microphone).

Technical Specifications

Manufacturer Quality Mobile Video
Part Number 1009-9517
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 500 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 1 Audio Video Input
Wireless Remote Control No
Monitor Type Rearview mirror monitor
Mirror Mount Type Glass Mount
Back up camera type Vehicle Specific Camera
Options No
Product Options No Compass and Temperature Guage
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera sensor diameter 2.96 mm
Viewing Angle 150 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 5 Pin Connector
Wireless Transmission Wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year 2009, 2010, 2011, 2012
Vehicle Brand Dodge
Vehicle Model Ram 1500, Ram 2500, Ram 3500
UPC Code No

Write Your Own Review

You're reviewing: Quality Mobile Video 2009-2012 Dodge Ram Rear View Back Up Camera - Complete Kit 1009-9517

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Ernest Foster, Thursday, May 30, 2013


Will this fit the 2013 Dodge Ram crew cab? My mirror has the built in speakers, so I would also need the extra harness for that.


  • Posted by Salvador Diaz on Thursday, May 30, 2013

    Built in Speaker? or Built in Microphone?

Please login to ask a product question

Fits the following vehicles:
  • 2009
  • Dodge
  • Ram 1500, Ram 2500, Ram 3500
  • 2010
  • Dodge
  • Ram 1500, Ram 2500, Ram 3500
  • 2011
  • Dodge
  • Ram 1500, Ram 2500, Ram 3500
  • 2012
  • Dodge
  • Ram 1500, Ram 2500, Ram 3500
Quality Mobile Video
Ships Free!
Your Price: $699.99
$0.00 Tax Outside CA
Item sku:1009-9517
Availability:In stock
