Metra 108-FD5CH Double DIN Car Stereo Dash Kit for 2015 - and Up Ford Mustang for Pioneer's DMH-C5500NEX Multimedia Receiver

$551.99
In stock
SKU
108-FD5CH

Key Features

  • Fits 2015 - and Up Ford Mustang with factory 4.3 inch screen
  • Designed SPECIFICALLY for the Pioneer DMH-C5500NEX 8-inch modular stereo
  • Touchscreen display for climate and personalization features
  • Included interface for climate and steering wheel functions
  • Integrated passenger airbag indicator
  • Double DIN Radio provision for easy installation of car radios
  • High-grade ABS plastic construction
  • Painted matte black
Unit Includes: Radio trim panel (with touchscreen display), Radio brackets, Engine start/stop circuit board and cover, Engine start/stop trim, (6) Phillips screws, (4) Panel clips, USB cable, HVAC interface and wiring harness (not shown), Antenna adapter (not shown), and Installation manual

Metra 108-FD5CH Double DIN Car Stereo Dash Kit for 2015 - and Up Ford Mustang for Pioneer's DMH-C5500NEX Multimedia Receiver
    Features:
  • Fits 2015 - and Up Ford Mustang with factory 4.3 inch screen
  • Designed SPECIFICALLY for the Pioneer DMH-C5500NEX 8-inch modular stereo
  • Touchscreen display for climate and personalization features
  • *Included interface for climate and steering wheel functions
  • Integrated passenger airbag indicator
  • Double DIN Radio Provision for easy installation of car radios
  • High-grade ABS plastic construction
  • Painted matte black
  • Metra Install kits are manufactured from OEM quality ABS plastic designed to leave no gaps between the dash and the kit.

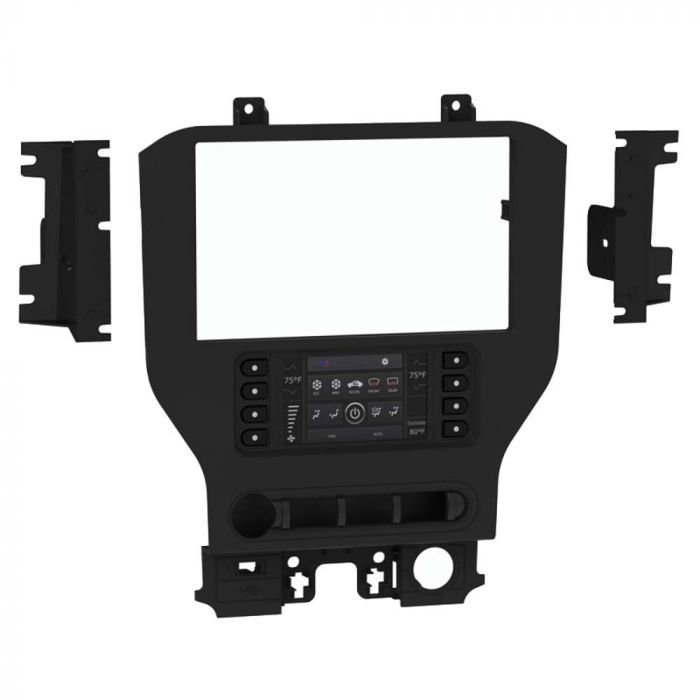

    Kit Components:
  • A) Radio trim panel (with touchscreen display)
  • B) Radio brackets
  • C) Engine start/stop circuit board and cover
  • D) Engine start/stop trim
  • E) (6) Phillips screws
  • F) (4) Panel clips
  • G) USB cable
  • H) HVAC interface and wiring harness (not shown)
  • I) Antenna adapter (not shown)
    • Interface Features:
    • Provides accessory power (12-volt 10-amp)
    • Retains R.A.P. (retained accessory power)
    • Provides NAV outputs (parking brake, reverse, speed sense)
    • Retains audio controls on the steering wheel
    • Retains safety chimes
    • Retains the factory backup camera
    • Retains the factory AUX-IN jack
    • Can be used in both amplified and non-amplified models (including Sony)
    • Retains balance and fade (excluding Sony)
    • Micro-B USB updatable
        Vehicle Applications:

        Ford
      • 2015 - 2019 Ford Mustang
More Information
Manufacturer Metra
Part Number 108-FD5CH
Chassis Size Double DIN
Color Black
Warranty 1 Year
Vehicle Year 2015, 2016, 2017, 2018, 2019, 2020
Vehicle Brand Ford
Vehicle Model Mustang
UPC Code 086429395798
Return period 30 days
Exchange period 30 days
